Uses of Large Spur Gear in Power Transmission Systems

For heavy-duty mechanical power transfer between parallel shafts, industrial power transfer systems use large Spur Gear units. These strong components have straight, parallel-to-rotating teeth. This lets them transfer enormous torque loads without axial thrust. These gear systems solve mining, aerospace, and heavy industrial machinery transmission problems. Production success depends on reliability, load capacity, and usability.

​

Understanding Large Spur Gears and Their Role in Power Transmission

Large Spur Gears are the simplest mechanical gears. But their simplicity hides power and complexity. YIZHI MACHINERY says these elements underpin power transfer systems in numerous industries.

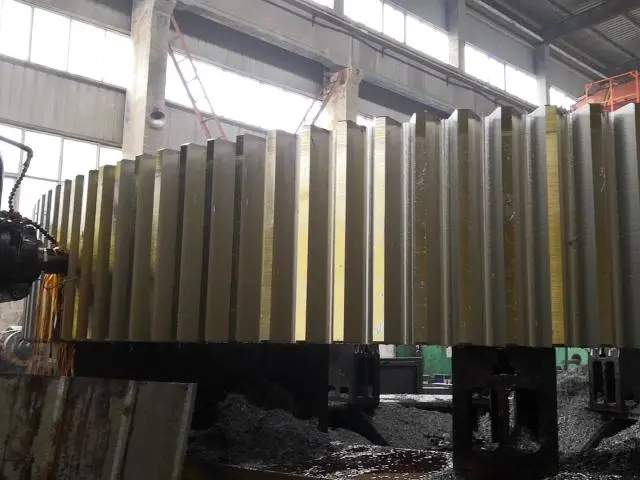

What Defines a Large Spur Gear?

Large spur gears have teeth parallel to the gear plane and diameters beyond 500 mm. Spur gears link to another gear with straight teeth, unlike helical gears. This physical characteristic offers various benefits. YIZHI Makes 0.5-to-50-tooth Gear Modules. These fit precision devices and huge industrial drives. These parts were made from stress- and wear-resistant alloy steels such 42CrMo, AISI4140, 18CrNiMo7, and SAE4340. Mines need different metallurgy than planes.

Design Principles Behind Effective Power Transmission

When the mesh is engaged, spur gear teeth maintain velocity ratio with an involute curve. This scientific accuracy predicts power transfer. Job-specific ISO 5-6 and 8-9 precision grades are used by our engineers. High-quality grades reduce transfer error and vibration, improving bearing life and silence. Pressure angle (usually 20 degrees), addendum, dedendum, and tooth width are regulated by tooth profile guidelines. These factors impact stress and load capability. At YIZHI MACHINERY, we use powerful CNC gear machining centers and fully automatic gear grinding machines to achieve micron-level tolerances and ensure tooth form compliance. Surface treatments are crucial to gear durability. We carburize, cool and temper, and induction harden to make the surface 45–50 HRC to 58–62 HRC while keeping the core robust and flexible. This hardness gradient reduces shock-induced tooth wear and pitting. Also prevents tooth breaking. Our massive gears' 4–6 mm case diameter allows for heavy wear.

Material Selection for Durability and Performance

Material choice is vital while choosing gear. High-quality steel comes in 12 kinds for specialized uses. 20CrMnTi is good for hard-case carburizing. It suits mining crushers with heavy dust and impact loads. 40CrNiMo and SAE4340 are good for high-strength-to-weight aircraft due to their tensile and fatigue resistance. We prefer 18CrNiMo7 for corrosive marine and port equipment because it hardens and preserves shape. Steel rolling mill operators require AISI8620 for its case hardness and core strength to withstand high pressure loads during metal production.

Major Uses of Large Spur Gears in Power Transmission Systems

Large Spur Gear technology is always used by industries that need to send power in the most difficult ways. In this section, I will show you the main situations where these parts are essential.

Mining and Mineral Processing Operations

Mines require mechanical tools. Rock ball mills use several-meter-wide Spur Gear units, or girth gears. Large portions rotate around the mill drum with smaller pinion gears to spin thousands of tons of material. YIZHI MACHINERY makes gears for copper, gold, and iron ore processing plants. Silica dust, temperature cycling, and rattling damage gears quickly. Spur gears' straight teeth eliminate axial forces, making inspections, tooth replacement, and bearing arrangements in huge structures easier. Ore and coal conveyors need spur gear reducers. 24/7 systems have short repair windows. Spur gears' high transfer efficiency (usually over 98%) minimizes energy use in big transport networks. We employ SEP 1921 ultrasonic testing in production. Prevents catastrophic production-stopping failures by finding internal forging gaps.

Industrial Machinery and Manufacturing Equipment

Rolling mills use huge spur gears to shape red-hot metal billets into sheets and structures. These applications entail on-and-off shock loads and fast acceleration. Strong teeth and strong case-hardened surfaces allow our gears to withstand bending forces and contact wear in these operations. Spur gears run cement kilns. Kilns crush gritty clinker 24/7 at high temperatures. Simple and reliable spur gear reducers power chemical and food mixers and agitators. Food-grade uses demand easy cleaning and sanitization, hence the design is simple. When needed, YIZHI MACHINERY develops FDA-compliant gears, boosting usage.

Aerospace Ground Support and Testing Equipment

Precision and dependability are crucial in aviation ground support gear. Power measurements and load control are accurate with large Spur Gear units in engine test stand dynamometer drives. Our ISO 5-6 precise grades reduce communication errors, ensuring test data accuracy. Spur gear drives are reliable and easy to fix, thus hangar door mechanisms and airplane positioning systems use them. Custom tooth profiles and modules for older equipment are available from YIZHI MACHINERY. These facilitate long-term fleet repairs.

Real-World Case Study: Conveyor System Optimization

For early gear difficulties on their road conveyor system, a copper mine called us. According to study, the surface wasn't hard enough and the tooth touch patterns weren't right because the teeth weren't aligned. Rebuilding their gear set with 60 HRC-carburized 42CrMo steel. Fitment tolerances required tip relief adjustment. Improving spur gear design extends their lifespan to 18–5 years. This drastically decreased repair costs and unscheduled downtime. This example shows how material selection and product precision affect corporate profitability.

Comparing Large Spur Gears with Other Gear Types for Power Transmission

To choose the best gear technology, you need to know what its strengths and weaknesses are. I'd like to explain how Large Spur Gear designs compare to other systems.

Spur Gears versus Helical Gears

Helical gear teeth engage gradually, making the process smoother and quieter. Spur gear teeth engage instantaneously. Helical gears minimize noise better at high speeds. However, pointed teeth require thrust bearings and complicate housing designs due to axial thrust forces. When used in big quantities, these bearing loads raise costs and failure risk. Bearing choices and case space are simplified by spur gears' radial-only load pattern. Spur gears are cheaper to create than curved teeth due to their ease of processing and shorter production cycles. YIZHI MACHINERY completes large spur gear orders in 35–60 days. A Helix gear takes 20-30 days longer. Spur gears transfer 98–99% per mesh, like helical gears. Heavy loads cause helical gear teeth to slip, causing friction losses. Spur gears are ideal for mining and industry applications that require high power transfer with minimum complexity.

Comparison with Bevel Gears

Bevel gears make 90-degree wheel power transmission easier. Geometry aids planning spur gears cannot. Trimming and aligning teeth in bevel gears requires numerous complicated steps. Cleaning and replacing teeth is tougher due to their three-dimensional shape. Large Spur Gear units can handle more weight and are easier to maintain in horizontal shaft drives and most industrial drives. Casting, hobbing, milling, grinding, and other techniques are used to create cylindrical spur gears by YIZHI MACHINERY They have larger economies of scale than bevel gears.

Worm Gears and Their Limitations

Worm gear sets can reduce 100:1 in one stage despite their size. This makes them appealing for slow use. Natural worm gears are inefficient. Worm-wheel friction cuts efficiency 50–90% depending on lead angle. Since moving contact generates heat, strong cooling and lubrication are essential. The same reduction ratios give multi-stage spur gear reducers 95% efficiency or more. Heavy businesses with high energy prices save money over time with spur gear systems.

Key Considerations for Procuring Large Spur Gears

Purchase success goes beyond price comparison. Understanding technical requirements, quality standards, and procurement strategy ensures parts meet practical needs.

Industry Standards and Specifications

Standardized gear sizes and weights ensure safety and compatibility. ISO 6336 calculates load capacity, contact stress, bending stress, and surface toughness. AGMA 2001-D04 is used in North America to estimate power ratings. To maintain interoperability, YIZHI MACHINERY's IT team uses both standard platforms. Compare supplier offers for load rates determined using proven methodologies, not assumptions. Design estimates should include safety for your application's input power, speed, duty cycle, and environmental variables. Precision grades affect efficiency and cost. ISO Grade 5-6 gears are appropriate for precise, quiet, shaking-free work, whereas Grade 8-9 gears are good for huge industrial projects that demand durability over accuracy. Understand this trade-off to avoid over-specifying (and overpaying) for unneeded accuracy or under-specifying (and failing early).

Material Selection Matching Operating Environment

Workplace conditions affect Large Spur Gear material needs. Carburizing creates the hardest surface in mining and cement manufacturing, 58–62 HRC. Impact loads in crushers and mills demand strong cores. Surface hardness and core toughness make 42CrMo and AISI4140 acceptable. 18CrNiMo7 alloys are good for marine conditions because they resist rust. Extreme heat affects material selection. Kiln drive materials must be hard at high temps. Certain bearing steels lose hardness above 200°C, although properly treated alloy steels can withstand 400°C. YIZHI MACHINERY analyzes every production batch's teeth for chemical makeup, microstructure, and hardness using metallurgy. We monitor quality to avoid material replacement when buying abroad.

OEM versus Custom Manufacturing

OEM gears match contemporary needs precisely. OEM procurement takes longer and costs more due to monopolistic supply chains. Custom gear production from YIZHI MACHINERY lets designers change designs to improve performance and minimize costs. Our engineers evaluate gear specs to improve material quality, precision, or design to fix difficulties. We have low minimum order quantities, therefore making one item is possible. It supports maintenance and spare part programs without considerable inventory. Places using discontinued OEM equipment benefit from the custom solution. YIZHI MACHINERY reverse engineers ancient parts using laser scanning and CMM testing.

Lead Times, Pricing, and Bulk Order Advantages

At YIZHI MACHINERY, standard wait times for Large Spur Gear production are 35 to 60 days. This includes buying the forging, machining, heat treating, and final grinding. For urgent needs, it is possible to speed up production, but it costs more. Learning about the factors that affect lead times is helpful for making purchases. For example, the supply of raw materials, the timing of heat treatment, and the final grinding processes are common bottlenecks. Bulk orders save money by buying materials more cheaply and making better use of production schedules. We offer progressive pricing structures that reward bigger promises while still giving you options through phased delivery plans that match the rate at which you use our services. Pricing is based on a number of factors, including the cost of materials, the difficulty of the job, the level of accuracy needed, the heat treatment needs, and the number of items ordered. Asking for thorough quotes that break down the costs into their individual parts lets you negotiate more effectively and find ways to lower costs by making changes to the specifications.

Maintenance Tips and Performance Optimization for Large Spur Gears

Maintaining your Large Spur Gear protects your investment and reduces downtime. From 15 years in this industry, I'll provide some successful tactics.

Regular Inspection Protocols

Systematic checking finds problems before they become major. During routine maintenance breaks, check teeth for wear, pitting, scoring, and cracking. Poor lubrication or misalignment cause strange wear patterns. MPI finds unseen surface fractures. Use this non-destructive method to examine important gears annually. Setting standard vibration signatures before launch helps you see patterns and issues. Gear mesh frequency loudness increases with wear. YIZHI MACHINERY supplies gear-specific inspection checklists and wear limit guidelines to help clients plan maintenance.

Lubrication Strategies and Best Practices

Suitable lubrication decreases friction, heat, and acid damage. Splash lubricate large spur gears in sealed gearboxes and mill girth gears in open gear drives. Load, temperature, and machine speed affect lubricant choice. These ISO VG 320-460 gear oils work for most sealed industrial drives. Open gears require heavy compounds or semi-fluid greases. Gritty particles accelerate wear, therefore contamination must be controlled. Set up filters and sealing. Oil research tools identify pollutants and wear before failure. Monitoring temperature ensures cooling and lubrication. Lack of lubrication, quality degradation, or unexpected loads may cause excessive operating temperatures.

Noise and Vibration Mitigation

Spur gears are louder than helical ones because their teeth connect quickly. Noise tolerance varies on purpose and closeness to people. Precision grinding improves tooth profile accuracy, decreasing transmission error and impact loads; tip relief adjustments ease teeth contact; and flawless alignment lowers noisy edge loading. Mounts isolate engine vibration and structure-borne noise. Choose ISO 5 or 6 precise ratings for noise reduction. Buying fine grinding boosts sound.

Troubleshooting Common Failure Modes

Know failures' causes. Pitting creates tooth holes. Frequent stress causes contact wear. Progressive pitting suggests imbalanced surface loading. Improve material or form to lessen contact stress. Scores are scratches on tooth surfaces caused by lubricant coating breakdown at high loads or temperatures. Add EP chemicals or grease to fix scoring concerns. Shock overload, material defects, and wear cracks often cause catastrophic tooth breaks. Root cause analysis matters. We help customers understand and prevent failure with metallurgical analysis and stress estimates.

Installation and Operational Guidelines

Proper installation influences gear performance. Align two gears within limits to fit. If not, loads hit tooth edges, accelerating wear and noise. Heat expansion and lubrication without part movement are possible with backlash adjustment. Reduced run-in loads conform surfaces, improving contact patterns. Blue contact checks assure tooth engagement; each tooth should have 70% width-and-height contact. Consider gradually speeding up to avoid shock loads, monitoring working temperatures, and not using the unit when not supposed to. Though simple, these procedures extend service life when done religiously.

Conclusion

Large Spur Gears are still used in mining, aerospace, and industrial machinery power transfer systems. They overcome tough working conditions with their great load capacity, efficiency, and ease of use. Design basics, application needs, and optimal maintenance procedures enable procurement managers and engineers pick where to buy. Material, requirements, and production quality affect reliability and TCO. YIZHI MACHINERY offers unique gear solutions for the toughest industrial needs. This is possible with our 15 years of production experience, innovative manufacturing, and skilled staff

Frequently Asked Questions

1. How do I calculate the appropriate gear ratio for my application?

Gear ratio equals driving gear teeth divided by moving gear teeth. This ratio regulates power and speed. Goal ratio is the difference between necessary output speed and possible input speed. Many pairs of gears in multiple-stage reducers provide large ratios and tiny gear diameters. YIZHI MACHINERY engineers assist you choose a ratio and construct a multi-stage gearbox for efficiency and packaging.

2. What factors determine load capacity in large spur gears?

Large Spur Gear loads depend on precision grade, tooth form, surface hardness, and material strength. ISO 6336 formulas consider tooth root bending and flank contact stress. They then compare these stresses to the material's safe maximum pressures. Weight may increase with wider-faced module gears. Heat treatment increases contact stress by hardening surfaces. Full load rating documents illustrate our gears' capacity during continuous and occasional job cycles

3. Can you accommodate custom sizes and special materials?

Of course. Custom work is Yanshi Machinery's specialty. Customer-specific modules, tooth profiles, and mounting solutions are made. In addition to steel grades, our alloys are for harsh situations. Communication of requirements starts engineering. Design drawings and customer approval follow. Product processing, quality control, packing, and shipping follow. Our flexible production methods let us construct one test gear cheaply.

Partner with YIZHI MACHINERY for Precision Large Spur Gear Solutions

References

1. Dudley, D.W. (1994). Handbook of Practical Gear Design and Manufacture. CRC Press, Boca Raton.

2. ISO 6336-1:2019. Calculation of load capacity of spur and helical gears — Part 1: Basic principles, introduction and general influence factors. International Organization for Standardization.

3. AGMA 2001-D04. Fundamental Rating Factors and Calculation Methods for Involute Spur and Helical Gear Teeth. American Gear Manufacturers Association.

4. Shipley, E.E. (1967). "Gear Failures" in ASM Handbook Volume 11: Failure Analysis and Prevention. ASM International, Materials Park, Ohio.

5. Budynas, R.G. and Nisbett, J.K. (2015). Shigley's Mechanical Engineering Design, 10th Edition. McGraw-Hill Education, New York.

6. Errichello, R. (2012). "Morphology of Micropitting" in Gear Technology Magazine, March/April 2012, pp. 74-81. Randall Publications, Elk Grove Village, Illinois.
