OEM Custom Spur Gear Services: From Design to Production

B2B procurement teams in mining, aircraft, and industrial machinery commonly find off-the-shelf transmission parts lacking. OEM Custom Spur Gear services cover this gap by designing gears to meet operational requirements, space constraints, and load-bearing needs. Standard catalog items have fixed modules and pressure angles. Custom spur gears adapt to your design rather than giving in. These customized solutions increase torque density, reduce backlash by changing shape, and include heat treatments to survive longer in hostile environments.

​

Understanding Custom Spur Gears: Design and Benefits

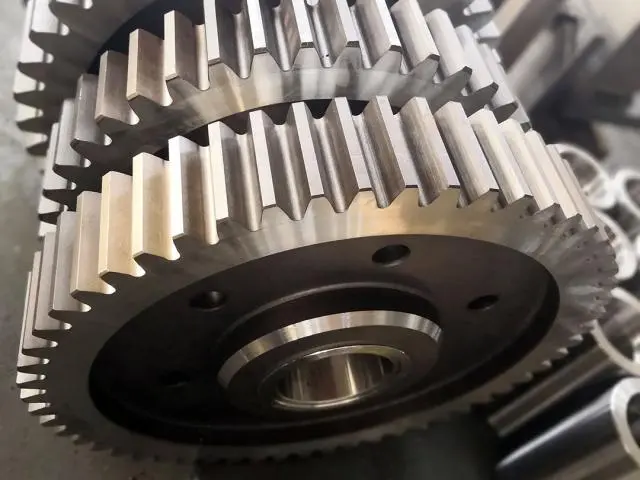

What Makes Custom Spur Gears Different

Custom Spur Gears differ from inventory items. Catalog gears are ideal for general usage but force engineers to modify designs for specific sizes. In many projects, the buying team chose standard gears that broke down early, generated too much noise, or didn't transmit power efficiently. Custom-engineered gears eliminate "close enough" trade-offs by allowing perfect center-distance spacing. These sections have straight teeth parallel to the gear plane, but that's about it. Custom designs offer optimal tooth shape, pressure angles (14.5°–25°), and face diameters for dynamic needs. This precision engineering targets performance aspects that affect operations and equipment lifespan.

Core Design Parameters That Drive Performance

Material selection is crucial in custom gear fabrication. Our standards include high-quality alloys 18CrNiMo7, 17CrNiMo6, and SAE4340. We chose them for their mechanical differences. Carburizing 20CrMnTi metal achieves 58–62 HRC surface hardness while maintaining core toughness. However, 42CrMo and AISI4140 are ideal for moderate-load through-hardening due to their strength and machining simplicity. In difficult situations, precise grades matter. ISO 5-6 parts provide the dimensional accuracy needed for high-speed automation and robots, where even small runout tolerances can cause positioning errors. ISO 8–9 grades are excellent for heavy machinery where shock loads trump precision. They cut costs without sacrificing quality.

Industry-Specific Applications and Benefits

Mining worsens gearbox part conditions. Gears that surpass expectations are needed to move gritty ore on conveyor systems, crush massive shock loads, and work in dusty environments with dragline loaders. Custom systems with large modules (10–50) and larger teeth can handle these extreme circumstances, whereas catalog gears would fail in weeks. Alternatively, aerospace usage require great power-to-weight ratios and total dependability. Custom vacuum-melted steel gears with shot-peening surfaces are employed in flap control systems and auxiliary power units. These parts meet business flight zero-defect performance standards despite large temperature variations and strong G forces. This includes motion control that requires grinding teeth with the appropriate backlash and heavy-duty gears that send hundreds of horsepower. Motor reducers, specialized manufacturing equipment, and agricultural equipment benefit from custom engineering that matches specific working envelopes rather than design compromises.

The OEM Custom Spur Gear Design and Manufacturing Process

Collaborative Engineering and Design Phase

The first step in making Custom Spur Gear solutions for you is a full talk of your needs. This is where our procurement teams share operational factors, space limitations, and performance standards. CAD software is used by engineering teams to model the shape of gears, and finite element analysis is used to make sure that the teeth will be strong under certain loads. This joint method finds problems before they happen in production, which saves time and money. Important details are shown on the design sketches, such as module ranges from 0.5 to 50, custom tooth counts, and exact bore sizes with keyway setups. At this point, we also set the standards for quality testing. These include accepted ranges for pitch variation, runout, and tooth profile accuracy that are in line with ISO guidelines.

Advanced Manufacturing Methods

The production process blends the best of old-fashioned gear making with the most up-to-date precise tools. Here's how we turn raw materials into high-quality gearbox parts:

1. Forging and Rough Machining: Blanks are formed to a shape that is close to their net shape. This creates grain flow patterns that make the material more resistant to wear. Rough cutting processes get areas ready for fine work to come while quickly removing material.

2. Gear Tooth Generation: Hobbing is still the best way to make tooth profiles because it uses special cutting tools to make exact involute shapes. The exact hob geometry is based on the module and the pressure angle. Our machines can handle the full 0.5–50 module range that is defined in custom designs.

3. Heat Treatment Processes: Carburizing makes a harder shell on low-carbon alloys like 20CrMnTi and AISI8620, making the surface hard up to 58–62 HRC while keeping the core tough. When you quench and condition medium-carbon steels like 42CrMo, they get a through-hardness of 45 to 50 HRC. Induction hardening can selectively harden big gears so that only the tooth surfaces need to be more resistant to wear.

4. Precision Grinding: The final grinding of the teeth achieves ISO 5–6 precision grades, which get rid of the warping caused by the heat treatment and make surface finishes that are less than 0.8 µm Ra. This process is very important for high-speed uses where noise, shaking, and efficiency are all affected by the quality of the tooth contact.

These steps in the making process take 35 to 60 days, which shows how thorough custom gear production needs to be. It takes almost a week just to do the heat treatment because the right heating rates, soak times, and cooling processes can't be rushed without changing the metal's features.

Quality Control and Validation

Coordinate measuring tools are used to carefully check the tooth profile precision, pitch variation, and concentricity of every custom gear. Gear testers check the total pitch error and tooth-to-tooth composite variation, two factors that have a direct effect on how smooth the transmission is. Material approvals show what the alloy is made of, and hardness tests show that the heat treatment works on both the tooth surfaces and the core parts. For important uses, performance evaluation may include load testing, in which gears work under realistic service conditions to check their torque capacity and find any signs of early wear. This thorough quality control makes sure that parts meet the requirements before they are sent out. This cuts down on mistakes in the field that slow down operations and hurt relationships with customers.

Comparing Custom Solutions with Alternatives

Custom Versus Standard Stock Gears

There are a few things that affect whether you choose Custom Spur Gear or stock gears. Standard gears are easy to get and don't cost much per unit, which makes them a good choice for simple tasks where the design factors can be changed. But their flaws become clear when center distances don't match up with available pitches, when working loads are higher than standard tooth thickness, or when the environment calls for special materials. Custom manufacturing is useful when standard measurements can't be fit into equipment designs, when operational needs are higher than what's listed in a catalog, or when production rates are high enough to support investing in tools. We've worked with mining equipment makers who originally asked for standard gears but kept having problems with them. By using custom designs with better modules and carburized surfaces, the number of replacements dropped by 400%, quickly recouping the higher original investment.

Spur Gears Compared to Helical and Bevel Types

Knowing the trade-offs between gear types helps buying teams come up with the best solutions. Spur gears are better than helical designs in a number of ways. They are easier to make, which lowers costs, the straight teeth don't create axial thrust, which makes it easier to choose bearings and design housings, and the power transmission efficiency stays high because the teeth roll against each other instead of sliding against each other. Helical gears make operation quieter and can hold more weight because their contact ratios are higher, but they also create axial forces that need thrust bearings and make manufacturing more difficult. Bevel gears move power between shafts that cross each other, but they need to be perfectly aligned and machined. When shaft setups allow them to be used, spur gears are the best choice for most industrial tasks because they are easy to build and work well.

Emerging Prototyping Technologies

Rapid prototyping for gear development is now possible with additive manufacturing technologies. This is especially helpful for testing designs before committing to traditional tools. 3D-printed polymer gears speed up the development process by letting you test how well tooth shape and fit within structures work. Metal printing can make a small number of working gears, but the surface finish and qualities of the material usually need to be machined and heated to meet production standards. These tools don't replace traditional industry; they add to it. When we need to test a design or make a few special items in small amounts, we use 3D printing. For larger orders, hobbing and grinding are better for accuracy, surface quality, and material qualities.

How to Select the Right OEM Custom Spur Gear Manufacturer

Essential Capabilities and Certifications

Testing basic skills is the initial step in evaluating Custom Spur Gear suppliers. Your apps' module range and gear sizes must be supported by manufacturing machinery. Grindability is necessary for precision applications since hobbed gears rarely exceed ISO 8 accuracy without grinding. How well heat can treat materials determines their usability and toughness. Self-heat treating gives you more control and takes less time than hiring a firm. Find partners with induction, through-hardening, and carburizing ovens with environment controls to prevent decarburization and surface defects.

Quality standards and ISO conformance demonstrate planned manufacturing control. Aerospace and defense suppliers have stricter process paperwork and traceability standards, making the supply chain more reliable for all clients.

Engineering Support and Technical Partnership

Your gear provider should be more than just a vendor. You should also collaborate on tech. Expert engineering teams can optimize designs without compromising quality, improving performance or cost. We review client designs everyday and offer adjustments like modifying the material to last longer or the tooth form to reduce stress. Fast expert assistance is helpful when correcting installation issues or investigating unusual wear patterns. Long-term partners analyze failures, suggest corrections, and improve plans using field performance data. This continual support is especially valuable in complex scenarios where gear performance influences many system aspects.

Practical Procurement Considerations

To manage lead time, determine which tasks effect schedule duration. The longest steps include getting, heating, and grinding the ingredients. Keep popular alloys in stock to reduce wait times, although specialist materials may take weeks to arrive at the mill. Custom making requires minimum orders due to economics. Grinding requires a precise machine setup, while gear hobbing requires certain cutting tools. Because development projects and specialized tools require unique prototypes and limited batches, we can manufacture them. This allows purchasers receive fresh parts for aging equipment when sales don't support stocking and gives them options while a product is created. Good providers distinguish themselves from excellent partners by meeting client needs. Fast bids, clear production communication, and proactive plan updates show that the organization cares about its clients. Some of our long-term clientele value honesty and trustworthiness as much as technical proficiency.

Streamlining Procurement of Custom Gears

Effective Specification Communication

For accurate Custom Spur Gear pricing, full details are needed. The module or diameter pitch, number of teeth, face width, bore diameter and error, desired material, needed hardness, and quality grade criteria should be communicated to buyers. By clarifying measurements and geometric features, CAD sketches reduce confusion. Explaining torque loads, rotating speeds, and meteorological conditions helps engineers evaluate designs and make changes. We recommend testing samples before buying in bulk. Physical models enable you test fit, material qualities, and performance in real settings. This method finds standards-specification discrepancies while minimizing expenses and planning. This avoids costly fixes after mass production.

Balancing Cost, Quality, and Delivery

Buying bespoke gear requires choosing between goals. Tighter standards and harder materials make production harder and costlier, but they endure longer and work better. Knowing your application's needs prevents over-specification, which wastes money, and under-specification, which causes issues. Volume greatly impacts unit prices. Set prices for gear cutting tools are distributed over the number of parts ordered. This makes larger orders cheaper per piece. Too much stuff wastes money and increases the risk of obsolescence. We help customers choose order quantities that balance volume savings and inventory costs. We sometimes recommend scheduled master order releases to take advantage of volume pricing and control inventories. Fine, easily damaged parts require special shipping processes. Unpacked gears can lose form and be destroyed by impacts that ruin tooth surfaces. Our specialized packing uses shock-absorbing materials, protective coatings, and specifically built hardwood crates to preserve parts during overseas shipping. With these procedures, we've reduced shipping damage to around 0.1%, almost eliminating costly substitute order delays.

Long-Term Supply Chain Optimization

Strategic partnerships with specialized gear vendors provide long-term rewards. Suppliers may maximize their supplies, tools, and schedules with consistent technical requirements and repeat purchases, improving pricing and delivery. We preserve technical records for repeat customers. This simplifies reordering and ensures long-term manufacturing consistency. Real-time order tracking shows order creation and delivery. Updates are delivered during machining, heat treatment, grinding, inspecting, packing, and shipping to coordinate assembly and resource planning. The urgency and magnitude of the purchase can determine shipping options including ocean, air, and rail. This reduces handling expenses and meets delivery criteria.

Conclusion

When standard parts don't fulfill performance or design requirements, mining, aerospace, and industrial tools use custom Spur Gear services. Investing in specialized engineering, such as choosing the right materials, heat treatment, grinding, and quality control, extends machine life, lowers upkeep costs, and ensures dependable performance. An experienced OEM vendor has advanced production tools, technical expertise to improve designs, and logistical support to ensure parts arrive on time and undamaged. When buying bespoke gear, be clear about what you need, grasp the price-performance trade-offs, and create connections with sellers that want to work with you long-term.

Frequently Asked Questions About Custom Spur Gears

1. What lead time should we expect for custom gear production?

Depending on how complicated it is and how busy the factories are right now, production usually takes 35 to 60 days for a Custom Spur Gear. This schedule is based on getting materials, going through rounds of heat treatment, and doing precise cutting work. Schedules may be a little shorter if the supplier keeps a stock of common alloys, but they may be longer if the supplier has to deal with unique materials or very tight standards. Managing standards and making sure deliveries fit with assembly schedules is easier if you plan ahead and stay in touch with your provider.

2. How do we decide between custom and off-the-shelf gears?

Custom manufacturing is a good idea when normal sizes don't work for the design, when working loads are higher than what the catalog says, when the environment calls for special materials, or when the amount of production is high enough to support investing in tools. When you need something right away and don't want to spend a lot of money, standard gears are a good choice. They can be designed to fit a wide range of needs.

3. Which materials work best for high-torque applications?

For high-load situations, alloy steels like 18CrNiMo7 or SAE4340 with a carburizing heat treatment are often needed. This makes the surfaces hard (58–62 HRC) and the cores strong enough to handle shock loads. For modest loads, through-hardened alloys like 42CrMo work well because their properties are the same across the whole piece. When choosing a material, you should think about more than just torque. You should also think about shock loading, working speeds, and weather factors.

Partner with YIZHI MACHINERY for Precision Custom Spur Gear Solutions

15 years of specialized knowledge have helped YIZHI MACHINERY make precise transmission parts for tough industry uses. Our Custom Spur Gear manufacturing services include full technical support, from the first design input to production, quality control, and shipping around the world. Our building has high-tech CNC machine centers, precise cutting tools, and a wide range of heat treatment options, such as the ability to carburize, through-harden, and induct. As a dedicated custom spur gear supplier, we can handle projects ranging from a single sample piece to large production runs, all while keeping quality standards that are in line with ISO standards. Our engineering team works closely with your purchasing and technical staff to make designs that are easy to make and meet the strict performance standards needed in aircraft, mining equipment, and industrial machines. You can email our team at sales@yizmachinery.com for technical advice, quick quotes, or example orders that show how committed we are to providing you with reliable, precisely made parts that solve your specific transmission problems.

References

1. Dudley, D.W. (1994). Handbook of Practical Gear Design and Manufacture. CRC Press, Boca Raton.

2. American Gear Manufacturers Association (2015). AGMA 2001-D04: Fundamental Rating Factors and Calculation Methods for Involute Spur and Helical Gear Teeth. AGMA Standards, Alexandria.

3. Radzevich, S.P. (2012). Dudley's Handbook of Practical Gear Design and Manufacture (Second Edition). CRC Press, Boca Raton.

4. International Organization for Standardization (2013). ISO 1328-1:2013 Cylindrical Gears - ISO System of Flank Tolerance Classification. ISO Standards, Geneva.

5. Townsend, D.P. (1991). Dudley's Gear Handbook: The Design, Manufacture, and Application of Gears. McGraw-Hill Professional, New York.

6. Jelaska, D.T. (2012). Gears and Gear Drives. John Wiley & Sons, Chichester.
