Large Spur Gear - Heavy-Duty Industrial Power Transmission Solutions

Henan Yizhi Machinery Co., Ltd. specializes in manufacturing precision Large Spur Gear frameworks planned for overwhelming mechanical applications. Our enterprise-level capabilities incorporate ISO-certified generation with 15 a long time of fabricating encounter, conveying customized adapting arrangements inside 35-60 days. We offer exactness grades ISO 5-6 and 8-9 with modules extending from 0.5–50, surface hardness up to 58–62 HRC, and comprehensive warm treatment forms counting carburizing and extinguishing. Our progressed fabricating combines producing, cutting, hobbing, processing, and pounding advances to guarantee uncommon quality and performance.

What Makes Our Large Spur Gear Superior?

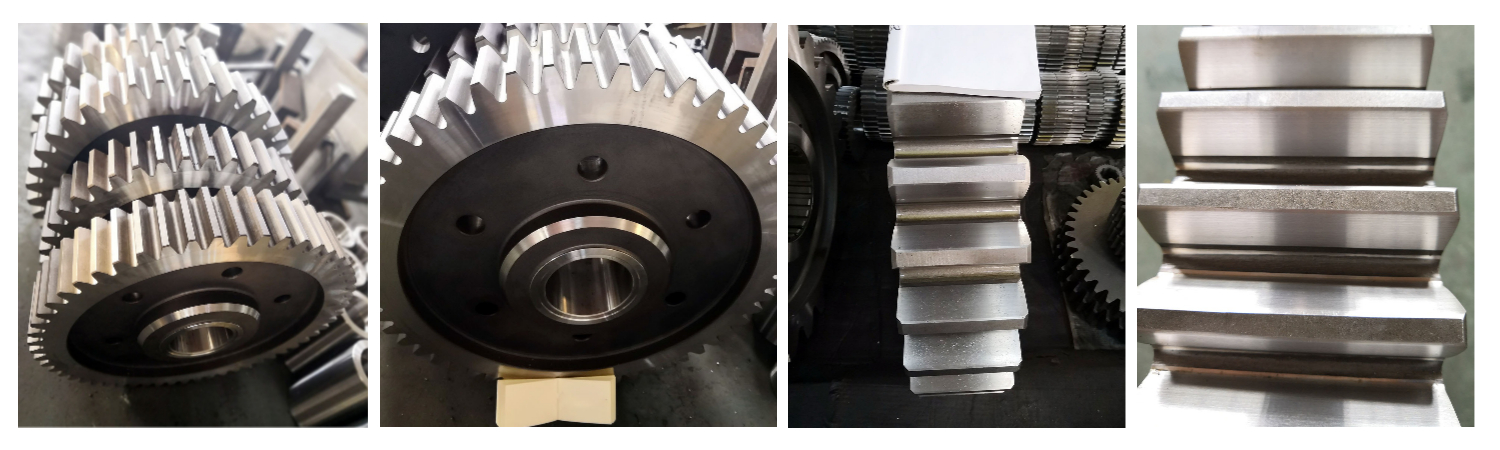

When you require solid control transmission for heavy-duty applications, our product solutions convey unmatched execution. These mechanical transmission components include straight teeth cut parallel to the revolution pivot, designed particularly for high-load mechanical environments.

Our gears exceed expectations in applications where conventional adapting falls flat. They dispense with hub pushed loads, streamlining your bearing arrangements whereas diminishing lodging complexity. This plan advantage makes them perfect for parallel shaft control transmission frameworks requiring extraordinary durability.

Key Design Features

Your applications advantage from our gear's direct tooth geometry. The straight tooth profile produces zero hub strengths, anticipating pushed bearing disappointments that torment other adapt sorts. This auxiliary advantage gives prevalent resistance to bowing weariness and stun loads.

We fabricate each adapt utilizing high-grade combination steels counting 20CrMnTi, 40CrNiMo, and 18CrNiMo7. Our specialized warm treatment forms guarantee ideal surface hardness whereas keeping up center toughness.

Technical Specifications

Industry Applications

Mining and Cement Industries

Your ball mills and kilns rely on our Large Spur Gear innovation as size gears. These gigantic components drive turning drums through consistent rough conditions, withstanding vibration and warm stretch without tooth failure.

Marine and Port Machinery

Heavy-duty winches and cranes utilize our gears in fundamental raise gearboxes. They handle extraordinary inactive loads and start-stop stun torques in destructive marine situations, highlighting specialized surface security for expanded benefit life.

Steel and Sugar Processing

Rolling plants and crushers depend on our gears to drive compression rollers. These applications request extraordinary affect resistance and execution beneath irregular oil conditions.

Manufacturing Excellence

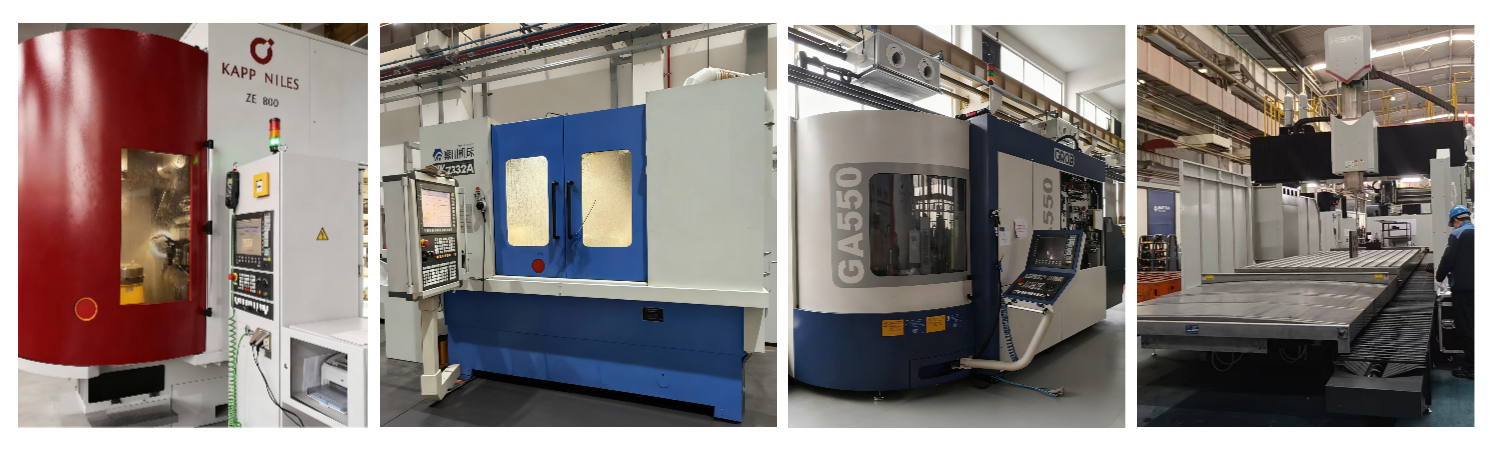

Our generation office highlights universally driving accuracy gear counting high-precision CNC adapt machining centers and completely robotized crushing machines. This progressed setup addresses all basic forms from adapt cutting to last inspection.

We take after a standardized workflow: prerequisites dialog, plan drawings, generation machining, quality review, bundling, and transportation. This precise approach guarantees steady quality and on-time delivery.

Quality Assurance

Every adapt experiences comprehensive review conventions. We perform ultrasonic testing for inside keenness and attractive molecule assessment for surface absconds. Our arrange measuring machines confirm tooth profile precision and pitch mistake specifications.

Hardness confirmation incorporates case profundity examination on conciliatory tests, guaranteeing legitimate carburization. Contact design checks beneath stack reenactment ensure ideal tooth engagement over the whole contact surface.

Service and Support

Pre-sales Back: Our building group gives plan drawings and specialized meeting to optimize your equip selection.

Production Bolster: You get test arrangement, synchronized advance upgrades, quality assessment reports, and coordinations following all through manufacturing.

After-sales Care: We give one-year guarantee scope with fast reaction for any specialized issues.

Logistics and Delivery

Your shipments get customized bundling with shock-absorbing liners and wooden beds, diminishing transport harm to underneath 0.1%. We coordinated different transport alternatives counting ocean cargo, discuss cargo, and rail frameworks to meet your conveyance requirements.

Real-time following keeps you educated from production line stacking to last conveyance, giving total perceivability all through the shipping process.

Frequently Asked Questions

Q: What's the minimum order quantity for custom gears?

A: We accept single-item production orders, making our services accessible for prototype development and small-scale applications.

Q: How do you ensure dimensional accuracy for large diameter gears?

A: We use large-scale coordinate measuring machines and portable laser trackers to verify all critical dimensions including tooth profile, lead deviation, and cumulative pitch error.

Q: What materials work best for high-temperature applications?

A: For elevated temperature service, we recommend 18CrNiMo7 or 42CrMo steels with specialized heat treatment cycles optimized for thermal stability.

Q: Can you provide gear repair services for existing equipment?

A: Yes, we offer comprehensive repair and refurbishment services including tooth welding, remachining, and performance restoration for worn gears.

Q: What's included in your technical consultation?

A: Our pre-sales engineering support covers load analysis, material selection, heat treatment specification, and integration guidance for your specific application.

Contact Us

Ready to discuss your Large Spur Gear requirements? Contact our engineering team at sales@yizmachinery.com for expert consultation and competitive pricing.
