The Complete Guide To Machined Precision Components

Machined precision components are expertly crafted mechanical parts manufactured through advanced subtractive processes—including CNC turning, milling, grinding, and drilling—to achieve exceptionally tight dimensional tolerances. These critical components solve persistent industrial challenges such as premature assembly failure, interchangeability issues, and poor performance under high-speed or high-pressure conditions. Industries like aerospace, mining, and industrial machinery rely on these parts to maintain operational reliability, where dimensional accuracy and surface integrity directly determine equipment lifespan and safety. Understanding how to specify, source, and apply these components effectively can transform your procurement strategy and operational efficiency.

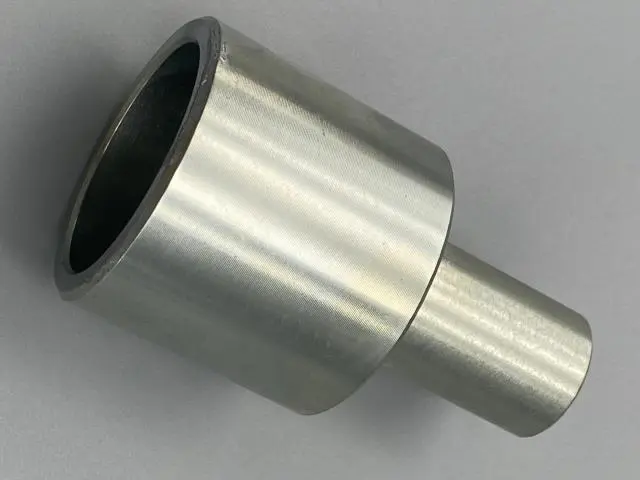

What Are Machined Precision Components?

When it comes to machined precision components, the dimensions and quality of the material must be exact. Precision machining, on the other hand, requires strict geometric dimensioning and tolerancing standards to be followed. Accuracy levels of within ±0.005mm to ±0.01mm are common for mass production that saves money.

Core Manufacturing Techniques

To get the specs that are needed, modern precision manufacturing uses a number of subtractive processes together. Cylindrical shapes with tight concentricity and roundness are made by turning processes. These shapes are perfect for shafts, bushings, and other rotating parts. Milling can handle complicated shapes like pockets, holes, and curved areas that casting can't do cost-effectively. Grinding gives better surface finishes down to Ra 0.2 µm and keeps the dimensions correct after heat treatment. For accurate assembly alignment, drilling makes sure that holes are in the right place and have the right diameter. Each process brings something different to the table, and choosing the right mix decides both how much it costs and how good the end result is.

Material Selection Fundamentals

Choosing the right materials has a direct effect on how well and how long a component works. High-strength 45# steel lasts a long time and is great for general industrial uses where resistance to wear is important. The alloy 20CrMnTi has better case-hardening properties, which makes it perfect for parts that need tough cores and hard wear surfaces, like those found in mining equipment and heavy machinery. On the other hand, 35CrMo has great mechanical properties, such as high tensile strength and fatigue resistance, making it useful for important aerospace and automotive uses. Material approval through Mill Test Reports makes sure that the material can be tracked and meets industry standards, which is important for buying teams that care about quality.

Tolerance Classes and Standards

Understanding how to classify tolerances helps people who work in procurement clearly communicate needs. The general tolerance standards in ISO 2768 range from very fine (v) to very fine (f). Most precision work falls into the middle (m) or fine (f) groups. Tolerances in geometry, like parallelism, perpendicularity, concentricity, and true position, govern how features relate to each other rather than just their individual sizes. Specifications for surface hardness, such as HV 500–800, make sure that parts can handle operational stresses without wearing out too quickly. These technical parameters help buyers and manufacturers talk to each other, which keeps misunderstandings and extra work from costing a lot of money.

Comparing Precision Machined Components with Alternative Solutions

It's easier to make a good choice when you know the pros and cons of each manufacturing plan you're considering for your project. Depending on the amount of work to be done, how complicated it is, and the quality standards, each solution has its own benefits.

CNC Machining Versus Manual Processes

CNC machining is the most common type of precise manufacturing today because it can make complicated shapes and patterns over and over again. Computer-controlled equipment gets rid of human error, making sure that each part is the same as the last one within the limits of statistical process control. This level of uniformity is very important when making machined precision components that need to be able to be switched out without having to be fitted or adjusted. Manual machining is useful for samples or one-time fixes, but it's not cost-effective enough to provide the consistency needed for large-scale production. Process capability indices (Cpk values above 1.33) show that CNC operations keep a close eye on important measurements, which lowers the amount of waste and problems with assembly later on.

Custom Manufacturing Versus Off-the-Shelf Parts

For common uses, standard catalog parts are available right away and cost less per unit. But they force design tradeoffs and may add weight, size, or speed limits that aren't needed. With custom precision machining, these limits are taken away, so engineers can make every dimension work best for the job. This customization is especially helpful in aerospace, where reducing weight has a direct effect on fuel efficiency, and in mining equipment, where the shape of parts affects how easy they are to maintain. When routine performance improves or weight saves support the extra cost, the investment in custom tooling and programming pays off.

Metal Versus Advanced Engineering Plastics

Traditional metal parts are used in most high-load uses that need to be strong and resistant to high temperatures. Steel alloys are good at handling high temperatures, compressive loads, and torque transmission, while plastics would break under these conditions. For some uses, though, industrial plastics like PEEK are better because they don't rust, don't conduct electricity, and are lighter. Plastics are often chosen by medical device makers because they are biocompatible and easy to sterilize. Instead of just going with the most common materials, the decision depends on looking at practical needs like load size, temperature range, chemical exposure, and legal limits.

The Precision Machining Process Explained

To get regular accuracy, you need to keep an eye on every production element in a planned way. Knowing the whole process helps buyers set reasonable goals and find possible risks before making a commitment to a seller.

Addressing Common Machining Challenges

One of the most important factors that affects dimensional consistency is tool wear. As cutting edges wear down, they produce more heat and cutting forces, which causes measurements to slowly move outside of tolerance bands. Professional makers use tool life management systems to replace or recondition cutting tools based on both the number of cycles they have been used and statistical data about how well they are working. This is done instead of running them until they break. As a machine works, its spindles and structures get bigger, which changes how accurate it is. Facilities with climate control and procedures for thermal stability keep equipment within the limits of its calibration. When there are differences in a material's hardness, grain structure, or chemical makeup, it needs flexible machining techniques where the feed rates and tools change based on real-time tracking.

Quality Control and Inspection Protocols

Dimensional checks are done at more than one point in the production process, not just during the final review. By measuring changes as they happen, in-process measurements stop whole batches from going over tolerance limits. Coordinate Measuring Machines check complex geometries in three dimensions and make reports that show the difference between the actual dimensions and the nominal CAD geometry. Surface finish scales make sure that the roughness levels meet the requirements. This is especially important for sealing surfaces or bearing journals. Testing the surface hardness of parts after heat treatment makes sure they reach the required HV 500–800 ranges throughout the required depth. These thorough inspection procedures for machined precision components, which are backed up by Certificates of Conformity and inspection reports, make it possible to track things down to the level required by aerospace and medical device laws.

Real-World Applications Across Industries

For gearboxes, hydraulic systems, and automation equipment, manufacturers of industrial machinery need precise parts. The success of assembly depends on the tolerances for dimensional stack-up. For mining operations to work properly, parts need to be able to handle rough conditions and shock loads while still having to fit together tightly. When used in aerospace, the level of precision needed is very high. For example, important engine parts need to be able to track their materials, be tested without damaging them, and meet AS9100D quality standards. Precision and cost-effectiveness are important when making automotive transmission parts that need to be able to be made in large quantities without losing control over the dimensions. Each industry has its own problems that affect the choice of material, the tolerances that must be met, and the quality documentation that must be kept.

Industry Trends and Innovations in Precision Machining

Digital technologies and worries about sustainability are changing the way things are made, so the industrial scene is also changing. Keeping up with these changes helps procurement teams predict how the supply chain will change and find ways to be more competitive.

Automation and Digital Integration

Robots are used in modern factories to move materials, take care of machines, and check parts. This cuts down on labor costs and improves accuracy. Damage caused by manual handling is avoided, and cycle times between operations are cut down. AI programs look at production data to guess when repairs will be needed, make tools last longer, and change process settings instantly. These ideas for a digital workplace will change machining from a craft-based process to a data-driven one where every variable is tracked and improved. In real life, this means shorter lead times, better quality consistency, and more production flexibility, which lets manufacturers handle smaller batch sizes that weren't possible before.

Sustainable Manufacturing Practices

Sustainable practices are being used more and more in the precision machining industry because of environmental laws and corporate social responsibility programs. High-pressure cooling systems use less fluid and make it easier for chips to escape, which extends the life of tools. Some materials and operations can be done with less coolant when near-dry machining techniques are used. Recycling programs get useful metal chips back so they can be remelted. This lowers the cost of raw materials and the damage they do to the environment. Most of the time, these steps to promote sustainability have two benefits: they reduce both the impact on the environment and the cost of doing business by making processes more efficient.

Evolving Buyer Expectations

More and more, procurement teams want the whole supply chain to be open and honest. With digital inspection records, real-time production updates, and shipping tracking, you can see things that you couldn't see ten years ago. Quality certifications have grown beyond the basic ISO 9001 to include AS9100D for aircraft, IATF 16949 for cars, and ISO 13485 for medical equipment. In a market where competition is high, suppliers who follow these standards for openness and pay for approval stand out. The move away from transactional buying and toward partnership-based relationships rewards manufacturers who offer technical advice, help with design optimization, and group problem-solving throughout the product development cycle.

How to Source and Buy Machined Precision Components

For procurement to work well, sellers need to be carefully evaluated based on their skills, quality processes, and business terms. Taking an organized method lowers your risks and helps you build relationships that last.

Defining Your Requirements Clearly

Full detailed paperwork is the first step to successful sourcing. GD&T callouts on detailed engineering models make it clear what the most important measurements and features are. Specifications for materials should use recognized standards instead of broad terms. For example, "AISI 4140 steel, normalized and tempered" is more specific than "alloy steel." Similarly, requirements for surface treatment should be clear, like saying whether galvanizing meets ASTM B633 standards or if blackening needs specific salt bath processes. Forecasts of volume and shipping times help providers get the best quotes and plan their production. This upfront clarity stops misunderstandings and rework cycles that cost a lot of money.

Evaluating Supplier Capabilities

Technical skills go beyond just having CNC machines. Check to see if the makers have machines that are the right size and can work with your part specs. Make sure that their measuring and checking tools meet the limits you've given them. For example, for parts with ±0.005mm tolerances, you need coordinate measuring machines, not simple calipers. Check their material certifications and heat treatment capabilities. This is especially important for special alloys that need documented heat treatment. Long-term relationships with well-known companies in mining, aerospace, and industrial tools show that they can meet strict requirements. Years of experience in manufacturing, like the 15 years that YIZHI MACHINERY has been making machined precision components, shows that the company is both technically skilled and financially stable.

Understanding Pricing and Lead Times

Because of all the steps that need to be taken, production times for handmade machined precision components are usually between 35 and 60 days. Rush orders can be taken, but they generally cost more to make up for the extra time and effort. Volume has a big effect on unit prices. Because of setup time and code, prototype amounts cost more per piece, while production runs save money through economies of scale. Surface treatments, rare materials, and very close tolerances all make costs go up over time. Instead of giving vague lump-sum prices, transparent suppliers give detailed quotes that break down the costs of materials, processing, shipping, and handling. This openness helps buyers understand what causes costs to go up and down and find possible value engineering possibilities.

Building Reliable Supply Relationships

Long-term relationships work best when both people talk to each other often and respect each other. Before committing to full production volumes, pre-production samples let you check how the supplier understands things. Synchronized progress updates during production let you see what's going on and let you act quickly if problems arise. Having a lot of quality paperwork, like material certifications, dimensional inspection records, and proof of surface treatment, makes it easier to be sure that the parts you receive meet the requirements. Professional manufacturers are different from commodity suppliers because they offer after-sales support, such as warranty coverage and quick technical help. When you add these relationship factors to procurement, it goes from being a one-time deal to a strategic partnership that helps your business succeed.

Conclusion

In the aerospace, mining, and machinery sectors, machined precision components are the foundation of reliable industrial equipment. Procurement professionals can make smart decisions about where to buy things by understanding the basics of technology, such as how things are made, what their properties are, and how to make sure they meet tolerances. As manufacturing moves toward digital methods, environmentally friendly methods, and clear supply lines, buyers looking for competitive benefits face both problems and chances. Companies can get the precise parts they need for long-term competitiveness and operational excellence by working with experienced manufacturers who offer both technical know-how and full service support.

FAQ

1.What tolerance levels can precision CNC machining realistically achieve in production?

Under controlled conditions, prototype parts can have tolerances of ±0.002mm. However, for mass production to be cost-effective, tolerances of ±0.005mm to ±0.01mm are usually maintained, and process capability indices must be higher than 1.33. Tighter standards mean that grinding and finishing have to be done in a climate-controlled environment, which has a big effect on unit costs. Setting the right limits based on functional needs instead of random precision saves money and makes sure that parts work reliably in the ways they were designed to.

2.How do surface treatments affect final component dimensions?

Depending on the process, surface treatments like galvanizing, anodizing, and coating can add anywhere from 5 to 50 microns to the thickness of the material. Professional manufacturers figure out these changes in size before they start machining. They cut parts that are a little too small so that the finished coated part fits perfectly within the tolerance bands. To make sure the dimensions are correct after all the processing steps are done, this pre-compensation needs knowledge of certain treatment methods and the thickness ranges that are normal for them.

3.What certifications should I require from precision component suppliers?

ISO 9001:2015 is a standard for quality management systems that can be used in any industry. For aerospace uses, you need AS9100D approval that shows you have extra controls for important parts. Suppliers to the auto industry should be IATF 16949 certified. In addition to system approvals, you should also ask for material Mill Test Reports that confirm the chemical makeup and mechanical properties, Certificates of Conformance that prove the product meets specifications, and dimensional inspection reports from calibrated measuring equipment. This set of paperwork makes it possible to track and check things, which is important for regulated industries and quality-conscious businesses.

Partner with a Trusted Machined Precision Components Manufacturer

YIZHI MACHINERY offers high-quality precision manufacturing services to businesses. They have been in business for 15 years and are ISO certified. Our modern CNC machining centers, automatic grinding equipment, and smart heat treatment systems make parts that meet the HV 500–800 surface hardness requirements for 45# steel, 20CrMnTi, and 35CrMo, among other materials. We make custom parts for industries like mining, aerospace, and industrial machinery that have tight tolerances and great surface finishes. Our full customization process, which includes analyzing your needs, improving the design, manufacturing, checking for quality, and shipping around the world, makes sure that you get your order within 35 to 60 days. With shipping damage rates below 0.1% thanks to special packing and real-time tracking of shipments, we give your business the dependability it needs. Contact us at sales@yizmachinery.com to talk about your needs for machined precision components and get a detailed technical quote that fits your needs.
