The Art of Precision Machining for Castings

The art of precision machining for castings represents a sophisticated hybrid manufacturing approach that merges investment casting with advanced CNC machining operations. This combination delivers components with exceptional dimensional accuracy and surface quality that neither process could achieve independently. Precision casting machining solves critical challenges across industrial machinery, mining, and aerospace sectors by producing complex geometries with tight tolerances—often down to ±0.005mm—while maintaining cost efficiency through reduced material waste and shorter cycle times compared to machining entirely from solid stock.

Introduction

Today's industry needs parts that are both geometrically complicated and accurate to the micron level. This is exactly what precision casting machining does; it combines the ability to cast in almost any shape with the accuracy in dimensions that can only come from advanced machining. This guide is tailored to the needs of buying managers, design engineers, and original equipment manufacturers (OEMs) who work in mining, aerospace, and industrial machines.

Businesses can improve product quality and keep costs down by understanding how this process helps make decisions about the supply chain. In businesses where a broken part can have serious safety and financial effects, the process is especially helpful. When procurement workers are looking for important parts, they need to know how this manufacturing method is different from others and why it's important for long-term business success.

In the sections that follow, we'll talk about the basic technical concepts, comparative advantages, supplier selection criteria, and new technologies that are changing the way modern procurement strategies are used. These insights help you make smart choices when looking for manufacturing partners and making sure that the specs of parts are perfect for tough jobs.

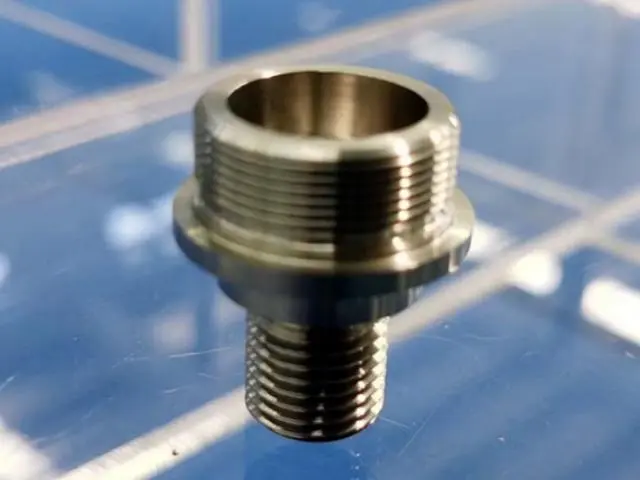

Understanding Precision Casting Machining

The Hybrid Manufacturing Process

Precision casting machining combines investment casting, which is also known as lost-wax casting, with CNC machining that comes after. The first step is to make a wax pattern that looks like the shape of the part that is wanted. Around these designs, ceramic shells form. These shells are then burned away, leaving holes for molten metal to flow through. During this casting phase, parts with a near-net shape are made. These parts have complex internal features and the best distribution of material.

The next step is machining, which includes processes like turning, milling, grinding, and drilling on important areas. This extra work makes it possible to get tight specs and better surface finishes that aren't possible with raw casts. The end result is parts that are accurate enough in size to be used in precise assemblies, but they still have the cost benefits and design freedom of casting.

Material Selection and Properties

High-performance steel types like 45# steel, 20CrMnTi, and 35CrMo can be used with our precision casting machining services. In different working conditions, these products have clear benefits. The 45# steel is easy to work with and has a moderate level of strength for most industrial uses. 20CrMnTi, on the other hand, has a harder surface because it has been carburized, which makes it perfect for wear-resistant parts in mining equipment.

The 35CrMo metal is very tough and doesn't wear down easily, which is important for aircraft parts that are loaded and unloaded many times. We get surface hardnesses between HV 500 and 800 through controlled heat treatment and machining. This makes sure that parts can handle tough working conditions. The choice of material has a direct effect on how well the component works, and our research team can help you find the best specs for your needs.

Process Flow and Technical Capabilities

The steps in the manufacturing process follow a standard but adaptable routine. Specifications, performance standards, and application limits are set during the initial requirement exchange. Then, our design team makes optimized casting patterns that make the best use of the material while still leaving enough room for machining—usually 1.5mm to 3mm on important surfaces.

The near-net-shape part is made by investment casting, which has general tolerances of about ±0.1mm per 25mm of dimension. After that, more CNC processes make sure that important parts are within ±0.005mm of perfection. There are different ways to finish the surface, such as galvanizing to protect it from rust, blackening for looks and light protection, and anodizing to improve the surface's properties. Unless otherwise stated, components keep their original color. This protects the integrity of the material and makes it easier to check.

Comparing Precision Casting Machining with Alternative Techniques

Advantages Over Complete CNC Machining

It takes too much material and machine time to make complicated parts out of solid billets. Precision casting machining fixes these problems by making castings that are close to net-shape and need very little material removal. This method cuts the cost of raw materials by 30 to 50 percent for parts with complicated shapes and greatly speeds up CNC cycle times.

The casting process creates holes, undercuts, and natural shapes that would need multiple setups and special tools to be machined from solid stock. After that, only the important mating surfaces, bearing shafts, and sealing faces are machined. This division of work takes advantage of the best parts of both processes to make parts that are both cost-effective and accurate where it means the most.

Superiority to Sand and Die Casting

Traditional sand casting has low prices for tools, but the finished product isn't accurate in terms of size and quality. Die casting can make very precise parts, but it can't handle complex shapes or a wide range of materials. When it comes to better physical stability and finer surface finishes, investment casting—the basis of this hybrid method—is better than both of the other options.

The roughness of the surface in sand casting is usually between 12.5 and 25 μm, and the tolerances are about ±0.5mm. Die casting makes these numbers better, but it can only be used with metals that have a lower freezing point, like zinc and aluminum. Before any machining is done, investment casting gives you surfaces with a roughness of 3.2 to 6.3 μm and an accuracy of ±0.1 mm. After that, certain areas are fine-tuned with a CNC machine until the Ra value is between 0.4 and 1.6µm.

Cost-Effectiveness Analysis

To make decisions about purchases, you need to know what factors affect costs across different manufacturing options. This process is most cost-effective for medium to high production numbers, usually 500 units or more, but we can also make prototypes that are just one piece. Pattern making and tooling are examples of setup costs that are spread out over the production quantities.

When you compare total costs, you can see big benefits. It could take 80 to 120 hours of CNC time to completely make complex valve bodies or pump impellers from metal. Precision casting means that the same parts only need 15 to 25 hours of grinding, with the focus being on important areas. The use of materials goes up a lot; buy-to-fly ratios often go over 90%, compared to 30–40% for full machining operations.

Key Benefits and Why Precision Casting Machining Matters

When you combine investment casting with advanced machining, you get powerful benefits that directly address procurement priorities. Knowing about these benefits helps to support decisions about which manufacturing method to use and which suppliers to work with.

• Dimensional Accuracy and Repeatability: Our method keeps tolerances the same across production runs, making sure that finished features are accurate to within ±0.005mm. This repeatability gets rid of the need for expensive fitting operations during assembly and makes sure that service parts can be switched out. Components meet strict geometric dimensioning and tolerancing (GD&T) standards that are needed for medical devices and aircraft uses.
• Superior Surface Quality: Surfaces that have been machined can have finishes with a Ra of 0.4 to 1.6µm, which is good for dynamic sealing and bearing interfaces. This surface quality stops wear before it starts, lowers friction losses, and makes parts last longer. Industries that need leak-proof parts or clean surroundings depend on these surface features to keep their operations running smoothly.
• Material Efficiency and Sustainability: Near-net-shape casting cuts down on trash, which lowers the cost of raw materials and has a smaller effect on the environment. The method makes 70% less waste than traditional methods of machining, which helps with environmental efforts and makes the process more cost-effective. Lessening the amount of material used also speeds up heating and processing processes that use a lot of energy.
• Design Optimization Opportunities: The casting phase makes it possible to make parts with complex internal shapes that would not be possible with normal machining. Cooling passageways, weight-reduction pockets, and fluid flow paths are all built right into the designs of the parts. This feature helps improve the performance of aircraft turbine parts, hydraulic manifolds, and heat exchanger systems.
• Production Scalability: Our manufacturing capacity can handle a wide range of order amounts, from small prototypes to production runs of more than 10,000 pieces. Standardized processes make sure that quality is the same no matter how big or small the batch is, and flexible schedule meets the needs of just-in-time delivery. This ability to grow or shrink makes the supply chain stable as customer needs change.

All of these benefits help with the main issues of purchasing, which are making sure quality, keeping costs low, and making sure the supply chain works well. Precision casting machining is used to make parts that work consistently in tough situations where failure would have major effects.

Choosing the Right Precision Casting Machining Supplier

Essential Certification and Quality Standards

The first step in evaluating a supplier is to make sure they have the right certifications and quality control systems in place. ISO 9001 certification shows basic quality control skills, while standards specific to an industry, like AS9100 for aerospace applications, show more advanced knowledge. We keep our ISO approval and follow strict quality standards that we've created over 15 years of production.

The ability to document is just as important. For each production lot, suppliers should give material certifications, dimensional inspection reports, and records of how the materials were sourced. Our quality system creates full paperwork packages that include data from coordinate measuring machines (CMMs), tests that don't damage the product, and checks of its chemical composition. This openness helps with your new inspection systems and meeting regulatory standards.

Technical Capacity and Equipment

How well something can be made depends directly on how well the equipment and process are controlled. Check out vendors by looking at their CNC machines, heat treatment facilities, and testing tools. We use advanced measuring systems, intelligent heat treatment production lines, and high-precision gear grinding tools to make sure that the specs of our parts stay within acceptable ranges across all production volumes.

Customization and Engineering Support

When working on complicated projects, engineers need to work together instead of just buying things from suppliers. Check out how suppliers communicate requirements, improve designs, and solve problems. Our standard process starts with in-depth technical talks to figure out what performance needs and application limits there are. CAD models, finite element analysis, and design for manufacturability suggestions should all be part of design engineering help.

Logistics and Delivery Performance

The value of a component doesn't mean anything if deliveries are late or goods are damaged when they appear. Check the logistics skills of the seller, such as their packing options, shipping choices, and tracking systems. Precision casting machining components are protected by custom shock-absorbing cushioning layers and protective wooden boxes that are made just for delicate parts.

Transport damage rates stay below 0.1% thanks to a wide range of safety measures that take into account how fragile precision made surfaces are. Multiple shipping methods, such as sea freight, air freight, and rail services, give you the freedom to balance the need for fast arrival with the need to stay within your budget. By keeping an eye on shipments from the time they leave the plant until they arrive at the customer, real-time tracking tools make the whole supply chain more visible during transit.

Future Trends and Innovations in Precision Casting Machining

Automation and Smart Manufacturing

More automation and data-driven process control are becoming common in manufacturing technology. Manufacturing casting shells, adding parts, and inspecting them are now all done by robots, which are more consistent than human methods. These investments in automation make production volumes more consistent while reducing the need for human labor.

AI-Driven Quality Control

Quality inspection goes from checking samples to full-on automatic testing with the help of artificial intelligence. Computer vision systems look at casting surfaces for flaws at speeds and with levels of accuracy that humans can't match. Instead of using statistical samples, these systems look at all of the production to find porosity, cracks, and differences in size. Integration with CMM equipment creates detailed inspection reports without having to enter the data by hand.

Additive Manufacturing Integration

More and more, hybrid production methods use both adding and taking away steps. Three-dimensional printing makes it easier and faster to make complicated casting patterns than the old ways of making patterns. This feature speeds up the creation of prototypes and allows for design changes without having to make expensive changes to the tools. Precision casting machining's future is shaped by these biological shapes that are strong but don't weigh much.

Strategic Implications for Procurement

These changes in technology make possibilities for procurement workers who want to work with suppliers as strategic partners instead of just buying things. Getting involved early in the creation of a product lets you improve the manufacturing process before the ideas become fixed. Building collaborative relationships helps with ongoing efforts to make things better and cheaper throughout the span of a product.

Conclusion

Precision casting machining strikes the best balance between geometric complexity and measurement accuracy for important parts used in mining, aircraft, and industrial machines. The hybrid method combines the design freedom of investment casting with the accuracy of CNC machining to make parts that would be too expensive to make any other way. Different working conditions can be met with materials like 45# steel, 20CrMnTi, and 35CrMo. Surface treatments and hardness ranges from HV 500 to 800 ensure long-term performance. Criteria for choosing a supplier that focus on certifications, technical ability, and logistics help buyers find production partners that can help their business succeed in the long run.

FAQ

1.What tolerances can precision casting machining achieve?

Before they are machined, investment casting parts have general tolerances of about ±0.1mm per 25mm of dimension. After that, CNC operations make sure that important parts are within ±0.005mm of being perfect in terms of their diameters, flatness, and position. This mix gives you the benefits of physical complexity from casting along with the accuracy of fully made parts when it comes to size.

2.How does material selection affect component performance?

The choice of material has a direct effect on its mechanical qualities, its ability to fight corrosion, and its reaction to heat treatment. The 45# steel is easy to work with and has a modest level of strength for most commercial uses. 20CrMnTi, on the other hand, has a harder surface because it has been carburized, making it perfect for mining parts that need to be resistant to wear.

3.What production volumes justify precision casting machining?

The process is most cost-effective when it makes medium to large amounts of products, usually 500 units or more, because the prices of the tools are spread out over many units. We do, however, accept orders for a single prototype piece, which helps with product development and specialized applications without requiring a minimum order quantity. Comparing the costs of partial CNC machining to full CNC machining shows big saves above 100 units for parts with complex shapes.

4.How long does production take from order to delivery?

Depending on the difficulty of the parts, the choice of materials, and the size of the order, standard production times vary from 35 to 60 days. This plan includes communicating the needs, making sure the design is correct, casting the metal, machining operations, checking the quality, and packing it safely. For pressing needs, faster deadlines are possible through better planning of schedules and other transportation options. Precision casting machining timelines can be expedited through optimized logistics.

Partner with YIZHI MACHINERY for Precision Casting Machining Excellence

YIZHI MACHINERY has been providing precision casting machining services to the mining, aerospace, and industrial machinery industries across the United States for 15 years. Our production methods are ISO-certified and use both investment casting and advanced CNC operations to make parts out of 45# steel, 20CrMnTi, and 35CrMo that have a surface hardness of HV 500 to 800. We keep the rate of shipping harm below 0.1% by using customized protective packing and helping with operations across multiple channels. Our engineering team works together to make sure that the parts we make meet your exact requirements within 35 to 60 days. They do this by communicating your needs, improving the design, processing them for production, and checking their quality. Contact our team at sales@yizmachinery.com or visit yizhimachinery.com to talk about the parts you need and get a detailed quote.

References

1. Campbell, John. "Complete Casting Handbook: Metal Casting Processes, Metallurgy, Techniques and Design." Butterworth-Heinemann, 2015.

2. Kalpakjian, Serope and Steven Schmid. "Manufacturing Engineering and Technology." Pearson Education, 2014.

3. American Foundry Society. "Investment Casting: Principles and Applications." Technical Publication Series, 2018.

4. ASM International Handbook Committee. "ASM Handbook Volume 15: Casting." ASM International, 2008.

5. Groover, Mikell P. "Fundamentals of Modern Manufacturing: Materials, Processes, and Systems." John Wiley & Sons, 2020.

6. Society of Manufacturing Engineers. "Precision Machining Technology: Workbook and Projects Manual." Cengage Learning, 2016.
