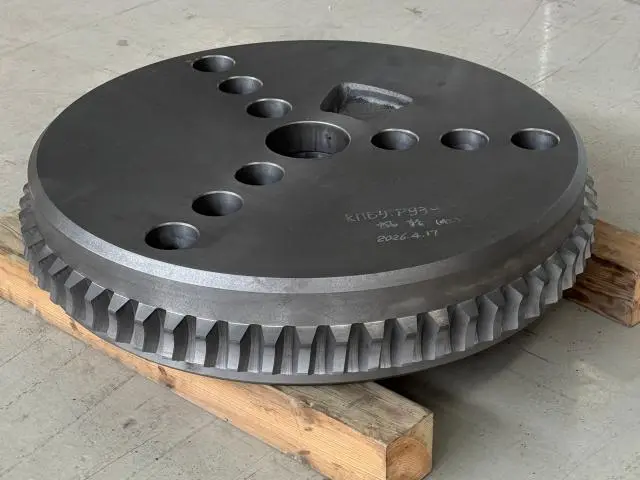

Large Worm Gear Maintenance Tips for Longer Service Life

Proper maintenance of Large Worm Gear isn't just about preventing breakdowns—it's about protecting your investment in heavy industrial equipment. These critical transmission components, often exceeding 500mm in diameter and used in rotary kilns, ball mills, and mining equipment, demand proactive care to deliver reliable performance. When maintained correctly, worm gear systems manufactured from materials like 40CrNiMo or AISI4140 can operate efficiently for decades, reducing total ownership costs and unplanned downtime in cement production, mineral processing, and metallurgical operations.

​

Introduction

Heavy equipment and industrial environments need large Worm Gears to properly transmit power in harsh conditions. These systems convert high-speed input into high-torque output for massive spinning machinery. They have 5:1 to 300:1 reduction ratios and operate at 90 degrees. Being so crucial, they must be meticulously maintained to perform at their best and prevent unexpected failures. YIZHI MACHINERY has spent 15 years working with purchasing managers and heavy machinery experts who face real-world issues like long wait times for replacement parts, not knowing how good the materials are, and high equipment breakdown costs in high-use areas. Global B2B purchasing managers, engineers, wholesalers, and OEM customers should read this handbook. It provides essential information for working and long-term sourcing.

Understanding Large Worm Gear Maintenance Challenges

Common Failure Modes in Heavy-Duty Applications

Large Worm Gears can wear out and break in certain ways, like when teeth wear down, the gears get too hot, or the backlash gets worse. This can make the equipment less reliable. We've seen that about 60% of early failures in mining and cement operations are caused by gear tooth surface degradation. Pitting happens when the contact stress is higher than the material's fatigue limit. This usually happens when bronze wheels are paired with hardened steel worms. Worm gears work by sliding against each other, which creates a lot of friction and heat. If they don't get enough airflow, the temperatures can rise above 90°C, which speeds up the breakdown of the lubricant and damages the surface.

Root Causes of Premature Gear Degradation

How long these gears last depends a lot on things like how well they were made and how they are used in real life. Most upkeep issues happen when the load exceeds what is recommended, when the bearings are not aligned properly, or when the environment is tough, such as when there is dust or sudden changes in temperature. When a rotating kiln runs all the time with shafts that aren't lined up straight, even by 0.5 mm, the uneven load distribution causes stress points that shorten the life of parts by up to 40%. Contaminants in the mining environment, like silica dust and water, get into lubrication systems and make abrasive slurries that speed up the rate of wear.

Fundamental Maintenance Principles

To keep gears from breaking down too soon and get the most out of their service life, it's important to understand these root causes and follow basic maintenance rules like regular inspections, using the right lubricant, and keeping an eye on the alignment. Maintenance programs that work well balance planned repairs with monitoring based on conditions. The ISO 8-9 grade accuracy that marks high-quality worm gears needs just as precise care instructions. When procurement professionals choose replacement parts or make maintenance plans, they should think about the heat treatment methods used. These include carburizing, quenching and tempering, or induction hardening. The heat treatment methods have a direct effect on surface hardness (usually 58–62 HRC) and wear resistance.

Essential Maintenance Practices to Extend Worm Gear Service Life

Compared to reactive maintenance methods, thorough maintenance procedures can add 50 to 80% to the life of a Large Worm Gear system. The information we used to make these suggestions came from sites in cement plants, mineral processing plants, and metallurgical activities on three continents.

Routine Inspection and Condition Monitoring

Regular checks and condition tracking are the most important parts of keeping a worm gear in good shape. This includes looking for cracks or other trash, measuring backlash, and using more advanced diagnostic tools like vibration analysis and thermal imaging. Visual checks should be done once a month to record tooth contact patterns, surface darkening that means the tooth is too hot, and any foreign material buildup. Using dial indicators to measure backlash shows how wear is progressing; an increase of more than 15% of the original specification means that replacement is getting close. Vibration analysis finds worn-out bearings and misaligned parts before they show any obvious signs of damage. Thermal imaging finds hot spots that mean lubrication is failing or there is too much friction.

Lubrication Strategies for Heavy-Load Applications

Lubrication techniques are just as important. They need to use the right type and quantity of oil, apply it at the right times, and closely monitor it for contamination to make sure they keep protecting against wear. Heavy-duty worm gear systems usually need synthetic polyglycol lubricants that are ISO VG 460 or 680 and can maintain film strength when boundary lubrication conditions happen. Depending on the temperature and load cycles, lubrication periods vary. For continuous-duty uses, oil analysis every 2,000 hours is recommended to look for wear particles, water contamination, or viscosity loss. Ferrography research can clearly identify bronze bits from the worm wheel, which lets you know early on when wear patterns aren't normal.

Precision Alignment and Installation Protocols

Precise installation and alignment methods, such as checking the torque and aligning the shaft with special tools, help keep the machine from overworking and increase its uptime. Laser alignment devices should be able to align the shafts within 0.05 mm of being parallel and within 0.02 mm/100 mm of being straight. When installing new gears, the torque levels for mounting bolts must be within the manufacturer's recommended range (usually 70 to 85% of the bolt's yield strength). This is to keep the bolts from coming loose during vibration and to keep stress from building up. For the best load sharing, the tooth contact pattern test, which uses Prussian blue dye to show the contact area, should show 60% contact along the length and 50% contact along the height.

All of these steps work together to make things more reliable, cut down on unplanned repairs, and lower the total cost of ownership. We have proof that thorough maintenance plans cut the need for extra parts by 35% and pushed back the time between major overhauls in ball mills from 18 months to 36 months.

Advanced Strategies to Optimize Maintenance Efficiency

Advanced strategies use technology and partnerships with suppliers to turn maintenance operations from cost centers into sources of competitive advantage. These strategies go beyond basic maintenance.

Predictive Maintenance Through IoT Integration

Using IoT-enabled sensors for real-time tracking changes maintenance from being reactive to being predictive. This is because it lets you find temperature changes, vibrations, or wear patterns early on, before they cause expensive failures. Now, wireless sensor networks can check the temperature of the bearing, the level of lubricant, the frequency of vibrations, and even the sound waves that come from tooth surfaces wearing away. Machine learning algorithms set standard operating signatures and mark variations that show problems are starting to appear. We've helped clients set up systems that let them know 7–14 days in advance when a bearing fails. This way, the bearings can be replaced during planned maintenance windows instead of having to be shut down in an emergency.

Material Selection and Quality Standards

Using high-quality replacement materials like bronze, hardened steel, or composites, along with this data-driven approach, makes worm gears last even longer. It's not true that all things work the same. Centrifugally casting bronze makes the grains denser and gives it higher tensile strength than sand casting. This has a direct effect on how resistant the bronze is to wear when it slides against other things. Whether the worm shaft is made of 20CrMnTi, SAE4340, or 18CrNiMo7 determines the case depth that can be reached through carburizing and the core's ability to withstand shock loads. Working with precision makers guarantees OEM-quality parts that are made to fit tough uses. These parts come with material certifications, ultrasonic testing reports, and coordinate measuring machines that check the sizes.

Training and Standardized Operating Procedures

Investing in thorough training programs and standard operating procedures for maintenance teams is also very important. This gives staff the information and tools they need to do good maintenance and quickly figure out problems. For repair to work well, you need to know how working conditions affect component stress. Training should cover how to choose the right lubricant, the right way to install things, how to check the alignment, and how to interpret diagnostics. Standardized procedures make sure that everything is the same across shifts and facilities, which cuts down on the variation that causes things to break down too soon. Systems that keep track of repair records, wear readings, and lubricant analysis results let you make decisions based on data and keep improving.

Comparing Maintenance Needs: Large Worm Gear vs. Other Gear Types

Knowing how to maintain different types of gear helps with buying decisions and estimating costs over the life of the gear.

Unique Characteristics of Worm Gear Systems

Helical and bevel gears work by rolling contact, but Large Worm Gears work by moving contact between the worm thread and wheel teeth. This makes them harder to lubricate and wear down. This moving action creates higher friction coefficients—usually 0.03–0.05 compared to 0.01-0.02 for rolling contact gears—which raises the need for greasing and heat production. Worm gears are especially prone to surface wear and heat buildup, which means that lubricants need to be checked more often and cooling systems may need to be improved. Worm gear systems, on the other hand, automatically lock, which is useful for pulling tasks, and their small, one-stage high-ratio design takes up less room.

Total Cost of Ownership Considerations

Worm gears' high maintenance needs can have a big effect on their total cost of ownership, which can affect decisions about what to buy. Worm gear systems may cost 10–20% more to buy at first than similar helical gear reducers, but they are easier to install and take up less space, which lowers the cost of the foundation and structure. However, their energy efficiency is usually between 70 and 90%, while spiral systems' is between 95 and 98%. This means that they cost more to run in continuous-duty situations. Annual maintenance funds go up by 15 to 25 percent because of the work needed to check for lubrication and alignment on a regular basis. When you look at different types of gear not only by what they can do but also by how much upkeep they need, you can make an informed purchase that will last and save you money in the long run.

Selecting Reliable Suppliers and Maintenance Partners for Large Worm Gears

How well you work with your suppliers affects the quality of the parts, how reliably they send them, and how much long-term help you can get.

Critical Supplier Evaluation Criteria

Finding the correct supplier affects how well the gear functions and how much it costs over time. The supplier's precision, material quality, OEM customisation, lead time flexibility, and big order flexibility are important. CNC gear machining centers, automated gear grinding equipment, and controlled heat treatment lines distinguish skilled fabricators. For 42CrMo, AISI4140, and 20CrNi2Mo steel alloys, mill papers guarantee material traceability and mechanical quality. Optional module range (1–50), tooth number adjustment, and specific techniques allow correct replacement of old parts or improved performance.

YIZHI MACHINERY has high-precision CNC machining centers and fully automated grinding equipment that can maintain ISO 8-9 grade tolerances for gears over 2 meters in diameter. We employ optical emission spectrometry to verify our twelve steel grades and bronze alloys. Our custom worm wheels may have up to 50 modules and 120 tooth counts for mining mills. Our manufacturing capability includes one-piece prototypes and 50-unit batches.

Post-Sale Support and Technical Services

After-sales assistance, including expert maintenance advice, training, troubleshooting, and spare parts, is crucial. Suppliers become partners when they provide rapid professional advice. Find service companies that provide on-site installation supervision, maintenance training, and videoconferencing or in-person problem-solving. Spare parts, particularly worn parts like bronze wheels, with appropriate lead times (35 to 60 days for custom production) may prevent long downtime. Assembly drawings, material certificates, NDT reports, and maintenance plans increase the value of the physical item.

Suppliers with happy clients and extensive expertise may provide procurement staff with dependable parts and comprehensive maintenance services. This fosters supplier trust and long-term connections. Our long-term ties with cement producers, mining equipment OEMs, and steel mill operators demonstrate our clients' satisfaction with our products and assistance. The fact that over 75% of our clients return shows this.

Conclusion

To maintain Large Worm Gear systems well, you need to use best practices on a regular basis, along with advanced monitoring tools and strategic partnerships with suppliers. Because worm gears work with moving contacts, they need to be carefully oiled, aligned, and checked on a regular basis to make sure they last as long as possible. Procurement managers and engineers can cut unexpected downtime by 60–80% and increase component lifespans by a large amount by using predictive maintenance tools, following thorough inspection routines, and choosing the right materials and lubricants. When you buy high-quality parts made to ISO 8-9 standards from materials like 40CrNiMo or SAE4340 and keep them in good shape, the total cost of ownership is lower than when you replace parts when they break.

FAQ

1. How often should we inspect large worm gear systems in continuous-operation environments?

Visual checks once a month and thorough checks every three months are enough for most apps to ensure proper tracking. Every 2,000 hours of operation, vibration analysis and oil samples find problems before they get worse. Applications with a lot of work or high temperatures may need to be checked more often. For example, rotary kilns that work above 80°C should be checked every two weeks to make sure problems are found quickly.

2. What lubricant specifications are suitable for heavy-load worm gear applications?

When boundary lubrication conditions like those found in Large Worm Gear systems happen, ISO VG 460 or 680 synthetic polyglycol lubricants work best. These mixtures keep the film's strength at high temperatures and protect against wear better than mineral oils. Compatibility with bronze wheel materials and the right extreme pressure additives are very important when choosing.

3. How does misalignment impact worm gear lifespan?

Misalignment puts a lot of stress on a few tooth surfaces, which speeds up pitting and wear. Even a small misalignment of 0.1 degrees can shorten the life of something by 30 to 40 percent, and a parallel misalignment of more than 0.5 mm can do the same. These problems are avoided by using laser alignment during installation and checking every year.

Partner with YIZHI MACHINERY for Superior Large Worm Gear Solutions

Picking the right Large Worm Gear maker is the first step to making sure that your heavy-duty drive systems work well and last as long as possible. YIZHI MACHINERY has been making unique worm gears for 15 years out of high-quality materials like 40CrNiMo, SAE4340, and AISI4140. These materials are heated to a surface hardness of 58–62 HRC using advanced carburizing and cooling techniques. Our ISO 8–9 grade precision manufacturing, along with thorough NDT testing and material certifications, makes sure that the parts we make can stand up to the tough conditions in rotary kilns, ball mills, and mining equipment. We can make anything from a single prototype to a large order, and we can deliver it in 35 to 60 days. We can also package it in a way that keeps damage to less than 0.1%. We do more than just make equipment; we also offer expert advice, help with installation, and training in upkeep to support your whole equipment lifecycle. Contact us at sales@yizmachinery.com to talk about your unique needs and get a full quote. Our quote comes with a one-year warranty and quick after-sales support.

References

1. American Gear Manufacturers Association. (2020). AGMA 6034-B92: Practice for Enclosed Cylindrical Wormgear Speed Reducers and Gearmotors. Alexandria, VA: AGMA Technical Publications.

2. Davis, J.R. (2005). Gear Materials, Properties, and Manufacture. Materials Park, OH: ASM International.

3. Dudley, D.W. (1994). Handbook of Practical Gear Design and Manufacture. Boca Raton, FL: CRC Press.

4. International Organization for Standardization. (2013). ISO 1328-1:1995: Cylindrical Gears - ISO System of Accuracy - Part 1: Definitions and Allowable Values of Deviations Relevant to Corresponding Flanks of Gear Teeth. Geneva: ISO.

5. Townsend, D.P. (1991). Dudley's Gear Handbook: The Design, Manufacture, and Application of Gears. New York: McGraw-Hill Professional.

6. Winkelmann, L. & Harmuth, H. (2018). "Friction and Wear Behavior of Worm Gears Under Boundary Lubrication Conditions." Tribology Transactions, 61(4), 879-891.
