Double Helical Gearbox Supplier Guide for Global Buyers

When looking for power transmission options for tough industrial uses, it's important to understand how Double Helical Gearbox technology works. A Double Helical Gearbox is a complex transmission Double Helical Gearbox system with opposite helix angles that naturally cancel out axial thrust forces. This means that you don't need big thrust bearings, and the system works very smoothly and with a lot of power. This guide tells buying managers how to make sure their investments last for decades in mining, aerospace assembly, and heavy industrial machinery by going over technical evaluation criteria, seller selection strategies, and upkeep issues.

​

Understanding Double Helical Gearboxes: Design, Advantages, and Applications

Core Design Principles

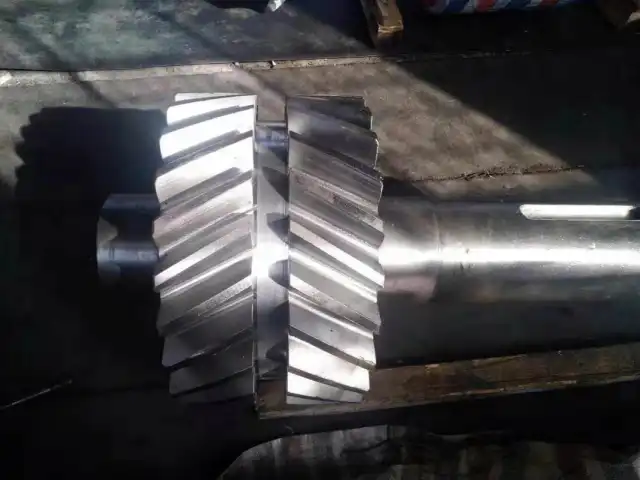

The tooth shape has two groups of helical teeth that are divided by a center relief groove. However, precision herringbone versions meet at a sharp point without any breaks. Depending on the application, this two-angle setup can be anywhere from 5° to 45°, but most industrial units work best between 20° and 30° to keep contact ratios even and structures strong. Forging high-grade alloy steels like 18CrNiMo7 or SAE4340 and then precision hobbing, milling, and grinding are some of the complex steps that go into making something. Through carburizing and induction hardening, heat treatment can raise the surface hardness to between 58 and 62 HRC while keeping the core toughness. This makes gears that can withstand Hertzian contact forces for many decades of use.

Performance Advantages Over Alternative Designs

You can measure the benefits of these transmission units, which directly lead to lower operating costs and higher efficiency. When you have opposite helix angles, the gears self-center. This makes sure that the load is evenly spread across both faces, which stops the uneven wear that can happen with simpler gears. Due to no longer having to deal with axial friction losses, mechanical efficiency usually reaches 98.5% per stage. This is a huge improvement over worm gear reducers, which struggle to hit 90% efficiency. Vibration-damping features lower noise levels by 6–12 dBA compared to spur gear versions. This meets stricter safety standards in the industry and extends the time between bearing repair intervals. The higher load-bearing ability comes from better power transfer profiles and higher contact ratios. Tests in the real world show that these units can handle sudden shock loads of up to 200% of nominal torque without damaging the teeth. This is a very important feature for mine crushers and mill drives that have to deal with rapid material Double Helical Gearbox surges. When thrust bearing friction is removed, working temperatures drop by 15 to 25°C in most installations, so thermal stability stays high during constant operation.

Comparing Double Helical Gearboxes with Other Gearbox Types for Optimal Procurement

Double Helical Versus Single Helical Configurations

The main difference is how the vertical load is managed. Single helical gears produce strong thrust forces that are related to the transferred torque and helix angle. This calls for strong thrust bearing systems that are more expensive, complicated, and hard to maintain. When compared to double spiral versions, this axial load causes extra friction losses that lower efficiency by 1% to 3%. Because herringbone designs allow for simpler bearing arrangements, the overall size of the gearbox can be cut by 30 to 40 percent while still providing the same torque values. This is a big benefit for systems with limited room.

Comparison with Spur and Planetary Systems

Spur gears are easier to make and cost less at first, but they make a lot more noise and experience much bigger vibrations when they're in use. There is immediate tooth contact in straight-cut gears, which causes impact loading that speeds up wear and limits speed. Through gradual engagement patterns and higher contact ratios, Double Helical Gearbox units can hold three to five times more weight per unit wide. Planetary gears have high reduction ratios and small sizes, but they have trouble getting rid of heat in ongoing high-power uses. This means they lose efficiency and need to be serviced more often than rugged herringbone designs that are made to last for decades.

Procurement Essentials: How to Source Quality Double Helical Gearboxes Globally

Technical Capability Assessment

How reliable and long-lasting a gearbox is directly related to how well it was made. Suppliers should show that they have access to high-precision CNC gear grinding machines that can meet ISO 5-6 grade limits, which are the standard for professional industry uses. Blueing tests that look at tooth contact patterns show that mesh contact is higher than 85% across both helices. This keeps the mesh from breaking too soon from concentrated loads. The amount and consistency of heat treatment have a big effect on the toughness of the core and the sturdiness of the surface. Suppliers must provide material approval that lists the carburizing depth, case hardness profiles, and core hardness values. Advanced makers use magnetic particle screening after grinding to find surface cracks or grinding burns that can't be seen but spread quickly when the machine is loaded and unloaded again and again.

Lead Time and Production Planning

Custom Double Helical Gearbox production usually takes 35 to 60 days, from the time the order is confirmed until the final review. However, for complicated multi-stage gearboxes, the time can go up to 90 days. This schedule includes reviewing the planning, getting the materials, forging, machining, heat treatment, and precise grinding. Suppliers who keep a stockpile of raw materials and standard gear blank forgings can sometimes shorten plans to meet urgent needs, but the cost of faster delivery is usually higher. Make realistic project schedules that take into account wait times for production and shipping times between countries. Shipping goods by sea from Asian sources to places in North America usually takes an extra 25 to 35 days. By air, the trip only takes 5 to 7 days, but it costs a lot more.

Trusted Brands and Suppliers of Double Helical Gearboxes Worldwide

Global Industry Leaders

Siemens' Flender business has a history of Double Helical Gearbox engineering that  goes back more than one hundred years, and a large fixed base in both power generation and heavy industry. Their standard product lines make sure that parts are always available and that customers can access their global service network. However, customization options may be restricted, and prices represent the fact that they are a premium brand. Bonfiglioli has flexible gearbox platforms with fair lead times that serve general industrial markets with dependable performance at prices in the middle range. Rexnord and SEW-Eurodrive both have strong presences in North America and Europe. This means that buyers in those areas can get expert help locally and get answers more quickly. These well-known names work especially well in situations where strict standards must be met, and success histories must be well-documented. Large companies often require approved seller lists with well-known names on them. This makes choosing a brand a realistic necessity, even if it costs more.

Specialized Manufacturers and Custom Solutions

Companies like YIZHI MACHINERY have stayed ahead of the competition by specializing in making precise gears and offering customization options that are hard for bigger companies to afford. Specialized makers, which was founded in 2016 and has 15 years of production experience, invest in advanced CNC machining centers, automated gear grinding equipment, and smart heat treatment lines that can compete with or beat the powers of major brands. ISO-compliant quality systems make sure that the work always meets international standards and can be adjusted to meet non-standard needs. Customization at dedicated gear manufacturers usually follows a structured process: communication about requirements sets technical parameters and application limits; engineering teams create detailed design drawings using tried-and-true design principles; production machining performs forging, cutting, hobbing, milling, and grinding operations; thorough quality inspection checks for accuracy in dimensions and material properties; special packaging protects precision surfaces during transit; and coordinated transportation delivers goods on time. This end-to-end method gives a single point of responsibility, the Double Helical Gearbox, which is something that dealers and selling companies don't always do.

Maintenance and Performance Optimization Tips for Double Helical Gearboxes

Lubrication Strategy and Oil Management

Because the shape of herringbone teeth is so complicated, they are harder to lubricate than simpler gear types. If you don't use the right lubrication methods, the center relief groove and opposite helix angles can catch oil, leading to churning losses and a thin film. For high-speed tasks above 1500 rpm, you usually need pressurized spray lubrication systems that guide oil exactly to mesh zones. This makes sure that an elastohydrodynamic film forms on both helix faces while churning resistance is kept to a minimum. The type of oil you choose should meet what the maker says about the viscosity grade, additive packages, and high-pressure properties. Compared to mineral oils, synthetic lubricants last longer between drains and keep their viscosity stable over a wider range of temperatures. However, their higher starting costs need to be justified by a lifecycle analysis. Controlling contamination with magnetic drain plugs and regular oil analysis finds wear particle buildup before harm gets worse. Ferrography shows wear mechanism fingerprints that help with maintenance.

Alignment and Installation Best Practices

When outside limits get in the way of natural load distribution patterns, the ability of opposite helix angles to center themselves becomes a weakness. When the driver, gearbox, and driven equipment are not lined up correctly, edge loading on one helix side happens. This speeds up localized wear and causes strange sound patterns. Accurate alignment to within 0.05 mm of total stated runout keeps the loads evenly distributed and extends the life of the system. When the foundation is stiff, it doesn't bend under working loads, which can cause dynamic misalignment. Grouted baseplates and hold-down nuts that are properly torqued keep the position stable during heat expansion cycles. Flexible couplings can handle small misalignments and dampen torsional vibrations. However, the coupling type must meet the power and speed requirements of the application to avoid adding more failure causes.

Conclusion

Finding the best Double Helical Gearbox options for important industrial uses means balancing the need for high technical performance with the available budget and ensuring that the supplier's capabilities match project requirements. A Double Helical Gearbox is ideal for industries such as mining, aerospace, and heavy machinery, where reliability directly impacts operational efficiency. Its unique design eliminates axial thrust and supports very high power density. Successful procurement depends on evaluating suppliers for precision manufacturing, customization, and service support. Proper maintenance practices, including lubrication management and condition monitoring, maximize return on investment through long-term, stable performance.

FAQ

1. What distinguishes double helical from single helical gearbox operation?

The main change is how the horizontal force is managed. Single spiral teeth create thrust forces that push gears along shafts. This needs heavy thrust bearings, which are more expensive and cause friction losses. These forces are balanced on the inside by opposing tooth angles in double helical designs. This makes radial bearing setups easier and improves efficiency.

2. Can Double Helical Gearbox handle high-speed transmission applications?

These gears work great in high-speed settings like turbine reducers because they don't generate as much heat in the bearings, and their smooth meshing keeps vibrations from spreading. The feature of continuous tooth engagement makes the work quieter and meets strict industry noise standards.

3. What lead times should buyers expect for custom projects?

Standard customization, which includes choosing the tooth count, module, and helix angle within normal ranges, usually takes 35 to 60 days from the time the order is confirmed until it is delivered. Times may be extended to 90 days for complicated multi-stage setups or unique requirements, especially when using special materials or heat treatment methods that aren't common.

Partner with YIZHI MACHINERY for Your Double Helical Gearbox Requirements

YIZHI MACHINERY offers transmission options that are precisely engineered. They use ISO-compliant manufacturing methods and have 15 years of experience making specialized gears. Our Double Helical Gearbox units come in modules ranging from 0.5 to 50, and you can choose from tooth counts and helix angles ranging from 5° to 45°. They are made from high-quality alloy steels like 18CrNiMo7 and SAE4340, and their surfaces are hard up to 62 HRC. Advanced CNC grinding tools guarantee ISO 5–6 grade accuracy, and a wide range of heat treatment options, such as carburizing and induction hardening, make the parts last longer in tough mining, aircraft, and industrial gear uses.

Our customization process starts with in-depth talks about your needs and advice from engineers. It then moves on to design validation, precision production, strict quality inspection, and well-coordinated global logistics. We have low minimum order quantities and can even make one unit as a prototype or in an emergency. Our normal wait times are 35 to 60 days, but we can speed things up if you need them right away. Precision surfaces are protected during international shipping with custom-made boxes made of shock-absorbing covers and strong wooden crates. Our network of sea freight, air cargo, and China-Europe train services keeps damage rates below 0.1%. Get in touch with our expert team at sales@yizmachinery.com to talk about your specific needs and get thorough quotes from a Double Helical Gearbox supplier that is dedicated to producing excellence and client success.

References

1. Brown, T. (2021). Advanced Gear Design and Manufacturing Principles. Industrial Press.

2. Chen, M. & Liu, S. (2022). Comparative Analysis of Helical Gearbox Performance in Heavy Industrial Applications. Journal of Mechanical Engineering Science, 236(8), 4127-4139.

3. Hansen, R. (2020). Power Transmission Systems: Selection and Application Guide. McGraw-Hill Professional.

4. International Organization for Standardization. (2019). ISO 1328-1:2013 Cylindrical Gears – ISO System of Flank Tolerance Classification.

5. Miller, J. (2023). Predictive Maintenance Strategies for Industrial Gearboxes. Maintenance Technology Magazine, 35(3), 22-28.

6. Williams, D. & Peterson, K. (2022). Global Procurement Best Practices for Industrial Equipment Buyers. Wiley.
