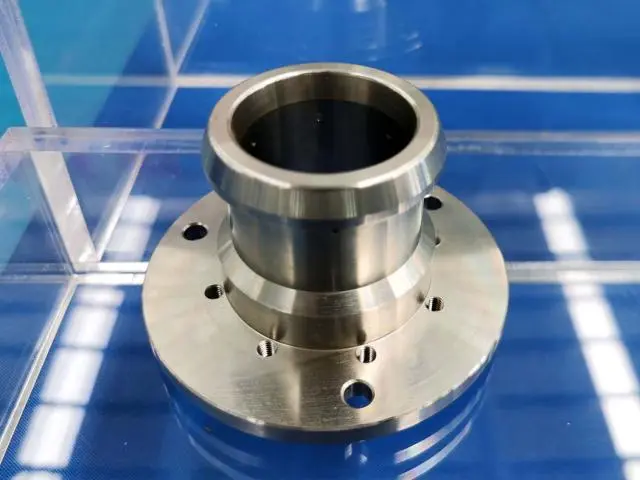

Custom Precision Components: Design, Production, and Applications Explained

Custom precision components represent highly engineered mechanical parts manufactured to exacting specifications, typically within micron-level tolerances. These specialized parts differ fundamentally from off-the-shelf hardware through their tailored geometries, material selection, and application-specific design features. Industries like aerospace, mining, and industrial machinery rely on these components where dimensional accuracy directly impacts system reliability and operational safety. Understanding how precision parts are designed, manufactured, and applied helps procurement professionals make informed decisions that reduce downtime and improve long-term performance.

​

Understanding Custom Precision Components

What Sets Precision Parts Apart

There are two types of parts used in manufacturing: standard catalog items and engineered precision parts. Precision-engineered parts solve specific operational problems, while standard parts are used in a wide range of situations. Standard parts just can't do the job when your hydraulic system needs a spool valve that can keep its seal under 3,000 PSI of pressure or when your mining equipment needs gears that can work in harsh environments all the time.

Standard processes can't get to the level of accuracy that precision manufacturing can. We're talking about keeping measurements within ±0.002mm and surface finishes that are measured in micrometers of roughness. These abilities come from high-tech CNC lathes, automatic grinding tools, and controlled heat treatment methods that make the qualities of materials work best for certain uses.

Material Science Meets Application Demands

The performance of a part in harsh environments depends on the materials that are used. High-carbon steels, such as 45# steel, are easy to work with and have a modest level of strength for most industrial tasks. When you need better wear resistance and core hardness, alloy steels like 20CrMnTi can be carburized to make the top layers harder while keeping the cores flexible. 35CrMo is often used in heavy-duty mining equipment because it is very strong and doesn't wear down easily.

Surface processes make parts last a lot longer than the qualities of the base material alone. Galvanizing protects against corrosion in damp places, blackening gives mild corrosion resistance and better looks, and anodizing makes surfaces that are hard and wear-resistant, which is especially useful for aluminum parts. These finishing steps work with the features of the base material to give you full performance packages that are perfect for your needs.

Designing Custom Precision Components for Optimal Performance

Collaborative Engineering Approach

For component design to go well, procurement teams and manufacturing engineers must communicate clearly about what is needed. We've found that projects go well when clients describe the functional needs, working environments, and performance standards in detail from the start. This joint process finds possible design problems early on, so expensive changes don't have to be made during production.

Tolerances in dimensions have direct effects on costs. It is much cheaper to specify a standard of ±0.005mm than ±0.002mm, since tighter tolerances need more work to be done on the machine, more time for checking, and maybe even different tools. Our engineering team helps clients figure out which dimensions need to be closely monitored and which ones can handle normal errors without affecting their function. This sensible method strikes a mix between the need for efficiency and the economics of manufacturing.

From Concept to Production-Ready Design

There are several important steps in the design phase. When engineers look at functional requirements to choose the right materials, they take things like operating temperatures, load conditions, and exposure to the environment into account. Careful attention is paid to geometric features. For example, sharp internal corners cause stress concentrations, while the right curves extend wear life. Changes in wall width have an effect on both how well the structure works and how efficiently it is machined.

Design choices are affected by how the heat treatment will work. For parts that need to be surface hardened, the material must be drilled deep enough to reach the required case hardness without changing the core qualities. During design reviews, we take these manufacturing factors into account to make sure that the plans can be easily turned into production processes. With this unified approach, you won't have the common issue of designs that look great on paper but are hard to make in real life.

The Production Process of Custom Precision Components

Material Selection and Preparation

Before production starts, the materials are checked using spectroscopic research to confirm the makeup of the metal. This step keeps materials from getting mixed up, which could hurt the performance of the part. Before they are used in production, raw materials for custom precision components are checked for flaws on the outside, correct measurements, and internal health.

In this first phase, planning for the heat treatment takes place. To get HV 500–800 surface hardness, materials like 20CrMnTi need to be carburized cycles, while cooling and hardening 35CrMo improves its strength and toughness. Our smart heat treatment production lines keep precise control over temperature and air quality, so the properties of each batch of materials are always the same.

Advanced Manufacturing Technologies

Here are the core manufacturing capabilities that deliver precision results:

1. CNC Machining Operations: Multi-axis CNC machines can handle complicated shapes by coordinating grinding, turning, milling, and drilling. When working with hard materials, these machines keep their positions accurate to within microns. Automatic tool management systems make sure that the cutting conditions stay the same throughout production runs. This is very important for making sure that all of the parts are the same size.

2. Precision Grinding: Surface finishes and physical accuracy can be reached by automated grinding tools that are not possible with traditional machining. Grinding processes make surfaces that have already been machined perfect by removing only the necessary material and keeping an eye on the accuracy of the dimensions and the roughness of the surface. This method works especially well for surfaces that bear weight, faces that seal, and mating shapes where accuracy has a direct effect on function.

3. Quality Control Integration: During production, real-time monitoring tools keep an eye on important factors. Coordinate measuring tools check complicated shapes against CAD models to make sure they are in the right place and meet the requirements for profile tolerances and runout. Statistical process control looks at measurement data to find patterns before parts start to deviate from the specifications. This lets changes be made ahead of time that keep quality high.

These technologies for making things work together to turn raw materials into finished, precise parts that are made just the way you want them. Our normal method starts with communicating the needs, then moves on to design drawings, production processing, quality control, protective packing, and finally delivery. This methodical approach, which has been improved over 15 years of industrial experience, guarantees consistent results no matter how complicated the project is.

Managing Production Timelines

The careful steps needed for accurate making are reflected in the 35–60 day production lead times. Getting the materials takes about 5 to 7 days on average. Then, the machining takes 15 to 25 days, depending on how complicated the job is. It takes an extra 3–5 days for the heat treatment processes, and an extra 7–10 days for the final cutting and finishing. The timeline ends with quality control, paperwork, and packaging.

Being aware of these deadlines helps buying teams make good plans. During production, we keep communication open and honest by giving synchronized progress updates at important points. This lets you connect the delivery of parts to larger project schedules, which keeps assembly operations from being held up, which costs a lot of money.

Applications and Industries Using Custom Precision Components

Industrial Machinery Applications

Precision-engineered parts are used in a lot of different types of machinery. For heavy machinery to work continuously, its parts need to be able to handle high loads, shaking, and changes in temperature. Finely tuned gears efficiently transfer power while keeping the operation quiet. Tight runout specs are needed for shaft parts to keep them from vibrating and bearings from failing too soon.

We've given hydraulic systems, transmission units, and automatic production tools high-precision parts. Reliability is important for these uses because broken equipment has a direct effect on work output. When 35CrMo parts are properly heated, they have a service life measured in years instead of months. This lowers the cost of maintenance and makes the equipment work better overall.

Mining Industry Demands

Mining equipment works in a climate that is probably the hardest on mechanical parts. Standard parts break down quickly in environments with abrasive materials, shock loads, and dirty lubrication environments. By choosing the right materials and treating the surfaces, precision parts made for mining applications have better wear resistance.

Custom precision components are needed for rock crushers, conveyor systems, and digging tools. Parts made from 20CrMnTi that has been carburized have hard, wear-resistant surfaces and tough cores that can handle pressure loads. If you finish the surface properly, it won't rust in damp underground environments. This means that you can go longer between service visits and do less emergency maintenance.

Aerospace Component Requirements

The most precise production is needed for aerospace uses. Flight-critical parts need to be able to be fully tracked and documented, as well as having accurate measurements. To meet AS9100 quality standards, each step of the manufacturing process is checked and recorded.

Failure is not an option for the parts we make for control systems, landing gear kits, and engine accessories. Even though these parts often need to be made from rare materials and processed in special ways, the basic skills needed for precision manufacturing stay the same. Tight geometric standards make sure that the parts fit and work right, and controlled surface finishes stop wear cracks from starting.

Medical Device Manufacturing

For medical uses, precise parts that stay accurate through multiple cleaning processes are needed. Precision-manufactured parts are used in surgical instruments, testing tools, and implantable medical devices. Along with mechanical qualities, biocompatibility of the material becomes an important decision factor.

Parts used in medical procedures often have very small shapes that need to be machined with great accuracy. Surface finishes must keep things running smoothly while also keeping bacteria from sticking to them. We work closely with companies that make medical devices to make sure that parts meet both legal compliance standards and functional needs.

Procurement Considerations and Selecting the Right Supplier

Quality Certifications Matter

ISO certification is a basic way to make sure that quality management systems work, but certifications that are specific to a field show that the system has certain skills. IATF 16949 shows compliance with standards for the car industry, while AS9100 shows compliance with standards for the aircraft industry. It's not just paper work that these certifications mean; they're also systematic approaches to quality management that lower your procurement risk.

A supplier's manufacturing knowledge can help you figure out what they can do. Because YIZHI MACHINERY has been in business for 15 years, we've seen and fixed a lot of production problems. This built-up information helps us predict problems that might happen and take steps to avoid them when we plan production.

Evaluating Technical Capabilities

A manufacturer's ability to meet your needs is directly affected by the tools they use for production. CNC machining centers with high accuracy, automated grinding equipment, and high-tech inspection tools can do things that older tools just can't. When evaluating a provider, you should ask specific questions about the accuracy of the machines, the testing tools, and the process that can be used.

Process documentation reveals how suppliers control quality. Request examples of process capability studies that show Cpk values above 1.33. This means that the manufacturing process makes parts that are well within the limits of the specifications. Read through the quality control procedures to find out how suppliers find and stop problems before they are shipped.

Logistics and Supply Chain Considerations

Your production schedules are greatly affected by how reliable your deliveries are. We've made complete packaging systems with custom wooden pallets and materials that absorb shock, which lowers the rate of damage during transport to less than 0.1%. This care in protecting the packaging keeps you from getting frustrated when you get broken parts that slow down your projects.

Transportation flexibility lets you choose shipping methods that fit your needs and deadlines. For planned refilling, sea freight is a cost-effective option, while air freight is best for urgent needs. China-Europe freight trains are a good middle-ground option because they balance speed and cost. Our multi-channel operations make sure that you get parts when you need them, not just when it's convenient for the provider.

Real-time tracking of shipments lets you see how they're getting delivered. You can keep an eye on progress from loading in the factory to clearing customs to delivery, which lets you talk to your production teams before they need to. This clarity gets rid of doubt and helps you keep track of your goods well.

Building Supplier Relationships

Long-term relationships with suppliers are more valuable than just one transaction. Suppliers who know about your needs and uses can offer changes and improvements that will save you money or make things work better with custom precision components. We see our connections with clients as partnerships where everyone wins by talking to each other and doing well.

Technical help is more than just making parts. Our engineering team helps with design and finding the best specifications for parts so they can be made easily and cheaply. When people work together, they can often find ways to improve performance while also lowering production costs.

Conclusion

Components that are precisely designed are essential in many modern manufacturing, mining, and aerospace uses. Procurement professionals can choose the right suppliers if they know about the design factors, manufacturing processes, and application needs. Manufacturing technology, quality control systems, and material science all work together to make parts that meet strict requirements and perform reliably over time. To get the best results for the whole project, procurement that works well combines technical needs with things like cost, time, and provider abilities.

FAQ

1.What tolerances can precision machining achieve?

Tolerances of ±0.01mm can be reached with standard precision machining for most shapes. Depending on the material and the shape of the part, advanced grinding operations can get as close as ±0.002mm. Tolerances below 0.005mm usually mean more money is spent on production because the process has to be carefully planned. To get the best manufacturing costs, we suggest that you only define tight tolerances when they are functionally necessary.

2.How does material choice affect component cost?

Material costs change a lot depending on the alloy's make-up and how easy it is to get. For general uses, carbon steel like 45# steel is a cost-effective choice. Because they contain alloying elements, steels like 20CrMnTi and 35CrMo are more expensive, but they work better in tough situations. The starting cost of a material should be weighed against its expected service life and the amount of upkeep it needs.

3.Can small quantities be manufactured economically?

Yes, fine cutting works well for small production runs. Because we have a low minimum order quantity, you can make prototypes and try them before committing to mass production. Even though prices go down with quantity, it is still possible to make small batches when the performance of the parts supports the investment in precise manufacturing.

Partner with YIZHI MACHINERY for Your Precision Manufacturing Needs

Choosing the right custom precision components supplier is very important when your application needs precise parts that work well in a variety of conditions. Every project that YIZHI MACHINERY works on is backed by their 15 years of experience making things, their ISO-certified quality systems, and their advanced CNC machining skills. We make precise parts out of 45# steel, 20CrMnTi, and 35CrMo. The surface hardness can reach HV 500–800, and the parts are delivered in 35–60 days with damage rates below 0.1% during shipping. Our engineering team helps with every step of the process, from the first design consultation to the final delivery, making sure that your parts exactly meet your needs. Contact us at sales@yizmachinery.com to talk about your unique needs and find out how our precision manufacturing solutions can help your equipment work better.
