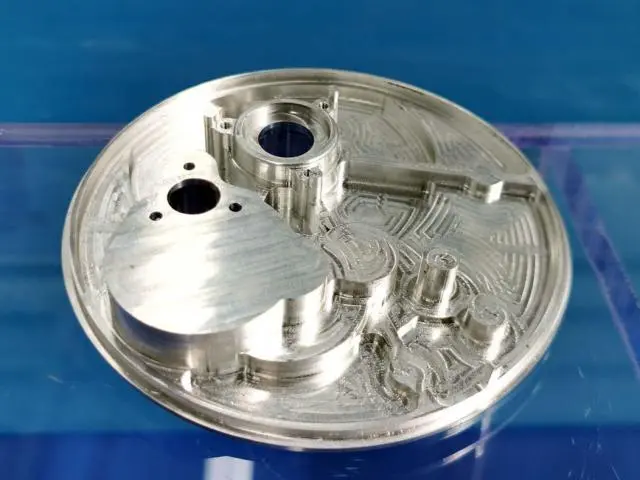

CNC Precision Parts Processing: Complete Guide to High Accuracy Manufacturing

When industrial machinery, mining operations, and aerospace manufacturers demand components with uncompromising accuracy, CNC precision parts processing delivers the solution. This computer-controlled manufacturing methodology integrates CAD/CAM software with multi-axis machining centers to produce parts meeting tolerances as tight as ±0.005mm. Unlike manual machining or additive processes, precision CNC machining eliminates human error while processing hardened alloys—45# steel, 20CrMnTi, and 35CrMo—achieving surface hardness between HV 500-800. This guide explores how advanced machining techniques transform raw materials into mission-critical components for industries where failure isn't an option.

Understanding CNC Precision Parts Processing

What Defines High-Accuracy Machining?

Computer numerical control technology changes the way parts are made by automating the performance of tool paths. At YIZHI MACHINERY, the process starts with approved raw materials that are analyzed using spectrometry to make sure they are the right alloy makeup. Then, micron-level consistency is achieved by high-precision CNC machining tools that turn, mill, grind, and drill. This methodical approach solves a very important problem: keeping the same dimensions across production runs of hundreds or thousands of units.

The computer control systems are what make CNC precision parts processing different from regular cutting. Operator fatigue and subjective measurements can cause differences in manual operations. Our CAM-driven process turns 3D models into G-code directions that tell the spindle what speed to go at, how fast to feed the model, and how deep to cut. Aerospace-grade parts that need to be concentricity within 0.01mm show why businesses trust automated precision over manual methods.

Materials and Tolerances That Matter

Engineering-grade steel alloys are what make parts last a long time. We work with 45# carbon steel for most mechanical tasks, 20CrMnTi for carburized gears that need a hard surface, and 35CrMo for high-strength shafts that don't wear out easily. Choosing the right material has a direct effect on the machining parameters. For example, harder metals need ceramic cutting bits and slower feed rates to keep the tools from wearing out.

Functional performance is controlled by tolerance standards. To make sure that parts fit together correctly, geometric dimensioning and tolerancing standards are used. If the perpendicularity of the housing of a hydraulic valve is off, the seal will leak, and if the tooth spacing is off on transmission gears, they will make too much noise. Our production method keeps dimensions accurate by controlling the temperature and using a CMM on a regular basis. This keeps expensive assembly failures from happening.

The End-to-End Manufacturing Workflow

Preparing the materials means cutting the bar stock to the best blank sizes that cause the least amount of waste. Using high-speed steel tools, rough machining sets up the basic geometry and gets rid of 70–80% of the extra material. The measurements are fine-tuned in semi-finish processes, which leave 0.3 to 0.5 mm of stock for the final passes. Precision grinding is used in finish machining to get surface roughness levels between Ra 0.4μm and 1.6μm, which is very important for hydraulic seals and bearing surfaces.

After cutting is done, the surface is treated. Outdoor gear that has been galvanized will not rust, blackening will give it a nice look with little change in size, and anodizing will harden the oxide layers on metal parts. Coordinate measuring tools are used in quality inspection to compare complicated 3D shapes to CAD specifications. First article inspection reports show that the process can be done before full production starts.

Comparing CNC Precision Parts Processing with Other Methods

Automation Advantages Over Manual Machining

Automation is better than manual machining in many ways. In traditional machining, the operator has to be able to read blueprints and change machine settings by hand. This causes difference from batch to batch—one operator's idea of a "tight fit" is different from another's. When CNC precision parts processing stores the best parameters digitally, the same tool paths are used even if shifts change or employees leave. By moving from manual to CNC production, a company that makes mining tools cut the number of scrap pieces from 8% to below 1%, which shows that the quality has been improved.

Being able to predict cycle times helps with planning production. Adjustments to the setup and measurements taken during the process are needed for manual operations, which can cause unexpectedly long lead times. Automated cutting finishes tasks in set amounts of time. For example, a complicated valve body takes 47 minutes per unit, which lets you accurately predict when the delivery will happen. We plan for production to take between 35 and 60 days, taking into account the time it takes to get materials, machine them, heat treat them, and check their quality.

CNC Versus Additive Manufacturing

Rapid prototyping is possible with three-dimensional printing, but it has trouble with mechanical properties. Anisotropic strength is made by layer-by-layer layering; when stressed, parts break along layer lines. By taking material away from solid billets instead of adding layers, precision CNC cutting keeps the isotropic qualities of the material. Aerospace parts that are heated and cooled many times and are under pressures greater than 3000 PSI need the structural stability that can only be achieved through subtractive manufacturing.

The level of the surface finish varies a lot. When you use additive processes, you can see the layer lines, so you have to do extra work to get smooth surfaces. Our grinding processes produce Ra values below 1.6µm right off the machine, so there is no need for secondary finishing. The ability to work with different materials is another difference between these methods. For example, we hardened tool steel to HRC 60+, while most 3D printers can only work with plastics and a few metal alloys.

Evaluating CNC Suppliers for Consistent Quality

Professionals in procurement should check the producing capability of a product by verifying the license. ISO 9001 compliance shows that you have quality management systems in place, while AS9100 approval shows that you have process control at the aircraft level. We at YIZHI MACHINERY have been making things for 15 years and have standardized our processes so that we can always get the same results in the car, medical device, and mechanical manufacturing sectors.

Lead time management tells the difference between sellers who are dependable and those who aren't. We keep clear production schedules and provide real-time reports on progress, which lets you organize the assembly processes that come after. Our multi-channel operations, which includes sea freight, air cargo, and train choices, let you choose the best way to send your goods. Custom packing with shock-absorbing liners and wooden boxes keeps damage rates during transport to less than 0.1%, protecting your investment from the plant to the receiving dock.

How to Select and Procure CNC Precision Parts for Your Business

Critical Selection Criteria for Manufacturing Partners

Industry certifications prove that a process works. Before production starts, AS9102 first item inspection records make sure that the factory is ready by recording dimensional checks, material certifications, and functional tests. Biocompatibility testing protocols should be checked by companies that make medical devices, and ITAR compliance for controlled components is needed by defense contractors. As part of our quality control standards, we use coordinate measuring machines to compare complicated geometries to CAD drawings during production runs.

What geometries suppliers can make depend on their technology. Multi-axis machining centers can cut shapes that are too complicated for 3-axis machines to handle. Our company has high-precision CNC machining centers, automated gear grinding machines, and intelligent heat treatment production lines that can cut, grind, and heat treat gears. This combined ability gets rid of delays caused by subcontracting and keeps process control higher than when sellers outsource operations.

Understanding Pricing and Minimum Order Quantities

Part prices are based on how much the materials cost, how hard the machine work is, and how many are ordered. Milled parts made from rare materials cost more than simple turned parts made from common metals. We can customize everything from single-piece prototypes to large production batches, and our low minimum order quantities make it easy to test things out before they go into production. Costs per unit go down as the number of units ordered goes up. For example, orders for 100 pieces show a 15-20% cost reduction compared to the prototype price.

To handle lead times, you need to know how to schedule output. Rush orders cost more because they have to compete with other commitments, but usual 35–60 day timelines let you plan your job better. We send information on the progress of production at the same time throughout the whole process, so you can see where your order is at all times. This openness helps you keep track of your inventory and plan your project timelines well.

Best Practices for RFQs and Sample Evaluation

The best ways to use RFQs and evaluate samples include full technical details like allowed tolerances for sizes, required surface finishes, material certifications, and testing procedures. Specifications that aren't clear cause delays in explanation or parts that don't meet standards. Our pre-sales technical advice looks over design plans to find problems with how they can be made before production starts. This keeps expensive changes from having to be made.

The supplier's abilities are confirmed by a sample assessment. We give you test examples that show how accurate the machining is, how good the surface finish is, and how well the dimensions match up. Instead of relying on your own judgment, use calibrated measuring tools to compare samples to the specs on the plan. Samples should come with material proof paperwork that confirms the alloy's makeup through spectrometric analysis and that its hardness values meet the requirements for heat treatment.

Benefits and Optimization Techniques in CNC Precision Parts Processing

Intrinsic Advantages of Automated Machining

Assembly troubles can't happen when there is high stability across production runs. When the roots of turbine blades need exact dovetail angles to be securely mounted, differences in dimensions lead to imbalance and failure before its time. The repeatable accuracy of CNC precision parts processing makes sure that every part meets the requirements. This makes quality control inspections faster because statistical process sampling can be used instead of 100% inspection when the process capability shows consistent agreement.

The ability to use complex shapes opens up more design options. With five-axis machining centers, you can reach angles that would be impossible to reach by hand. Medical implants with organic shapes, aerospace brackets with light-weighting pockets, and impeller vanes that need continuous curvature are all examples of how advanced machining techniques can help designers make the best designs possible. Our engineering team works together to improve designs by suggesting changes that make them easier to make without affecting how well they work.

Advanced Processing Methods Elevating Quality

Costs go down when materials are used efficiently. Near-net-shape blocks cut down on the amount of extra stock that needs to be removed, which speeds up the process and protects tools. Our process planning figures out the best ways to cut while still maintaining the quality of the surface. For example, roughing passes that remove a lot of material quickly are called forceful, while finish passes focus on accuracy over speed.

Multi-axis cutting combines tasks into one. When moving a part that needs to be milled, drilled, and turned on different tools, positioning mistakes happen. Five-axis machining centers can do all of their work in a single setup, which keeps tolerances tighter because they don't have to move parts around as much. This cuts the time it takes to make things by 30 to 40 percent while also making them more accurate. With high-speed tooling technology, tools last longer and have better surface finish. Coated carbide inserts that are used with the best cutting settings produce less heat, which keeps thin-walled parts from warping due to heat. Adaptive real-time tracking systems use sound analysis to find worn tools and change them automatically before the quality starts to drop. With these improvements in automation, tight tolerances can be kept even during long production runs.

Implementing statistical process control lets you see how quality will change over time. During production, we keep an eye on important dimensions by writing data on control charts. When dimensions get close to the limits of the standard, proactive machine changes stop parts from not meeting the requirements. This predictive method lowers the amount of scrap to less than 1%, showing that process monitoring improves manufacturing excellence.

Aerospace Manufacturing Case Study

A company that makes business airplanes needed hydraulic actuator housings made of 35CrMo steel with a surface hardness of 650 to 750 and an internal hole tolerance of ±0.01mm. 6% of the parts that were machined by hand were rejected because of differences in size and heat treatment. When we switched to CNC precision parts processing, the number of rejects dropped to 0.3% and wait times dropped from 75 days to 45 days.

The change was made possible by combined process control. The bore concentricity stayed within the limits of the specifications thanks to automated machining, and the uniform hardness profiles were achieved through controlled atmosphere heat treatment. Coordinate measuring machine verification recorded measurement conformance, and digital inspection records made it possible to track quality standards for aircraft. This case shows how precise production methods can lead to real changes in the integrity of a product.

Trusted CNC Precision Parts Suppliers – Building Long-Term Partnerships

Attributes of Reliable Manufacturing Partners

Things that make a manufacturing partner reliable include strong certifications showing that the process is mature. ISO-certified quality management systems write down processes that make sure output is uniform, and industry-specific standards show that a company has the right skills. We keep up-to-date certifications that prove our ability to work in difficult fields where broken parts can cause safety issues or operating downtime.

Direct factory capabilities get rid of markups and communication delays that happen between parties. Vertically integrated businesses that control everything from buying materials to doing the final check have better process control than middlemen who coordinate many subcontractors. We have precision CNC machining centers, gear grinding machines, and heat treatment systems in our fleet of equipment, so we can meet all of your manufacturing needs without having to outsource important tasks.

Complete support after the sale goes beyond delivery. We offer a warranty that lasts for one year and has quick response protocols for quality issues. Technical consultation helps with setup, putting together, and fixing problems, making sure that parts work as they should in your equipment. This way of thinking about help creates ties instead of just dealing with vendors.

Best Practices for Contract Manufacturing Management

The best ways to manage contract manufacturing prevent misunderstandings by communicating clearly. We set up a single point of contact for project management who coordinates the engineering, production, and quality teams. Regular updates with photos show the state of the making process, so you can find problems before they're finished. This transparency lowers the number of shocks and encourages working together to solve problems.

Protecting intellectual property keeps secret ideas safe. Non-disclosure agreements make people promise to keep information secret, and safe data handling stops people from sharing designs without permission. We know that the designs of your components give you a competitive edge that needs to be protected. Your technical data is handled with the right level of care by our information security procedures.

Leveraging Partnerships for Innovation and Cost Savings

Strong supplier partnerships provide verified expertise, cost optimization, and innovation opportunities. Customer references demonstrate reliability, while collaborative design reviews identify savings through material and process improvements. Long-term agreements support stable pricing and efficient production. Continuous investment in advanced equipment and technologies helps suppliers deliver improved performance and new manufacturing solutions for customers.

Conclusion

Precision manufacturing turns industrial ideas into real parts that power important systems. Digital control, high-tech materials, and strict quality systems are all used together in CNC precision parts processing to get accuracy measured in microns. Components must work reliably in tough conditions for everything from hydraulic systems in spacecraft to mining equipment that works in harsh conditions. YIZHI MACHINERY is your ideal production partner because we have been in business for 15 years, our processes are ISO-certified, and we can make any changes you need. We use high-precision machining centers, automatic grinding systems, and smart quality control to make sure that the parts we give meet the strictest requirements and are delivered on time, usually within 35 to 60 days.

FAQ

1.What materials are suitable for aerospace-grade precision parts?

Materials that are both strong and light are needed for aerospace applications. These materials must also be able to withstand high temperatures. For airframe parts, we work with aluminum alloys; for turbine parts, we use titanium; and for landing gear parts, we use high-strength steels like 35CrMo. Spectrometric analysis is used to certify materials and make sure they are made of the right alloys. Specific mechanical properties are achieved through heat treatment protocols. We have worked with aerospace parts like hydraulic housings, actuator brackets, and structural fittings that need AS9100-level documentation.

2.How do machining tolerances impact product quality and performance?

Tight margins make sure that things fit right and work properly. A 50mm (±0.02mm) shaft fits perfectly inside a bearing hole, which reduces friction and increases service life. When standards are too loose and there is too much space, noise, faster wear, and less efficiency happen. Our CNC precision parts processing keeps measurements accurate by using temperature-controlled cutting settings and a coordinate measuring machine to make sure. This keeps assembly problems from happening because of parts that don't meet specifications.

3.What are typical lead times for custom CNC orders?

The normal time it takes to make something is between 35 and 60 days, which includes getting the materials, cutting, finishing the outside, and checking for quality. Complex geometries that need custom tools or rare materials may take longer to finish, while simple turned parts from stock finish more quickly. We give clear schedule information during the quote process, which helps you set reasonable delivery expectations. When capacity allows, rush orders are handled more quickly, but you will have to pay more to put your project ahead of other commitments.

Partner with a Proven CNC Precision Parts Processing Supplier

YIZHI MACHINERY is a world-class manufacturer with 15 years of experience making precise parts for the mining, aircraft, and industrial machinery industries. High-precision CNC machining centers and automatic grinding systems are used in our ISO-certified factory to make parts with a surface hardness of HV 500–800 and limits of ±0.005mm. With turning, milling, grinding, and drilling operations, we work with 45# steel, 20CrMnTi, and 35CrMo. Depending on your needs, we apply pickling, blackening, or anodizing surface treatments. With production plans that range from 35 to 60 days, customized packaging that keeps damage during shipping to less than 0.1%, and full technical support from quote to delivery, we make it easier to buy things for tough situations. Contact us at sales@yizmachinery.com to talk about your needs and get a detailed quote from a reliable CNC precision parts processing manufacturer that wants you to succeed.
