What is an Industrial Reducer?
There is one part that always does its job well in big machinery and accurate manufacturing, and that part is the Industrial Reducer. If you're in charge of a mine conveyor system, an aerospace assembly line, or industrial automation equipment, knowing about this important power transmission device can have a huge effect on your bottom line and how well your business runs.

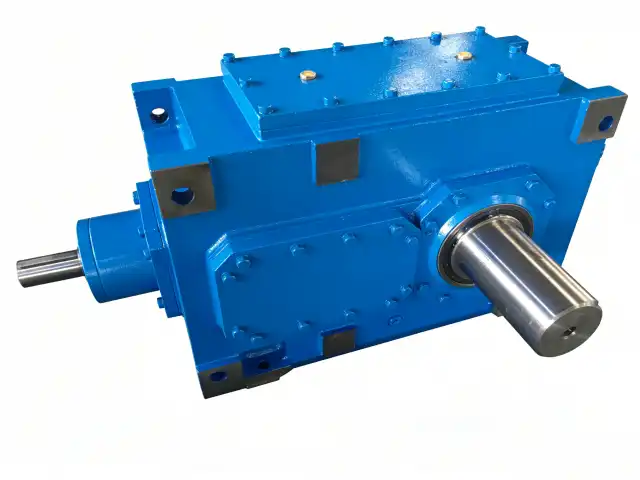

An industrial reducer is a precision-engineered piece of machinery that goes between a power mover (usually an electric motor) and the equipment that it drives. The main job of this part is to lower the motor's high rotational speed while at the same time raising the power it sends to the machinery. By slowing down electrical motor speeds (usually between 1,450 and 2,900 RPM) to useful working speeds, these gears make it possible for heavy loads to be handled without the need for big, expensive motors that would be needed to directly produce the same amount of power.
Understanding Industrial Reducers: Definition and Working Principle
Industrial reducers work by manipulating gear ratios, which sounds very easy but is actually a very powerful mechanical concept. When the motor shaft is connected to the input side of the reducer, rotational energy is transferred through precisely made gear sets that are set up in ways that have been measured. These gear trains are made up of different mixtures of helical gears, bevel gears, worm gears, and planetary setups. Each combination is chosen based on the needs of the application.
How Do Gear Ratios Transform Power?
The gear ratio is the link between the input and output shafts. It is given as a number that shows how much speed is lost. If the ratio is 10:1, the output shaft turns once for every ten times the input shaft turns. Following the physical rule of energy conservation, this drop in speed leads to a corresponding rise in torque. When your motor makes 100 Newton-metres of power at 1,500 RPM, a 10:1 reducer changes that into about 1,000 Newton-metres at 150 RPM. This means that, based on the gear configuration, the motor loses about 2% to 6% of its efficiency.
The Mechanical Journey Inside
The input shaft is where power comes in, which turns on the first gear step. In heavy-duty units with more than one stage, energy flows through two, three, or even four gear stages, with each stage adding to the total reduction ratio. Based on ISO 6336 standards, the involute tooth shapes make sure that the teeth join smoothly with little backlash and high contact ratios. This careful engineering lessens vibration, lowers noise, and increases working lifespan—all of which are important when your equipment works non-stop in tough settings like automated warehouses or aggregate grinders.
Types of Industrial Reducers and Their Applications
Before you can choose the right gearbox style, you need to know what the technical features and performance profiles of each major group are. The wrong choice can cause early failure, too much energy use, or not enough power delivery. The right match, on the other hand, maximises efficiency and durability for any industrial reducer installation.
Helical Gear Reducers
In general manufacturing settings, helical designs are the most common type of arrangement. Because the teeth are angled, they connect gradually, making the process quieter than with straight-cut spur gears. When you need high efficiency (94–98%), modest speed ratios up to 30:1 in single steps, and parallel or right-angle shaft arrangements through helical-bevel combinations, these units are the best choice.
Helical gears are often used on conveyor drives in mines where dependability is more important than cost at first. The gradual tooth contact can handle the shock loads that happen when heavy ore is quickly put on moving belts. When it comes to packaging lines, material handling systems, and processing tools, manufacturing sites like them are versatile. This is because uptime directly affects profits.
Planetary Gear Systems
When there isn't much room and a lot of torque is needed, planetary designs offer the highest power efficiency. The sun gear in the middle meshes with several planet gears that rotate inside a ring gear. This spreads the load across several contact points at the same time. This design keeps the input and output shafts coaxial and gets reduction ratios of up to 100:1 in small spaces.
Planetary reducers are used in control systems in aerospace uses to save weight and ensure precise positioning, which justifies the higher costs. Robotic joints need to have low backlash—often less than 3 arcminutes—in order to be able to accurately place themselves for automated assembly jobs. Because the load is spread out, these units can also handle short-term overloads without breaking down completely. This keeps expensive robotic arms from getting damaged when they crash into something unexpected.
Worm Gear Arrangements
Worm gears can be used in a lot of different ways because their perpendicular shaft position and ability to self-lock make them very useful. A single-thread worm moving a wormwheel can reach ratios of more than 60:1 in just one stage. This makes them perfect for situations where a lot of speed reduction is needed in a small area. The sliding contact between the worm and the wheel naturally reduces noise and makes the machine quiet, but it works less efficiently (usually 50–90% less efficient, based on the ratio and lead angle).
Backdriving is not possible with material handling equipment like lift gates, positioning tables, and dramatic staging systems because they naturally stop themselves. A very important safety feature is that the load cannot turn the device around when the motor stops. Mining hoists and positioning platforms can use this mechanical stopping effect, but they need to be able to handle heat because the rolling friction makes a lot of heat while they're working.
Bevel Gear Units
Bevel gear systems are used when right-angle power transfer is needed but worm drives would not be as efficient. The teeth on the conical gear meet at angles, usually 90 degrees, which transfers power easily between shafts that are not parallel to each other. When it comes to smoothness, load capacity, and shift, the straight bevel, spiral bevel, and hypoid types all work differently.
Bevel-helical reducers, including Industrial Reducer models, are often used in printing press systems, mixing drives, and transfer points for conveyors. They work by driving horizontal output shafts with vertical motors. The spiral bevel shape is quieter than straight bevel designs, getting close to the noise levels of helix gears while still having the perpendicular shaft benefit. A lot of agricultural machinery and naval propulsion systems depend on bevel designs, which determine how the shafts are arranged based on room and orientation issues.
Key Benefits and Design Principles of Industrial Reducers
Modern gearboxes offer more than just a way to slow things down. They also have strategic benefits that affect your facility's total cost of ownership, energy use, and operating freedom. Knowing about these benefits helps make investment choices more logical and directs the design process for each Industrial Reducer.
Engineering Excellence Through Material Selection
The dependability of a gear starts with the materials used and how they are heated. At YIZHI MACHINERY, we make gear parts out of high-quality alloy steels like 20CrMnTi, 40CrNiMo, and SAE4340. We choose each type of steel for its specific performance qualities. Case-hardening methods, like carburising, make the surface hardness between 58 and 62 HRC while keeping the cores tough and flexible so they can handle shock loads without breaking easily.
Forging raw materials to match the grain structure is the first step in the production process. Next, precise cutting, hobbing, and milling are used to set the tooth geometry. Grinding methods achieve ISO 5-6 grade accuracy, which guarantees smooth meshing and a longer useful life. Blackening the surface of something makes it resistant to corrosion. This is especially useful in industrial settings where chemicals and water can shorten the life of parts.
Operational Advantages That Impact Your Bottom Line
Here are the main benefits that these precise power transfer devices give your business:
- Enhanced Torque Control and Load Matching: Instead of ordering motors that are too big to produce the torque that is needed, using motors that are the right size and gear ratios gives the same results at lower initial and ongoing costs. A 10-horsepower motor with the right gear can often replace a 30-horsepower direct-drive motor. This saves 60% of the energy and improves process control by allowing for smaller speed adjustments.
- Improved System Efficiency and Energy Savings: Modern helical and planetary designs have efficiency rates of over 96%, which means that very little energy is lost as waste heat. Over the 10-year lifetime of the equipment, these efficiency gains save a lot of money on electricity costs. If the economy of a 50-horsepower conveyor drive that is used 6,000 hours a year goes from 88% to 96%, it saves about $4,500 a year on electricity costs, assuming that industrial rates are $0.10 per kWh.
- Customisation Capabilities for Unique Applications: Off-the-shelf solutions don't always meet specific needs perfectly. Custom gear making lets you change the ratios, shaft shapes, mounting setups, and materials used for the housing to make it fit your needs perfectly. Customisation makes sure that the best integration happens without any problems, whether you need housings that don't rust in sea environments, explosion-proof shelters for dangerous places, or special shaft extensions for specific coupling needs.
- Exceptional Durability Through Precision Manufacturing: The accuracy of gear teeth is closely related to how long they last and how reliably they work. Our ISO 5-6 grade precise production cuts down on dynamic loads that wear things down too quickly. Units that are properly defined and kept usually last between 50,000 and 100,000 hours of use before they need major repairs. This makes them last longer, which cuts down on repair costs and production delays. This is especially important in industries with ongoing processes, where unplanned downtime costs thousands of dollars per hour.
- Flexible Production Options Supporting Diverse Needs: Specialised providers offer low minimum numbers, even single units for concept development or emergency repairs, unlike mass-market makers that need big minimum orders. When making new equipment, updating old systems, or finding replacement parts for old machines that the original maker no longer supports, this freedom—including for Industrial Reducers—comes in very handy.
Conclusion
When procurement workers understand speed reduction gears, they can make choices that balance performance, dependability, and cost across a wide range of industrial uses. These precise mechanical devices change the way an electrical motor works to meet the needs of a certain process. They do this by multiplying torque, matching speeds, and improving operating efficiency, all of which have a direct effect on productivity and revenue. Every step, from choosing the right materials to heat treating them, making sure they are manufactured accurately, and keeping up with regular upkeep, all adds up to long-lasting performance that you can count on with a high-quality industrial reducer.
FAQ
1. What factors should I prioritise when selecting a reducer for heavy shock loads?
When using crushers, shredders, or other impact-type tools, you need to take extra care. Set service factors higher than 2.0 to make sure there are enough safety gaps for temporary overloads. Choose models with stronger housing casts and oversized bearings that can handle shocks without breaking. It is very important to choose the right material. Case-hardened alloy steels are better than through-hardened materials because they have hard, wear-resistant surfaces and tough, shock-resistant cores. Check to see if the maker uses dynamic load calculations based on AGMA or ISO standards instead of just basic torque values for your industrial reducer.
2. How does operating environment influence reducer selection and specification?
Harsh settings need extra safety measures that aren't usually included in industrial designs. Ingress protection grades of IP65 or higher are needed for mining and marine uses. Labyrinth seals stop dust and water from getting in. In corrosive environments, epoxy paints, zinc plates, or housings made of stainless steel are needed instead of the usual cast iron. Extreme temperatures can change the choice of grease and binding material. For use in places above 60°C, synthetic lubricants and fluoroelastomer seals are needed. For use in places below -20°C, low-viscosity oils that stay wet during start-up are needed. Talking to providers about environmental conditions during the specification process keeps field failures from happening because of forgotten application details.
3. Can reducers be customised for legacy equipment replacement applications?
Of course. Specialised companies like YIZHI MACHINERY often reverse-engineer old units when the original sources no longer exist or have stopped making the products. By giving detailed plans, photos, and information about how the item should work, it is possible to make an exact copy using modern materials and production methods that often produce better results than the original. Custom shaft sizes, mounting hole shapes, and ratio adjustments can be made to fit changes in the application that have happened since the original installation. This feature is very helpful for keeping older production equipment because replacing it would mean making a lot of changes to the other machines and control systems around it.
Partner with YIZHI MACHINERY for Custom Industrial Reducer Solutions.
At YIZHI MACHINERY, we know that general answers don't always work perfectly for unique problems in the business world. Since 2016, we have only been making precise gears and custom power transmission parts for demanding customers in the mining, aircraft, and industrial machinery industries. Our production methods are in line with ISO standards; we use high-quality materials like 40CrNiMo and SAE4340 alloy steels, and we can heat treat the gearboxes in a lot of different ways to make sure they meet your exact needs. We're happy to take orders for both single prototypes and large production runs. No matter the size of the order, we keep the quality the same for every industrial reducer.
Our full service includes design advice, technical drawings, precise production, thorough quality inspection, custom packing with guarantees against damage, and clear shipping tracking from our facility to your receiving dock. Our 35–60-day production schedule strikes a balance between being thorough and quick to respond. Our one-year guarantee and quick technical help will protect your investment long after delivery. Our experienced engineering team is ready to turn your needs into reliable mechanical reality, whether you need a specialized industrial reducer provider for tough mining uses or custom gear solutions for aerospace precision. Contact us at sales@yizmachinery.com to talk about how our precision-engineered power transfer options can help you with your next project.
References
1. American Gear Manufacturers Association. (2019). AGMA 6034-B92: Practice for Enclosed Cylindrical Wormgear Speed Reducers and Gearmotors. Alexandria, VA: American Gear Manufacturers Association.
2. Budynas, R. G., & Nisbett, J. K. (2020). Shigley's Mechanical Engineering Design (11th ed.). New York: McGraw-Hill Education.
3. Deutschman, A. D., Michels, W. J., & Wilson, C. E. (2018). Machine Design: Theory and Practice (2nd ed.). London: Pearson Education Limited.
4. International Organization for Standardization. (2006). ISO 6336: Calculation of Load Capacity of Spur and Helical Gears. Geneva: ISO Publications.
5. Khurmi, R. S., & Gupta, J. K. (2017). A Textbook of Machine Design. New Delhi: S. Chand Publishing.
6. Neale, M. J. (Ed.). (2018). Drives and Seals: A Tribology Handbook. Oxford: Butterworth-Heinemann Professional Engineering Publishing.
