Ultimate Guide to Gear Cutting: Processes and Machines

Gear teeth cutting is an important part of making precision transmissions. It uses special subtractive methods to make gear plates with exact tooth patterns. This complete guide talks about important methods for making gears, like hobbing, shaping, milling, broaching, and grinding. It gives procurement managers and engineers useful information they can use to improve production results. When choosing machinery for aerospace actuators, mining gearboxes, or industrial transmission systems, it's important to understand these basic processes. This way, you can make sure that the manufacturing capabilities match the high performance standards needed in aerospace, mining, and industrial machinery.

​

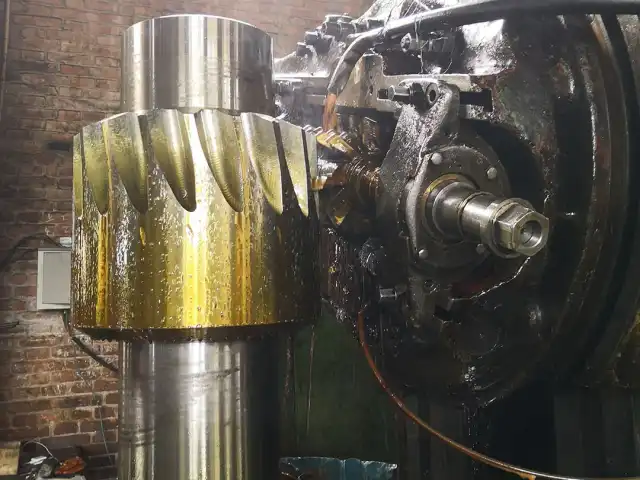

Understanding Gear Teeth Cutting

What Defines Gear Teeth Cutting?

Gear teeth cutting is a type of precise machining that removes material from cylinder and cone blanks in a controlled way to make shapes that are involute, cycloidal, or spline. Cutting processes provide micro-geometry accuracy that is needed for transmission efficiency and load distribution, while forging and casting only approximate forms. In high-stress situations, this process has a direct effect on the noise, vibration, and roughness traits, as well as the power density and service life.

Modern Gear Teeth Cutting solves problems specific to each industry, such as pitch deviations that lead to transmission errors in robotics, surface flaws that cause noise in electric car drivetrains, and uneven contact patterns that cause micropitting in wind turbine gearboxes. To get ISO 5 or 6 precision grades, you have to carefully control many factors during the whole manufacturing process.

Core Gear Cutting Processes

Knowing the different methods lets you choose the best strategy process. Hobbing uses a spinning cylinder-shaped tool with helical teeth to make profiles by continuously indexing. This method works well for making high-throughput external spur and helical gears. Modules from 0.5 mm to 50 mm can be used in this process, which makes it useful in many fields.

For shaping, a revolving cutter that looks like a gear is used. This is especially useful for internal gears or parts with shoulder limits that rotary tools can't reach. This irregular process works well for smaller production runs and is very adaptable for shapes with a lot of angles.

For milling, form cuts with the right tooth spacing are used, which is good for making prototypes and small amounts. It's not as fast as producing processes, but it doesn't need as much specialised gear. When you broach, a multi-toothed tool removes material in a single straight stroke. This gives you a great surface finish and consistent dimensions for making a lot of the same shape. Grinding is the last step in finishing hardened gears. It fixes any distortions caused by the heat treatment and makes the surface rough enough (Ra 0.2–0.4 µm), which is important for aircraft and precision instrument uses.

Material and Heat Treatment Considerations

The choice of material has a big effect on the cutting factors and the life of the tool. When we make gear, we use high-quality metals like 45# steel, 20CrMnTi, 40CrNiMo, SAE4340, 42CrMo, AISI4140, 18CrNiMo7, and 20CrNi2Mo. Each of these has its own performance and ease of machining qualities. Lower carbon steels are easy to work with, but they need to be carburised to make the surface hard. Alloy steels, on the other hand, can be through-hardened to 58–62 HRC after being quenched and tempered.

Cutting plans must match the order of heat treatments. Carburising makes surfaces that are hard and don't wear down while keeping cores that are tough. This makes them perfect for high-contact-stress uses in mining equipment. Induction hardening can harden only certain areas of teeth, which reduces curvature. Blackening the surface makes it resistant to rust, and hard chrome plating makes it last longer in rough settings. Production times are usually between 35 and 60 days, which includes complicated steps like forging and final testing.

Comparison of Gear Teeth Cutting Methods to Help You Decide

Evaluating Process Advantages

Finding the best method for Gear Teeth Cutting means finding a balance between cost, accuracy, efficiency, and geometric flexibility. Hobbing is the most common way to make medium- to high-volume external gears because it can make gears quickly and consistently well. For car gearbox gears, CNC hobbing machines can make gears in minutes, and the cost of the tools is spread out over thousands of parts.

When entry is limited by geometry or when internal shapes are needed, shaping can be helpful. Gear teeth milling also applies here. The process works with cluster gears and parts that have shoulders next to each other that would get in the way of hob clearance. Even though cycle times are longer than with hobbing, the freedom makes the investment worth it for specific uses in robotic joints and motors for spacecraft.

When Alternative Manufacturing Makes Sense

Casting and pressing are both good options in some situations. Investment casting is a one-step process that can make complicated shapes. It's good for low to medium-volume production where the cost of cutting would be too high. With powder metal forming, gears with a near-net shape can be made with little waste, making them cost-effective for smaller modules in market uses. Stamping makes thin gears quickly, but it limits the module range and thickness. These options give up accuracy for lower costs, which is fine when application limits allow it. For prototyping and unique one-off output, gear teeth milling has the lowest entry barrier. Standard milling machines with turning heads can make gears that work without the need for special cutting tools. Milling, on the other hand, is not good for series production because it limits efficiency and costs more per piece.

Broaching works best for making a lot of standard shapes like splines and internal teeth, because the expensive tools can be paid for over many production runs. The process provides excellent accuracy and surface finish, which cuts down on or gets rid of the need for extra steps. Grinding is the precise finishing step for parts that have been hardened. It fixes flaws and makes it possible to reach the tight limits needed in machine tool wheels and precision instrument transmission systems.

Gear Teeth Cutting Machines: Types and Choosing the Right One

Machine Categories and Capabilities

Gear making relies on hobbing machines, which come in a range of sizes and shapes, from small tabletop machines for workshops to large multi-axis CNC systems that can do hobbing, chamfering, and deburring. Modern CNC hobbers have adaptive control that changes cutting settings based on real-time input, automatic tool changing, and measurement while the job is being done. Some important characteristics are the largest workpiece width, the module's capacity, the accuracy of the indexing, and the power supply.

Gear shaping tools use either rotary or rack-type cuts. CNC versions can do helical cutting by moving the wheel and stroke at the same time. How precise something is depends on how accurate, hard, and thermally stable the guides are. Universal mills with dividing heads and specialised CNC gear milling centres with built-in CAM programmes for complex profiles are some of the milling tools that can be used for gear teeth cutting.

Broaching machines need to be able to hold a lot of weight so that they can move broaching tools through workpieces. Hydraulic systems control how much power is applied. While machine prices are pretty low, special brooch tools require a big investment. Gear grinding tools work by either shaping or creating. CNC grinders have profile and lead correction routines that fix problems caused by heat treatment, making it possible to reach DIN 6-7 quality levels needed for tough jobs.

Evaluating Suppliers and Specifications

Procurement teams have to compare the accuracy of the tools they use to the needs of the job. Machines with thermal compensation, high-resolution feedback systems, and vibration separation are needed for ISO 5-6 grade gears used in aircraft and precision robots. Industrial gear uses may be able to use ISO 7-8 grades, which means that a wider range of tools can be used.

Cycle time analysis figures out how much work can be done and how productive the workers are. CNC automation lowers the need for human input, which lets standardised goods be made without any help. Scalability factors include the largest piece of work that can be made, the availability of power for cutting bigger modules, and the ability to handle a wide range of products without having to do a lot of retooling.

Long-term output is greatly affected by service support systems. Most global companies have repair centres in different regions that are staffed by trained techs and stocked with parts. Innovative providers from well-known manufacturing regions offer reasonable prices and CNC integration and automation features that get better over time. Due diligence should check how quickly technical help responds, how easy it is to improve existing systems, and how reliable the tooling supply chain is.

Investment and Pricing Factors

Practical Guide to Purchasing and Outsourcing Gear Teeth Cutting Services

Strategic Equipment Acquisition

A thorough needs assessment is the first step in buying machines that work well. Set goals for output numbers, module ranges, accuracy needs, and material types. Ask engineering teams to come up with technical specs like the largest sizes that can be used, the widest teeth that can be used, and the range of pressure angles that can be used (14.5° vs. 20° standards). Installation, training, and ramp-up errors must be taken into account because of limited funds.

When evaluating vendors, you should look at more than one's technical skills, pricing, and service promises, including gear-teeth milling. Ask for sample cuts to be made with your materials and specs, and use coordinate measuring tools or gear analysers to check the results. Check that the company is following ISO standards and get examples from companies in the same industry. Talk about training packages that will help workers get good quickly. Delivery lead times for specialised tools are often 6 to 12 months, so you need to plan ahead.

Outsourcing Decision Framework

Companies that don't have the right equipment or whose needs change often and don't justify investing in capital equipment can outsource the production of their gear. The approach lets you use advanced features like hard cutting after heat treatment, which often gets rid of the need for grinding. To find reliable service providers, you need to look at their quality systems, capacity backups, and technical knowledge for your business.

Explain the difference between standard and unique options. Custom services can meet particular needs, such as those involving special pressure angles, changed shapes, or materials that are only available to that company. Standard services use tools and methods that have already been tested and proven to cut down on costs and wait times. Ask for capability statements that list module ranges, precision grades, material knowledge, and relationships for heat treatment.

Reports on dimensional inspections, material certificates, and surface hardness checks must all be part of quality assurance processes. Coordinate measuring machines and specialised gear testers check that the profile, lead, pitch, and runout are in line with the requirements. Magnetic particle screening finds flaws below the surface in important situations. Set clear acceptance standards and review schedules that are in line with the levels of risk.

Risk Management and Best Practices

Dual sourcing methods and store buffers for long-lead custom parts can help lower supply chain risks. Tolerances, inspection standards, packing requirements, and responsibility terms should all be spelt out in contracts. When sharing exclusive ideas, protecting intellectual property becomes very important. Controlled information sharing and non-disclosure deals keep competitive benefits safe.

Cost optimisation compares the piece price to the total landing cost, which includes shipping, inspection, and any possible repair. Proximity benefits include faster contact, easier site trips, and less complicated transportation. But expert providers may be able to support longer supply lines by having better skills or lower costs. Suppliers involved in Gear Teeth Cutting and gear teeth milling tooling need to go through the same checks because the quality of the cutters affects the finish, output, and life of the tools. Build connections with reputable makers that offer resharpening and application engineering help.

Conclusion

To make it through the complicated process of making gears, you need to make smart choices that balance process choice, tool skills, and supply chain strategies. This book talks about basic ways to gear teeth cutting, the pros and cons of different types of machines, and the best ways to buy things for industrial tools, mining, and military uses. Quality control methods and improvement techniques make sure that precise gears that meet the strict ISO 5-6 standards are always made the same way. When engineering and procurement teams understand these principles, they can improve operational excellence, cut costs, and keep their competitive edge in supply chains for transmission components that serve important industries around the world. This is true whether they are investing in manufacturing infrastructure or working with specialised service providers.

FAQ

1. What distinguishes hobbing from gear shaping?

Hobbing is an ongoing process that makes teeth by rotating the cutter and material at the same time. It is perfect for making a lot of external gears. Shaping uses sporadic reciprocating motion, which is needed for internal gears or parts that can't be reached by the hob because of their shape. This trades output for freedom of shape.

2. Can hard cutting replace grinding operations?

Hard cutting or skiving on hardened blanks up to 62 HRC fixes distortions caused by heat treatment and achieves DIN 6-7 quality grades while cutting cycle times by a large amount compared to traditional grinding. The method needs rigid CNC machines and special carbide or CBN tools, but it gets rid of the need for grinding in many industrial situations where precise work isn't needed.

3. How does module size influence cutting method selection?

Because the tool shapes are so delicate, small modules less than 1 mm usually use fine hobbing or rolling. Automotive parts from 1 to 6 mm use current skiving and hobbing to make things work better. In the mining and energy industries, large units that are more than 10 mm often need heavy-duty milling followed by form grinding because they need to remove a lot of material, and there are worries about tool deflection.

4. What surface roughness standards apply to precision gears?

In general, industrial uses need Ra values between 1.6 and 3.2 µm, which can be reached by hobbing or shaping. Ra values between 0.2 and 0.4 µm are needed for high-performance transmission gears in electric vehicles and aircraft. This means that the gears need to be ground or honed in order to lower friction losses and micropitting risks when there are high contact loads.

Partner with YIZHI MACHINERY for Precision Gear Solutions.

To be the best at making, you need more than just formal knowledge. You also need people with a lot of experience who can perform precision gear teeth cutting. Since 2016, YIZHI MACHINERY has been making unique gears for the mining, aircraft, and industrial machinery industries. They have 15 years of experience making things and use quality systems that are in line with ISO standards. We offer double helical gears, internal gears, bevel gears, and high-precision machined parts made by advanced hobbing, milling, grinding, and heat treatment methods such as induction hardening and carburising.

We can work with modules ranging from 0.5 mm to 50 mm and use high-quality materials like 20CrMnTi, 40CrNiMo, SAE4340, and 18CrNiMo7 to get ISO 5-6 precision grades and surface hardnesses of up to 62 HRC. Low minimum order amounts, which include creation of a single piece, give you options for everything from prototypes to full-scale production. Our production times range from 35 to 60 days and include full services such as design advice, global shipping with real-time tracking, one-year warranties, and quick technical support. Customized packaging keeps goods safe, and damage rates are less than 0.1 percent. Our uniform workflow makes the whole process clear, from analyzing requirements to engineering to machining to quality inspection to delivery. Contact us at sales@yizmachinery.com to talk about your Gear Teeth Cutting needs with a reliable Gear Teeth Cutting provider who can help you get the best deals on transmission parts.
