Top Uses of Right Hand Helical Gear Systems

Right Hand Helical Gear systems are made up of precision cylinder-shaped parts with tooth traces that spiral clockwise along the rotation axis. They work very well in power transfer uses in mining, aircraft, and industrial machines. By engaging teeth gradually instead of suddenly, these gears solve important problems like working noise, vibration control, and load distribution. The curved tooth design makes line contact that grows during meshing, which greatly reduces impact stress and high-frequency noise that are typical in high-speed operations. Because they can transfer motion between parallel shafts when paired correctly, they are essential for uses that need smooth torque delivery, higher load capacity, and reliable performance in tough operating conditions.

​

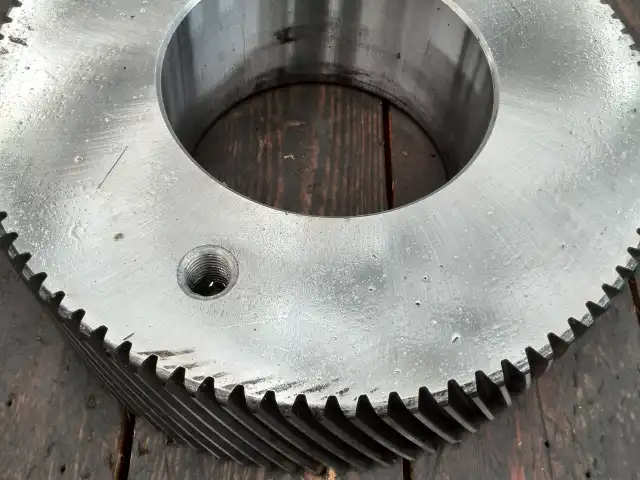

Introduction

Modern industrial power transfer relies on parts that work well, last a long time, and are reliable. Engineers and procurement workers who want to find solutions that balance performance with operating economy often choose Right Hand Helical Gear systems. In situations where regular spur gears don't work well, these parts really shine, especially when noise levels need to be lowered and load capacities need to be raised.

B2B buyers choose this option because it has measured benefits, such as higher contact ratios that spread stress across multiple teeth at once, better engagement patterns that reduce mechanical shock, and the ability to be mounted in a variety of ways. In this guide, we look at real-world uses ranging from heavy industry to precise instrumentation, compare performance traits of different types of gear, and give buying teams useful criteria for evaluating suppliers and choosing products. By understanding these technical and business aspects, decision-makers can choose parts that improve the performance of tools while keeping the total cost of ownership low.

Understanding Right Hand Helical Gears: Definition and Working Principles

Geometric Configuration and Tooth Orientation

A Right Hand Helical Gear has teeth that are cut at a certain helix angle, usually between 15° and 45°, and they spin clockwise when you look at the gear from the side. This geometric design is very different from left-handed versions where the teeth turn counterclockwise. The contact ratio is directly affected by the helix angle. When the angle is bigger, the teeth meet more during meshing cycles. This overlap means that multiple teeth share the transferred loads at the same time, which lowers the stress on each tooth surface.

Torque Transmission Mechanics

During operation, power is transferred through contact zones that slowly grow instead of full-width interaction happening all at once. When a pushing tooth goes into the mesh, contact starts at one edge and moves across the tooth face gradually. This pattern of gradually loading reduces contact forces and shaking amplitudes, which is especially helpful in high-speed situations where dynamic loads grow quickly. The angled tooth design creates axial thrust forces that are related to the transferred torque and helix angle, meaning that the right bearings must be chosen to keep the shaft in place when it's under operational loads.

Material Standards and Design Parameters

When these parts are made, high-quality alloy steels like 20CrMnTi, AISI 8620, and 18CrNiMo7 are used because they can be hardened and have a tough core. Carburizing, quenching and tempering, and induction hardening are all types of heat treatment that make the surface hard (58–62 HRC) while keeping the cores flexible so they can handle shock loading. Precision grinding processes provide ISO 8–9 grade accuracy, which is necessary to keep expected contact patterns and reduce early wear. Module ranges from 0.5 to 50 can be used for a wide range of tasks, from small instruments to big industrial gears that handle thousands of horsepower.

Top Industrial Applications of Right Hand Helical Gear Systems

Machine Tool Spindles and Precision Equipment

To keep precise limits while cutting, machine tool spindles need to be very accurate at rotating and have low vibration. Helical gear drives work well in these situations because they give power smoothly, which keeps finished surfaces from getting chatter marks. Angled teeth have a feature called continuous tooth engagement, which keeps cutting forces constant, directly improving the quality of the surface finish and making the tool last longer. These transmission elements help grinding machines, lathes, and milling centers achieve setting accuracy in the micron range while handling a range of cutting loads.

Compressor and Pumping Systems

Pulsating loads that test drive train parts are made by reciprocating and rotating compressors. Because it has long contact ratios and a slow engagement feature, Right Hand Helical Gear systems can handle these repetitive changes in stress. These systems are used in multistage compressors in oil and gas processing plants, where dependability has a direct effect on production downtime. Because they can handle shock loads without breaking, they are very useful in mining drainage pumps and industrial air compression equipment where keeping the equipment running is important for the project's costs.

Large Gearbox Assemblies

Heavy industrial gearboxes are used in places like steel rolling mills, cement mills, and mine conveyors to move large amounts of power—often over thousands of kilowatts—where part longevity is very important. The helical tooth shape makes it easier to distribute load, which is why these gears can last for decades when they are used continuously. Custom designs with up to 50 modules and face widths wider than 500mm can handle high power needs while still being efficient enough. Because it makes less noise than other spur options, it meets safety standards in tight working spaces.

Aerospace Actuation Systems

For aircraft control surface motors and landing gear retraction systems to work, they need small transmission solutions that can give a lot of torque with little backlash. Precision-ground helical gears made from aerospace-grade materials work reliably in a wide range of temperatures and pressure levels that are common during flight operations. The gradual contact pattern lowers impact loads during actuation cycles, making it possible to service parts more often between maintenance visits in situations that are sensitive to weight and where access to maintenance is limited.

Comparing Right Hand Helical Gears with Other Gear Types

Performance Against Spur Gears

Spur gears have straight teeth that are parallel to the shaft axis. This makes fast full-width contact, which makes more noise and dynamic loads. Even though they are easier to make, their contact ratios are usually less than 2.0, which means that loads are put on fewer teeth at once. Because their teeth are slanted, Right Hand Helical Gear options can get contact ratios close to 3.0 by spreading loads over larger surface areas. This difference is very important in high-speed situations where spur gears make too much noise (over 85 dBA), while helical designs are 10-15 dB lower in the same conditions. Axial thrust generation in spiral systems needs thrust bearings, which makes them more complicated than spur setups, but this trade-off is worth it in situations where smooth operation and load capacity are important.

Comparison with Bevel and Worm Gearing

Bevel gears move power between shafts that cross each other, usually at right angles. They do this with curved tooth shapes that make manufacturing harder and limit the width of the face. Their use is best for changing directions with little speed loss, while helical systems work best in parallel shaft setups that need big speed differences. Due to the way sliding contacts work, worm gearing is less efficient than helical gears (often 50–70% vs. 95–98%), but it can provide high reduction ratios in small spaces and can lock itself in place. Material compatibility is limited in worm sets, whereas steel-on-steel combinations with the right lubrication make helical systems last longer. Worm gears need to be serviced more often because they wear out faster and create more frictional heat than helical meshing gears that use rolling contact.

Advantages and Maintenance Tips for Right Hand Helical Gears

Helical tooth geometry has technical benefits that show up in a number of performance areas that have a direct effect on running costs and the efficiency of machinery. Industrial power transfer systems get the best return on investment when they know about these benefits and use proactive repair methods.

Here are the main benefits that these parts offer:

• Smooth Power Transmission: The gradual tooth contact gets rid of the impact loading that spur gears have, which lowers the vibrations that get sent to machinery that is attached. This smoothness saves sensitive equipment further down the line and raises the quality of the output in industrial processes that are sensitive to vibration.
• Enhanced Load Capacity: Contact ratios above 2.0 let more than two teeth share transmitted forces at the same time, which boosts torque capacity by 20 to 30 percent compared to spur gears of the same size. This benefit allows designers to specify smaller, lighter gears that meet certain power needs.
• Reduced Acoustic Emissions: The constant meshing action cuts down on working noise by a large amount, especially in high-speed situations where sound pressure levels drop by 10-15 dB compared to spur options. This improvement meets safety rules at work and lets tools be put in places that are sensitive to noise.
• High-Speed Capability: The controlled engagement forces and lower vibration allow for speeds higher than those possible with spur gears, expanding application possibilities in turbomachinery and high-speed spindles where spinning speeds reach thousands of RPM.

These performance traits directly address problems that come up in tough industrial settings, making the Right Hand Helical Gear technology especially useful for places that put a high value on long-lasting tools and consistent processes.

Practical Maintenance Guidelines

Choosing the right lubricant that works with the operating temperature and contact pressure is the first step to good upkeep. When high Hertzian pressures are present in helical tooth contacts, synthetic gear oils with EP additives keep the film strength. By checking the oil's state on a regular basis, wear particles can be found before a catastrophic failure happens. During regular checkups, the surfaces of teeth should be looked at for pitting, scoring, or other odd wear patterns that could mean misalignment or inadequate lubrication. Accelerometers used for vibration research can find problems long before they can be heard. Temperature tracking finds leaking grease or worn-out bearings so that they can be fixed before they cause more damage. Proactive steps, along with following the manufacturer's recommended repair intervals, increase the operating life and lower the costs of unexpected downtime.

Procuring Right Hand Helical Gears: What B2B Buyers Should Know

Evaluating Technical Documentation

Before making a purchase choice, you need to carefully read the datasheets that the seller sends you. These sheets list important details like the module, the pressure angle, the helix angle, the accuracy class (ISO 1328 or AGMA), the material composition, and the heat treatment specifications. Making sure that the surface hardness values meet the needs of the application stops early wear failures. For military and defense uses, being able to track materials by asking for papers that prove their alloy makeup and mechanical qualities is very important. Dimensional inspection records that show tooth profile deviations and runout readings are concrete proof of production quality for any Right Hand Helical Gear beyond what the seller says.

Supplier Credibility Assessment

Certifications like ISO 9001 quality management and industry-specific standards like AS9100 for aircraft uses show that a maker is qualified. Having CNC gear hobbing machines, precise grinding centers, and coordinate measuring machines in stock as production equipment shows that the company has the technical ability to meet tight standards. Long-term relationships with well-known industry companies show that you can be counted on to deliver quality products on time. Asking for customer examples from people in the same industry as you can give you information about how well you perform in real life and how quick your support staff is that marketing materials can't.

Balancing Cost and Lead Time Considerations

From the time an order is placed until it is delivered, custom gear production usually takes 35 to 60 days, including forging, machining, heat treatment, and precise grinding. Rush orders cost more and may not be worth it unless the costs of production downtime make faster delivery worth it. When buying teams know about these facts of manufacturing, they can balance the costs of keeping inventory with the longer lead times. When you buy from a supplier with a low minimum order quantity, you can make prototypes and get new parts without having to buy in bulk. Clear information about output schedules and possible delays builds trust, which is important for keeping suppliers for a long time.

Conclusion

Right Hand Helical Gear systems that are oriented in the right direction have measured performance benefits in industrial machinery, mining operations, and aircraft applications. These benefits come from better load distribution, less noise, and longer durability. Their gradual tooth contact pattern gets around major problems with other types of gears, especially in high-speed and precise uses where smooth operation has a direct effect on the quality of the product and the life of the equipment. To successfully buy something, you need to know technical details like the helix angle, the material makeup, and the accuracy grades. You also need to know how to evaluate suppliers by looking at their manufacturing skills and quality certifications. strategic sourcing and engineering benefits position these parts as cost-effective solutions for many different industry sectors.

Frequently Asked Questions

1. How do I determine appropriate helix angle for my application?

The choice of helix angle strikes a mix between the benefits of contact ratio and the creation of axial pressure. Higher angles between 25° and 35° are better for applications that need to run smoothly and carry a lot of weight. Lower angles, around 15-20°, lower axial forces while keeping the benefits of spur gears, making them good for situations where thrust load limits are present. Consulting application engineering help makes sure that the best standard is used to balance performance needs with mounting limitations.

2. What material grades suit corrosive environments?

Standard alloy steels work well in most industrial settings, but they rust when used in chemical processes or at sea. After the right heat treatment, stainless steel types like 17-4PH or 440C don't rust, but the price goes up because the materials are more expensive. Surface treatments, such as electroless nickel plating or special coatings, can make standard steel parts last longer in fairly corrosive environments without spending as much as using unusual materials.

3. Can helical gears reduce existing gearbox noise issues?

Adding Right Hand Helical Gear components to spur gear gearboxes that are already in use greatly lowers noise emissions, as long as the mounting arrangements can handle the axial thrust loads that are created by the teeth being at an angle. With the right choice of bearings and changes to the shaft support, this improvement path is possible. It reduces noise by 10-15 dB, which makes the workplace better and gives you more options for where to put equipment.
