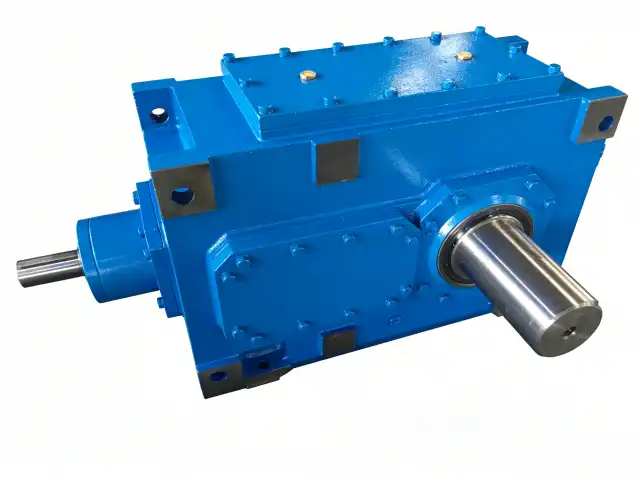

What Is Industrial Reduction Gearbox?

An Industrial Reduction Gearbox is a precise mechanical device for sending power that is meant to make the kinematic chain between the prime mover (usually an electric motor, turbine, or hydraulic motor) and the driven machinery work better. The input rotational speed (RPM) is slowed down by using complicated geared mechanism topologies like helical, planetary, bevel-helical, or worm gears, while the output torque (Nm) is appropriately increased. This is because energy is conserved. This gearbox solves some of the biggest problems in the industry, like not having enough torque, kinematic mismatches between high-speed motors and low-speed application needs, making the system more rigid to lower vibrations in heavy loads, and using less energy than hydraulic or belt drive options.

​

Understanding Industrial Reduction Gearboxes

The Core Working Principles

Reduction gears convert high-speed, low-torque motor output into low-speed, high-torque mechanical work. Input shafts spinning at 1400–3000 RPM engage gear sets that progressively slow rotation while boosting force. This transformation enables equipment to handle heavier loads, overcome starting inertia, and maintain high performance under harsh conditions. The gear ratio—calculated by dividing driven gear teeth by driving gear teeth—precisely determines speed reduction and torque multiplication in an Industrial Reduction Gearbox.

Main Types and Design Distinctions

Helical gears feature angled teeth that gradually mesh for smooth, quiet operation—ideal for heavy-duty conveyors and material handling with 94–96% efficiency per stage. Planetary gearboxes arrange multiple gears around a central sun gear, enabling compact designs with high torque density for robotics and aerospace. Worm gears use a screw-like worm meshing with a worm wheel for high single-stage reduction and self-locking capability, though efficiency ranges 50–90%. Bevel gears transmit power between intersecting shafts for differential drives.

Key Design Factors and Efficiency Metrics

Modern Industrial Reduction Gearbox design prioritizes factors directly affecting operating costs and system life. Material selection uses high-quality alloy steels like 42CrMo, 20CrMnTi, and AISI4140, heat-treated to 58–62 HRC surface hardness—excellent wear resistance with tough cores handling shock loads. Precision matters: Coordinate Measuring Machines verify ISO 5-6 Grade standards keeping profile, lead, and pitch errors within tight limits. This accuracy maintains noise below 75–80 dB(A) at one meter and prevents heat buildup.

Key Benefits and Industrial Applications

Primary Advantages of Modern Gearbox Technology

Strategic use of an Industrial Reduction Gearbox leads to measured gains in operations in a number of areas. Better torque control lets machines handle different loads without the motor stopping or getting too hot. This is especially helpful when starting up, when inertia resistance is highest. This controlled power transfer makes parts last longer by stopping shock loading, which wears out bearings and gear teeth too quickly.

Operational stability comes from strong construction with cast iron GG25 or spheroidal graphite iron GGG40 housings that naturally reduce vibrations. The modular housing designs we use make it easier for repair workers to get to the units while still keeping the structures' integrity during constant duty cycles. When energy efficiency goes up, electrical use goes down directly. For example, a properly designed gearbox that works at 96% efficiency loses only 4% of the power it receives as heat, while belt drive systems often lose 15-20%.

Here are the core advantages that make reduction gears so important in tough situations:

• High Power Density: Small footprints allow setups with limited room without sacrificing torque capacity, making it possible to add them to current production lines without having to completely change how they are set up.
• Exceptional Durability: Our production methods, such as forging, hobbing, milling, and grinding, make parts that can survive millions of load cycles. These parts are backed by full material integrity testing using spectrometric analysis and Magnetic Particle Inspection (MPI).
• Customization Flexibility: Module ranges from 0.5 to 50, pressure angles of 14.5° or 20°, and unique tooth counts make it possible to precisely match the needs of different businesses and applications.
• Superior Load Handling: High radial and axial load limits allow shaft-mounted uses to work without external bearings, which makes installation easier and lowers the overall cost of the system.

Essential Industrial Scenarios

Many types of industries depend on efficient power transfer, and the Industrial Reduction Gearbox is essential to those industries. In mining and aggregates operations, planetary and bevel-helical units handle very high start-up torques of more than 200% of their standard values while also being able to handle changing impact loads from breaking blades. To keep gritty dust out of these units, they need special labyrinth seals, which are sometimes called taconite seals. In these situations, the Service Factor usually goes above 2.0 to allow for enough safety gaps.

Material handling systems depend on how well the gearbox works 24 hours a day, seven days a week. The main focus is on soft-start features that keep the load from falling over and low backlash setups that allow for exact positioning accuracy measured in arc-minutes. In water and wastewater treatment plants, gearboxes are mounted vertically on top of tank systems. To handle the large bending moments caused by long mixing shafts, these facilities need strengthened output bearings set up in spread bearing setups.

Machine tool spindles need the highest levels of accuracy. Our ISO 5-6 Grade accuracy makes sure that made parts always have the same dimensional limits. For accurate motion control, robotic joints use small planetary designs that offer high power density while keeping slack to a minimum. Our high-tech materials, like SAE4340 and 18CrNiMo7, are used in aerospace because they can handle big changes in temperature and keep their shape when they are vibrated at high frequencies. Gearboxes are used in assembly conveyors, indexing tables, and automated packing tools where steady torque output lets multiple machines work together in sync.

How to Choose the Right Industrial Reduction Gearbox?

Assessing Operational Requirements

Before choosing the right Industrial Reduction Gearbox configuration, all operating factors must be carefully studied. When figuring out load capacity, you have to take into account both the normal working torque and the high transient loads that happen during starting or emergency stops. Conditions in the working area, such as temperature ranges, contamination levels, and exposure to corrosive substances, decide the types of materials used for the housing and the designs of the seals. Duty cycle classification—intermittent vs. continuous operation—affects the complexity of the lubricant system and the amount of heat control that is needed.

Core Selection Criteria

Finding the right gear ratio for the speed needs is done by dividing the motor speed by the output speed. Multi-stage setups or variable frequency drive integration may be helpful for applications that need more than one output speed. The way the bearings are mounted and how they are oiled are affected by the direction of the mounting. For example, vertical setups need pressure lubrication systems, while horizontal arrangements may work well with splash lubrication. When choosing a gear ratio, you have to weigh the need to slow down against the need to be efficient. Keeping the number of stages as low as possible lowers the long-term costs of running the equipment.

Comparing Gearbox Variants

Planetary gears work best when they need to be small and have a lot of power. Their connected input and output shafts make integration easier, and spreading the load across several planet gears lowers the stress on each one. The efficiency usually ranges from 96 to 98% per stage, and their torsional stiffness makes them good for servo-driven uses that need accurate motion control. The main problem is that it costs more at first than other options. Helical forms are very cost-effective and work smoothly while being very efficient. Worm gears have the best reduction ratios for single stages and automatically lock themselves when lead angles stay below certain limits.

Evaluating Manufacturers and Suppliers

Reputable makers show their dedication by offering full warranty coverage. For an Industrial Reduction Gearbox, this usually lasts for one year, but some premium providers offer longer safety for important uses. Quality suppliers are different from commodity suppliers because they offer technical help during the planning, installation, and fixing stages. During the buying process, we offer advice on design drawings, help with technical specifications, and real-time reports on the progress of production. Our factories can make modules with ranges from 0.5 to 50, can support unique tooth counts, and can finish the outside in a number of ways.

Maintenance, Common Problems, and Troubleshooting

Routine Maintenance Guidelines

Preventative repair plans are the key to making an Industrial Reduction Gearbox last longer and work reliably. When to lubricate depends on the job cycle, the environment, and the working temperatures. Mineral-based industrial gear oils with the right thickness grades keep protective films between gear teeth in place, while synthetic lubricants let you go longer between changes in hot places. In important situations, the oil level should be checked once a week, and full oil changes should be done as recommended by the maker, which is usually every 2,000 to 5,000 hours of operation.

Common Issues and Root Cause Analysis

Monitoring vibrations finds new problems before they become major problems. Setting up baseline vibration patterns during launching gives us a way to look at trends. Gradual rises mean that the damage is getting worse over time, while quick changes mean that there are serious problems that need to be looked into right away. Too much noise usually means that the tooth contact pattern isn't right, the greasing isn't right, or there is foreign material in the system. High working temperatures could mean that there isn't enough heat absorption, there is too much friction loss, or the wrong lubricant was used.

Practical Troubleshooting Methods

Systematic methods to diagnosis cut down on downtime when problems happen. Unusual shaking needs to be stopped and inspected right away to keep parts from breaking in terrible ways. By looking at the wear patterns on a bearing, you can tell if the problem is misalignment, poor lubricant, or contamination. When gear teeth are inspected, they are found to have pits, scores, or spalling that mean the part needs to be replaced. Oil analysis gives useful information about what's going on inside without having to take things apart. Recording repair tasks and changes in performance over time lets us find patterns across groups of equipment.

Procurement Insights: Buying, Customization, and After-Sales Support

Sourcing Options and Purchasing Strategies

Buying channels have a big effect on the total cost of purchase, the dependability of delivery, and the quality of expert help. When you work directly with a maker, you avoid the markups that come with distribution and have access to engineering knowledge during the development of specifications. We are happy to take both large orders that offer savings of scale and custom orders that are made to fit the needs of a specific purpose. Our normal OEM customization process ensures that the Industrial Reduction Gearbox is produced exactly to requirements.

Pricing Considerations and Lead Time Planning

Gearbox prices are based on the cost of materials, the difficulty of making them, the level of accuracy needed, and the level of customization. When compared to custom-engineered options, standard catalog items usually have lower prices and shorter lead times. With production times ranging from 35 to 60 days, we can work with normal project planning timelines. Custom specs using special materials like SAE4340 or unique heat treatment methods like induction hardening make lead times longer but give better performance for tough uses. The size, weight, and location of the gearbox all have a big impact on the cost of shipping.

Installation, Warranty, and Replacement Parts

Common commissioning mistakes that hurt performance and life can be avoided by hiring professionals to do the work. Checking the smoothness of the mounting surface, making sure that foundation bolt pressure specifications are met, and performing the initial lubrication steps set up the best conditions for the Industrial Reduction Gearbox. A comprehensive guarantee protects you against problems with the way the product was made. How well repair works over the life of a gearbox depends on how easy it is to get replacement parts. We offer visual tracking from start to finish, with real-time order updates sent at every step.

Conclusion

In industrial machinery, mining activities, and aircraft, an Industrial Reduction Gearbox is an important part of mechanical power transfer systems. Understanding how they work, recognizing configuration benefits, and using organized selection criteria help procurement pros come up with the best options that balance performance needs with budget limitations. Strategic relationships with suppliers and proactive repair practices ensure reliable operation over longer service lifecycles. As businesses look for ways to use less energy and be more reliable, properly chosen and kept gearboxes offer measured value through less downtime, lower energy use, and longer equipment life.

FAQ

1. What factors influence reduction gearbox lifespan?

Service life is based on the intensity of the operating climate, the quality of the upkeep, the type of load, and the original design specs. Industrial Reduction Gearbox units that are kept clean, kept at the right temperature, and properly oiled usually last longer than 20 years. Regular oil changes, vibration tracking, and seal upkeep make it possible for machines to work for a lot longer between big overhauls.

2. Can gearboxes be customized for specific applications?

Customization meets specific operational needs that can't be met by regular catalog goods. For specific uses, our engineering team changes the gear ratios, shaft shapes, mounting setups, and material requirements to get the best performance. Custom solutions are good for making prototypes, replacing old equipment that needs to be compatible in terms of size, and harsh locations that need special sealing or rust protection.

3. How does gearbox efficiency affect energy costs?

Losses in efficiency turn electrical energy into waste heat instead of work that can be done. A motor that works at 95% efficiency always loses 5% of the power that goes into it. For a 75 kW motor that runs for 8,000 hours a year, every percentage point of efficiency loss loses about 6,000 kWh, which adds up to a lot of money over the life of the equipment. High-efficiency layouts can explain higher prices by lowering cooling needs and running costs.
