Precision Spur Gear Uses in Robotics and Automation Systems

Precision Spur Gears are important parts of transmission in modern robots and automation systems. They move torque reliably between parallel shafts and control motion precisely. These cylinder-shaped gears have straight teeth that are cut parallel to the axis. They are made to very tight ISO 5-6 or 8-9 grade standards, which guarantees very little backlash and high positional accuracy. They are used in articulated robotic arms, automated guided vehicles, CNC machines, and conveyor systems where reliability and consistency are key to running a successful business.

​

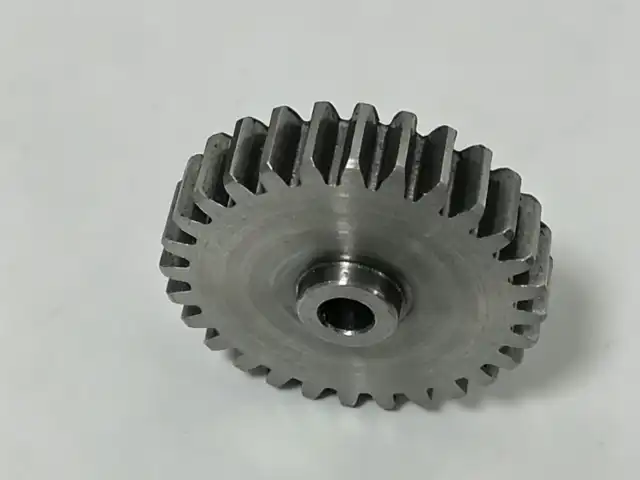

Understanding Precision Spur Gears in Robotics and Automation

Because they are made with more care and to exact measurements, Precision Spur Gears are very different from regular industrial gears. Forging, cutting, hobbing, milling, and grinding are all used on each gear to get a surface finish of less than 0.4µm Ra and a pitch mistake of less than 0.01mm per 100mm. This careful production makes sure that the meshing is smooth and that the velocity rates stay the same, which is important for automatic equipment.

Operating Principles and Design Specifications

These gears move circular motion between shafts that are parallel to each other. The teeth engage radially, making pure rolling contact while they're working. The involute tooth shape makes sure that the pressure angles stay the same during the mesh cycle, so the loads are spread out evenly across the tooth face. Our Precision Spur Gears are made to meet ISO standards. They come in units from 0.5 to 50, have tooth counts that can be changed, and have a surface hardness of 45 to 50 HRC or 58 to 62 HRC, based on the needs of the application. There are different types of heat treatments, such as induction hardening, cooling and tempering, and carburizing. Each one is best for different types of loads and working situations.

Key Advantages Over Standard Gears

Better manufacturing accuracy directly leads to changes in performance that can be measured. Noise and vibration are kept to a minimum by reducing profile errors. This is especially important in laboratory automation and medical robots, where quiet operation is important. Positioning accuracy is improved to within 3 arc-minutes with tighter tolerances. This lets surgery robots and tools used to make semiconductors reach micron-level consistency. Load distribution changes make standard gears last 40–60% longer, which cuts down on repair needs and the cost of unplanned downtime.

Material Selection and Performance Impact

The choice of material has a big impact on how gears behave under stress. Some of the best metals are 20CrMnTi, 40CrNiMo, SAE4340, and AISI8620. They have great strength-to-weight ratios and can have tensile strengths of over 1000 MPa after the right heat treatment. Micropitting and bending wear don't happen with these materials in high-cycle situations like those found in pick-and-place machines. For moderate-load uses like conveyor drives, 45# steel is a cost-effective choice. Special metals like 18CrNiMo7 are better for aircraft actuation systems that need to work in temperatures ranging from -50°C to +150°C. Each choice of material strikes a balance between the gear's load capacity, its ease of machining, and its total cost of ownership over its lifetime.

Core Applications of Precision Spur Gears in Robotics and Automation

These days, modern robotic systems need transmission parts that work the same way over millions of operating cycles. Precision Spur Gears meet this need in a wide range of application settings.

Robotic Arm Joint Actuators

For assembly tasks, articulated robots need precise spur gears inside planetary gearboxes to multiply force and keep their positions accurately. A common six-axis industrial robot has 12 to 18 precision gears spread out across its joint mechanisms. Each one keeps backlash below 5 arc-minutes to make sure that the end effector's tooling accuracy is within 0.05 mm. The high transfer efficiency of the gears—often reaching 98%—reduces heat production, so they can be used continuously without losing their positional accuracy due to thermal drift. When collaborative robots (cobots) work with human operators, the lower vibration traits are especially helpful because they improve safety and part quality in delicate assembly jobs.

Automated Guided Vehicles and Mobile Robots

Precision Spur Gears are built into the drive systems and steering devices of AGVs that move materials around industrial sites. These gears have to be able to handle shock loads from uneven floors while keeping the wheels in perfect sync so that they can follow the lines within ±10mm. The gears' strong load-bearing ability can handle changes in payload without affecting performance, and their small size lets them fit into tight areas inside the car chassis. Leading transportation companies' warehouse automation systems show that choosing the right gears can cut energy use by 15 to 20 percent compared to belt-driven options by making the machines more mechanically efficient.

CNC Machinery and Inspection Equipment

For exact tool positioning along the X, Y, and Z axes, computer numerical control systems need communication with zero backlash. In tool movers and ball screw drive systems, precise spur gears keep the accuracy of position to within ±0.003mm over hundreds of thousands of cycles. Coordinate measuring machines (CMMs) and optical inspection units use these gears in their moving platforms to make sure that measurements are accurate enough to meet international standards. The gears are stable at room temperature and don't bend much when probe forces are applied. Because the teeth are simple shapes, they are easier to change during routine maintenance. This cuts down on machine downtime to less than 30 minutes, compared to several hours for helical gear systems that need to be shimmied and aligned.

High-Speed Conveyor Systems

Modern production lines that move consumer goods, drugs, or food rely on conveyor systems that keep the time between stations spot on. Roller drives and transfer systems use precise spur gears to keep belt speeds within ±0.5% of each other. This keeps products from getting damaged or out of line when they are passed from one processing stage to the next. They can work at pitch line speeds of more than 20 m/s while staying quiet at or below 75 dB, which makes them perfect for cleanrooms that need to control noise and particles.

Comparing Precision Spur Gears with Alternative Gear Types

To choose the best gear type, you need to know how the shape of the gear affects performance factors that are important for your application. Precision Spur Gears are often compared to helical types for their specific advantages.

Precision Spur Gears vs. Helical Gears

Helical gears have teeth that are at an angle, which creates axial thrust forces that need thrust bearings and more complicated housing designs. Helical gears are quieter when they're running at high speeds, but Precision Spur Gears don't have these problems because they have zero axial load, which makes choosing bearings easier and cuts assembly costs by 20 to 30 percent. The shape of the straight teeth makes it easier to check and measure with standard gear testers. This makes quality control easy during production and in the field. Transmission efficiency is higher for Precision Spur Gears (98–99%) than for helical types (96–98%). This is because the pure rolling contact reduces sliding friction losses, which is important for battery-powered mobile robots that need to save energy to run longer.

Load Capacity and Cost Considerations

A well-designed Precision Spur Gear can bear helical loads if the face width is adjusted right. Precision Spur Gears are simple to produce and work well, making them ideal for budget-conscious applications. This reduces similar-spec manufacturing costs by 25%. When catalog alternatives don't fulfill center distance, module, or material criteria for hostile environments or high temperatures, custom gear solutions are worth the additional expense. Understanding minimal order numbers maximizes purchasing dollars. Many manufactures require 50–100 pieces, however Henan Yizhi Machinery can create one for prototypes and low-volume specialty equipment. This enables engineers test designs before mass manufacturing. Custom standards typically 35–60-day wait times, so plan your orders around design revisions and shipment timeframes.

Procurement Guide for Precision Spur Gears

For B2B procurement to work, technical needs must be balanced with the supplier's skills, pricing, and the dependability of transportation. A methodical technique lowers the risks and costs of purchase as a whole for Precision Spur Gears.

Evaluating Supplier Credentials

Quality markers prove craftsmanship objectively. For medical and aerospace supply chains with tight requirements, ISO 9001 and ISO 14001 certifications establish process consistency and environmental friendliness. Request inspection records of recent manufacturing lots' pitch accuracy, surface polish, and hardness. Reliable suppliers record all material certifications and gear serial numbers. AS9100-compliant aircraft need this. Production tools impact tolerances. vendors with high-precision CNC gear grinding equipment and CMMs may securely offer ISO 5–6 gears, whereas hobbing vendors may only be able to handle ISO 8–9. Go to companies or ask for detailed equipment listings to ensure skills fit project needs.

Figuring out how prices work

The material, accuracy grade, heat treatment difficulties, and quantity of gears ordered determine the price of accurate spur gears. Small modules (0.5 to 3) with fine pitch cost $15 to $50 individually in groups of 100 to 500. Larger modules (10–50 units) cost $80–$300 apiece, depending on diameter and face width. Heat treatment increases price by 20–35%, but it extends product life enough to justify the cost in high-cycle settings. Bulk orders are quite cost-effective. Because the setup time is distributed across many pieces, ordering 500 units instead of 100 generally reduces the cost per unit by 30 to 40%. Negotiating annual supply arrangements with scheduled releases helps establish a budget and receive favorable rates. Many vendors provide consignment inventory for bulk buyers. These organizations stock excess goods at client locations to save emergency shipping fees.

Making the ordering process easier

Full specs must be recorded for purchase to function. Skillful drawings of the module, pressure angle, teeth count, face width, bore size, and keyway may prevent costly misunderstandings. Specifying inspection criteria, such as complete CMM reports or witness testing, ensures that the gear satisfies quality standards. Custom manufacturing requests should include a tolerance stackup study showing how gear accuracy influences system performance. This professional discussion helps providers recommend specific grades that satisfy cost and function criteria. When you approach experienced producers like Henan Yizhi Machinery to review your design, they can typically minimize costs by making tiny dimensional modifications that make manufacturing simpler without impacting performance. Logistics preparation is crucial when shopping abroad. FOB, CIF, and DDP indicate who pays for shipping, insurance, and customs. Supplier-customized shock-absorbing wrapping and timber boxes reduce transportation damage, lowering defect rates to 0.1%. Real-time tracking allows you forecast delivery by seeing the whole supply chain.

Optimizing Robotics and Automation Performance with Precision Spur Gears

The performance potential built into Precision Spur Gears when they are made is maximized by following the right installation and upkeep procedures.

Installation Best Practices

For effective tooth connection and uniform load distribution, center lengths should be maintained within ±0.05mm. Dial marks provide shaft alignment during installation, preventing edge stress and wear. Setting the backlash to 0.04-0.08mm for most usage enables smooth operation with low motion loss. Tighter backlash improves positional accuracy but increases friction and noise, therefore cleaning must alter. Gear runout depends on mounting surface flatness. By machining gear mounting flanges to 0.02 mm or greater, they won't wobble while spinning, preventing uneven tooth loading. Instead of bolt rings, precision finding features like register fittings improve fit and reduce vibration.

Lubrication and Maintenance Strategies

Lubricating gears decreases friction, corrosion, and heat, extending their lifespan. Low-speed operations with a pitch line velocity under 5 m/s benefit from splash lubrication. Forced circulation systems are required at greater speeds when heat output exceeds passive cooling. For outdoor mobile robots that must cope with weather fluctuations, synthetic oils may be utilized from -40°C to +150°C. Lubricant density balances film strength and spinning losses. ISO VG 220 oils are excellent for low-speed operation, whereas VG 320–460 grades protect mining gears from shock loads. Controlling contamination using seals and filters prevents abrasive particles from accelerating wear. Sound and oil sampling monitoring systems may detect issues before they become major. Changing sounds indicate worn bearings or broken teeth. This allows replacements during scheduled maintenance rather than emergencies. High iron levels in oil indicate abnormal wear rates and should be investigated.

Emerging Technology Trends

New manufacturing methods make precision gear better and simpler to locate. Selective laser sintering allows additive production of complex gear designs. Topology optimization reduces airplane weight by 30–40%. Mixed techniques that employ additive manufacturing for blanks and conventional teeth cutting for working gears show promise for speedy prototypes and small-scale production. Surface polish prevents direct 3D printing. When Industry 4.0 is linked, tracking and maintenance are easy. RFID tags in gear blanks provide digital twins that monitor the part's production specifications, installation location, and operational history throughout its existence. Condition monitoring sensors that record temperature, vibration, and sound emissions feed machine learning algorithms that determine how long something will perform and when to replace it to minimize total cost of ownership. New materials like nanostructured steels and metal matrix composites offer 50% stronger gearboxes that are smaller. In hostile environments, carbon fiber reinforced polymers keep electricity away and prevent corrosion, making mobile robots lighter. These novel innovations allow Precision Spur Gears to be used in previously difficult settings.

Conclusion

Precision Spur Gears are still needed in robots and automation systems that need to control movements reliably, be very efficient, and last a long time. Their simple form makes it easier to make things with tight tolerances while also making installation and upkeep easier. By choosing the right materials, exact grades, and sources that are best for the needs of the application, these parts will work as expected for the whole time they are in use. As manufacturing technologies improve and Industry 4.0 ideas become more established, Precision Spur Gears will continue to change to meet the needs of industries like mining, aerospace, and industrial tools that need more and more automation.

Frequently Asked Questions

1. In robotics, what makes precision spur gears different from regular gears?

Precision versions have tighter limits on pitch precision, profile errors, and runout—usually an ISO 5–6 grade vs. ISO 8–9 grade for normal gears. This higher level of accuracy means that backlash is less than 3 arc-minutes, which is needed for robotic arms and CNC machines to be able to position themselves consistently. Standard gears are enough for conveyor drives that don't need to be as precise.

2. What factors have the biggest effect on the price of a large order?

It depends on the material you choose, the quality grade, how complicated the heat treatment is, and how many items you buy. Due to more grinding processes, going from ISO 8-9 grade to ISO 5-6 grade raises prices by 40 to 60 percent. Through setup depreciation, ordering 500 or more units instead of 100 cuts the cost of each piece by 30 to 40 percent.

3. Can makers meet the specific needs of customers who want unique gear?

Reliable providers offer full customization, which includes non-standard modules, custom tooth profiles, unique bore setups, and materials that are made to work with a certain application. Custom orders usually take between 35 and 60 days to make, and the minimum order quantity varies from manufacturer to manufacturer. Some manufacturers accept orders for a single sample, while others need at least 50 to 100 units.

Partner with Henan Yizhi Machinery for Superior Precision Spur Gear Solutions

Henan Yizhi Machinery Co., Ltd. has been making high-quality, Precision Spur Gears for 15 years. These gears are used in mining equipment, military systems, and industrial machinery. Our ISO-compliant factory uses cutting-edge CNC gear grinding machines, automatic heat treatment lines, and high-precision testing tools to make parts that meet ISO 5-6 and 8-9 grade standards. We make gears out of high-quality materials like 20CrMnTi, 40CrNiMo, SAE4340, and AISI8620. The modules can be changed from 0.5 to 50, and the surface hardness can be set between 45 and 62 HRC. As a reliable provider of Precision Spur Gears, we can handle orders for anything from a single sample to high volumes. Our bulk prices are reasonable, and we guarantee delivery within 35 to 60 days. As part of our full range of services, we offer technical advice and design help before the sale, as well as synchronized production updates, documents from quality inspections, and a one-year guarantee. Email our engineering team at sales@yizmachinery.com to talk about your unique needs and get personalized suggestions that will work best with your robotic systems.
