Planet Gear Reducer Uses in Automation

The Planet Gear Reducer technology has changed the way factories work by combining high-quality torque multiplication and speed reduction in incredibly small packages. A sun gear, several planet gears, and a ring gear all work together in these precision-engineered devices to spread mechanical loads across many contact points at the same time. With this multi-point contact, automated systems in mining, manufacturing aircraft, and industrial machinery can consistently perform well under tough operating conditions while still being energy-efficient and leaving a small footprint.

​

Understanding Planet Gear Reducers in Automation

The basic structure of Planet Gear Reducer systems is based on a complex load-sharing theory that makes them different from other reduction methods. When power is sent to the sun gear, it turns on three to five planet gears that are circling around it at the same time. These planet gears work with an internal ring gear to make more than one load line. This increases both the torque capacity and the mechanical durability. Because they are engaged at the same time, each gear tooth only has to carry a small part of the total load. This greatly reduces wear patterns and increases the operating lifetime.

Core Components and Their Functions

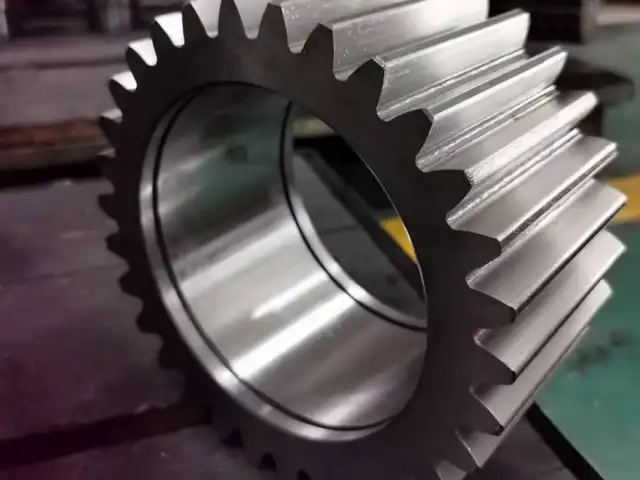

The sun gear is the main input element. It gets its rotating energy from servo motors or drive systems. Planet gears that are attached to a carrier unit spin on their own axes and around the sun gear. The ring gear surrounds the whole assembly and provides either the stationary or output element, based on the setup. Because of this setup, torque can be spread across multiple contact points at the same time. This is why these units have torque levels three to four times higher than similar worm gear systems that take up the same amount of mounting room.

Design Variations and Selection Criteria

Inline planetary designs put the input and output axes in a straight line, which makes them perfect for robotic joints and precision instrument transmission systems where it is easier to install things when they are lined up along the x-axis. Right-angle designs change the direction of power flow by 90 degrees, which works with conveyor drives and other equipment that moves things around. Choosing between helical and spur tooth profiles affects noise levels and load smoothness. Helical teeth engage gradually along their angled faces, lowering vibration and sound levels by up to fifteen decibels, while spur profiles engage abruptly across their entire face width.

Performance Metrics That Matter

Ratings of 95–97% efficiency per reduction stage mean that very little energy is lost during power transfer, which is very important when working nonstop across three shifts. Specifications for backlash less than three arc-minutes allow for positioning accuracy that is needed for CNC machines and automatic production stations. Torsional stiffness values show how well the gear doesn't bend when loads change. High stiffness keeps tolerances at the micron level during interrupted cutting operations where tool contact changes cyclically.

Advantages of Planet Gear Reducers Over Other Types in Automation

Procurement teams consistently find Planet Gear Reducers outperform other reduction technologies. Worm gear reducers achieve only 50–70% efficiency due to sliding friction, wasting electricity and generating heat. Multi-stage helical trains require larger housings for sequential shafts. Planetary designs offer coaxial input-output for compact footprints—critical for robotic arms where weight reduction improves energy efficiency. Core advantages include superior torque density, low inertia enabling 120+ picks/minute in delta robots, enhanced durability through load-sharing (three planet gears distributing stress for 20,000+ hour life), and 15–20 dB lower noise than worm drives. Higher initial investment pays back through reduced energy costs and downtime.

Key Industrial Automation Applications of Planet Gear Reducers

Planet Gear Reducer units are widely used because they meet the needs for precise motion control in many different industry areas. Knowing what the application needs helps tech teams choose the right settings and performance levels.

Robotics and Precision Machinery

Collaborative robots require smooth torque delivery without jerky movements. Planet Gear Reducer units from 20CrMnTi alloy steel undergo carburizing heat treatment achieving 58–62 HRC surface hardness while maintaining core toughness. This hardness gradient withstands repeated stress cycles in robotic joints operating millions of cycles annually. For machine tool rotary tables requiring accurate movement without vibration, planetary designs meeting ISO 5-6 precision grades provide concentricity for micron-level machining accuracy, ensuring reliable positioning in high-precision manufacturing environments.

Conveyors and Material Handling Systems

Distribution center belt drives experience frequent starts/stops under varying loads. Planet Gear Reducer handles high shock loads (typically 300% of rated torque) enabling emergency stops without component damage. Multiple planet gears managing loads efficiently allows smooth heavy pallet movement from standstill—critical for automated guided vehicles where wheel drive modules overcome static friction while supporting radial loads from vehicle weight transmitted directly to output shafts. This durability ensures reliable material handling operations.

Packaging and Assembly Lines

In packing, where fill weights, seal positions, and box formations must match specs over millions of rounds, repeatability is what makes the job successful. Precision speed control made possible by low-backlash Planet Gear Reducer designs makes sure that the flow of products and packaging materials are perfectly aligned. These reducers are built into assembly line torque tools to make sure that the connecting forces are always the same. This keeps joints from being too loose, which can fail, or too tight, which can damage threaded parts.

Automotive and Aerospace Manufacturing

Reducers are put through constant high-torque transmission in heavy-duty uses like welding car bodies and making aircraft parts. The units made from 42CrMo or SAE4340 materials can handle these tough conditions and keep their shape even when the temperature changes. Surface finishing methods, such as hard chrome coating, protect against corrosive coolants and metal chips that are common in machining settings. This keeps the seal's integrity to keep the lubrication inside the machine.

Selecting the right Planet Gear Reducer setups increases output by matching the torque capacity, reduction ratio, and mounting options to the needs of the application. This lowers the risk of premature wear and sudden system breakdowns.

How to Choose the Right Planet Gear Reducer for Your Automation Needs?

Specification accuracy during the selection phase tells you if the Planet Gear Reducer equipment you buy meets working needs without being over-engineered, which drives up costs for no reason. Systematic evaluation processes that match technical factors with application needs are helpful for procurement pros.

Technical Requirements Assessment

Look at the load inertia, friction coefficients, and acceleration curves to figure out how much output power is needed. Shock loads are taken into account by safety factors between 1.5 and 2.0 during starting and emergency stops. Servo motors usually have input speeds between 1500 and 3000 RPM, and output speeds between 100 and 500 RPM, based on whether the application calls for fast movement of packing or slower movement of the conveyor. It is normal to find reduction ratios between 3:1 and 100:1. Higher ratios can be reached by arranging multiple planetary steps in a concentrically spiraling pattern. Spatial constraints dictate mounting designs—flanged options attach directly to motor faces, while foot-mounted options are good for replacement situations. Different ways of connecting can be used with shaft setups that have solid, hollow-bore, and shrink disc connections. In industrial machining centers, IP65 grades for environmental protection make sure that coolant mist and particulate pollution don't get into interior parts.

Efficiency and Maintenance Considerations

Using less energy has a direct effect on how much it costs to run tools over its entire life. Units that are more than 95% efficient use less electricity and make less heat. Different types of lubrication include sealed lifetime grease systems that don't need any upkeep and oil-lubricated designs that work well in high-power, continuous-duty uses that produce a lot of heat. NLGI Grade 00 or 000 synthetic greases have the flexibility needed for cold starts and keep their film strength at working temperatures. Reliability metrics including mean time between failures inform lifecycle cost projections. Choosing the right bearings for planet carriers can change how much they can hold and how often they need to be serviced. For example, precision angular contact bearings are best for high-speed uses, while tapered roller bearings can handle both radial and thrust loads in positioning systems.

Manufacturer Comparison and Procurement Factors

Established names have been around for a while and have been shown to work. However, they may make customization harder and wait times longer. YIZHI MACHINERY has been making specialized gears for fifteen years, with a focus on custom solutions for the mining, aircraft, and industrial machinery sectors. Our production methods include milling, grinding, forging, cutting, hobbing, and forging to make parts from alloy steels like 20CrMnTi, 40CrNiMo, and AISI4140. With the ability to do heat treatments like carburizing, quenching and tempering, and induction hardening, surface hardness levels can be set anywhere from 45 to 50 HRC to 58 to 62 HRC, based on the needs of the application. Customization capabilities address unique requirements that normal catalog items can't. Module ranges from 0.5 to 50 can fit both small, precise tools and big, heavy machines. Pressure angles of 14.5° and 20° make tooth shapes work best for certain types of stress. Surface finishing methods like blackening, phosphating, and hard chrome plating offer rust protection that works well in real-world settings. Lead times significantly affect project plans—our normal process takes 35 to 60 days to complete, including discussing requirements, designing, producing, inspecting for quality, packing, and shipping. Volume flexibility lets you make both big production runs and samples of a single unit, without having to meet the minimum order requirements that some sellers put in place. Technical help during the pre-sales process makes sure that the specs match the needs of the application before the production promises are made.

Maintenance Tips to Maximize Planet Gear Reducer Efficiency in Automation

Regular repair keeps Planet Gear Reducer units running smoothly and saves money by avoiding costly unplanned downtime that delays production. Setting up regular review schedules helps find problems early on, before they become major problems.

Lubrication Management

Grease-lubricated units need to have their seals checked on a regular basis to make sure they don't let dirt or grease leak in. When operating temps are higher than normal, it could mean that the parts aren't properly oiled or are under too much stress. Synthetic greases keep their viscosity better at high and low temperatures than petroleum-based options. This is especially important in aerospace uses where the environment changes. Oil-lubricated systems need level checks and periodic analysis for metallic particles indicating abnormal wear. Magnetic drain plugs capture ferrous debris, providing visual indication of internal conditions. The recommended oil change times are usually between 2,000 and 5,000 hours, but this can vary based on the load and how much the temperature changes.

Inspection Protocols and Troubleshooting

Unusual sound emissions often happen before motor breakdowns. When a gear tooth is damaged, it makes clicking sounds that are timed to the speed of spinning. Higher-frequency grinding noises are caused by worn bearings. Thermal imaging finds areas of heating caused by misalignment or poor lubrication before they get too hot and damage the part. Vibration analysis uses frequency spectrum patterns to find unbalanced situations and bearing flaws that are starting to form. During commissioning, baseline readings are taken to set points of comparison for regular tracking. Misalignment of the shaft between the motor and gear inputs creates radial forces that speed up bearing wear. Ensuring that the coupling is aligned within a limit of 0.1 mm stops failures before they happen. Overheating beyond rated operating temperatures indicates excessive loading, inadequate ventilation, or viscosity breakdown. Ambient temperatures surrounding equipment should allow convective cooling without thermal accumulation. Duty cycle reductions or auxiliary cooling provisions may prove necessary in thermally challenging environments.

Upgrade and Retrofit Considerations

Equipment modernization opportunities arise when production demands exceed original design parameters or when efficiency gains support capital investment. When older worm gear systems are replaced with Planet Gear Reducer alternatives, twenty to thirty percent less energy is used while the power capacity goes up. Depending on how often the machines are used, replacing old ones with more energy-efficient ones pays for themselves in twelve to twenty-four months through lower electricity bills. Custom engineering support helps identify compatibility requirements during replacement planning. Mounting dimensions, shaft configurations, and ratio matching ensure retrofitted units integrate seamlessly with existing drive trains and control systems. These strategic upgrades extend equipment service life while improving performance metrics that affect production throughput and product quality.

Conclusion

Planet Gear Reducer technology gives modern machinery the torque density, economy, and dependability it needs. These precision-engineered parts make it possible for machines like high-speed packaging robots and heavy-duty mine conveyors to work consistently even when conditions are tough. Choosing the right specs for the job, taking into account things like torque capacity, reduction ratios, environmental protection, and ease of upkeep, will ensure that the system works well for a long time. Strategic relationships with makers that offer customization options, technical advice, and quick support make buying things easier while also solving operating problems that standard catalog goods can't fully solve.

FAQ

1. What is the typical service life of planetary gear reducers in industrial automation?

Under normal load conditions, an expected operational lifespan of more than 20,000 hours is common. Many units in well-maintained systems can last 40,000 to 60,000 hours before they need major component replacement. To figure out the service life, comparable torque models are used, which take into account duty cycles and high loading events. In harsh settings where contaminants or temperature changes are common, gaps may be shortened. This makes it very important to handle sealing and lubrication properly.

2. Can these units withstand sudden shock loads during emergency stops?

When designed correctly, Planet Gear Reducer systems can handle shock loads of up to 300% of their standard torque rate. This means they can handle sudden stops without damage right away. Single-point breakdowns are avoided because the load is spread across several planet gears. This is not possible with other reduction methods. Repeatedly being exposed to shocks still leads to tiredness, which is why duty cycle analysis is important during design to make sure that the right safety factors are included.

3. Are custom configurations available for specialized applications?

Manufacturers who can do a lot of different kinds of machining can change standard designs to fit different mounting needs, shaft shapes, and performance standards. Custom tooth counts, material choices, and surface treatments meet specific needs in aircraft actuation, precision instruments, and extreme environment uses where standard stock goods fail.

Partner With YIZHI MACHINERY for Custom Planetary Gear Solutions

YIZHI MACHINERY offers Planet Gear Reducer options that are perfectly matched to your automation needs by combining specialized manufacturing knowledge with quick customer service. Our precision cutting and production methods that are in line with ISO standards allow us to customize everything from a single sample to full production runs. As an experienced manufacturer, we don't have to follow the minimum order requirements that other sellers do, which limits your options. Our engineering team offers full technical support from the first talks about requirements to the final approval of designs, making sure that the specs exactly match what your application needs. Modules 0.5 to 50 can be produced, and materials such as 20CrMnTi, 40CrNiMo, and AISI4140 alloys can be used to meet the needs of a wide range of industrial tools, mining, and aircraft applications. Surface hardness ranges from 45 to 62 HRC, which lets you get the best wear protection for the load you're using. Delivery times of 35 to 60 days keep projects on track, and customized packaging that keeps items safe during travel and real-time package tracking make everything clear. Our one-year guarantee and quick problem settlement show that we care about our customers after the sale. Contact us about how our custom Planet Gear Reducer solutions can make your automation systems work better by emailing sales@yizmachinery.com.

References

1. Dudley, D.W. (1994). Handbook of Practical Gear Design and Manufacture. CRC Press, Boca Raton, Florida.

2. Müller, H.W. (1982). Epicyclic Drive Trains: Analysis, Synthesis, and Applications. Wayne State University Press, Detroit, Michigan.

3. Lynwander, P. (1983). Gear Drive Systems: Design and Application. Marcel Dekker, New York.

4. International Organization for Standardization. (2006). ISO 6336: Calculation of Load Capacity of Spur and Helical Gears. Geneva, Switzerland.

5. Radzevich, S.P. (2012). Dudley's Handbook of Practical Gear Design and Manufacture, 2nd Edition. CRC Press, Boca Raton, Florida.

6. American Gear Manufacturers Association. (2015). AGMA 6123-B06: Design Manual for Enclosed Epicyclic Gear Drives. Alexandria, Virginia.
