Large Gear Wheel vs Small Gear: Key Differences Explained

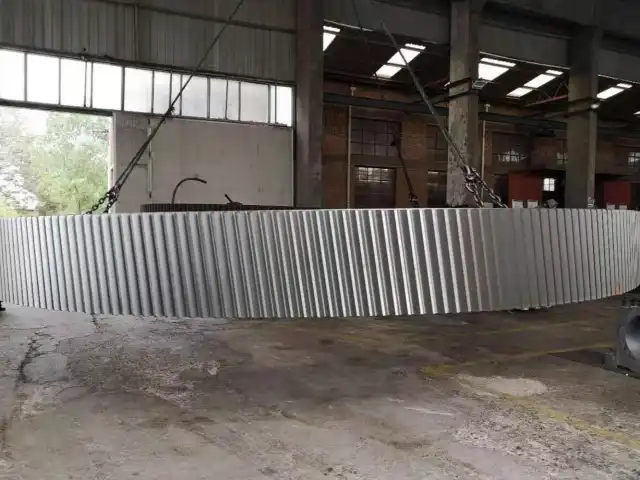

Understanding the difference between big gear wheels and smaller gears is still very important when buying gearing parts for business uses. A Large Gear Wheel, also known as a bull gear, girth gear, or ring gear, usually has a width of more than 1,000 mm and can send huge amounts of power at low rotational speeds. This makes it an essential part of heavy-duty machines like rotary kilns, ball mills, and mining equipment. On the other hand, small gears can work at higher speeds with less power, making them perfect for small precise systems. Most of the differences are related to torque capacity, size limitations, material choice, production difficulty, and fit for a given application. In the mining, industrial machinery, and aircraft industries, picking the right gear type has a direct effect on how well equipment works, how much it costs to maintain, and how long it lasts.

​

Understanding Large Gear Wheels and Small Gear Wheels

Fundamental Definitions and Physical Characteristics

Gear wheels are essential power transmission components, converting speed-torque relationships and transferring rotational energy. Large Gear Wheels feature heavy-duty circular sections with precisely cut teeth handling massive loads—diameters 1–14 meters, modules 20–50. Small gears focus on compactness and speed—widths rarely exceed 500mm, modules 0.5–8. YIZHI MACHINERY manufactures both types using advanced casting, cutting, hobbing, milling, and grinding processes, ensuring ISO 5-6 quality standards regardless of size.

Material Selection and Manufacturing Processes

Gear performance under stress, temperature variation, and corrosive environments depends on material selection. Large gears require alloy steels like 42CrMo, AISI4140, 18CrNiMo7 with 800–1000 MPa core tensile strength. Heat treatments (carburizing, quenching/tempering, induction hardening) achieve 58–62 HRC surface hardness while maintaining tough, shock-resistant cores. Small gears use similar materials but may incorporate lighter metals when weight reduction is critical. Manufacturing sequences include forging, precision hobbing/milling, grinding, and heat treatment.

Mechanical Operation Principles

Understanding power transfer explains why gear size matters. The gear ratio relationship is inverse—large, slow-rotating gears produce high torque; small, fast-rotating gears reduce torque but increase speed. Large Gear Wheels meshing with small pinions produce high reduction ratios for applications requiring strong, controlled low-speed motion—rotary kilns and SAG mills. Small gears excel in machine tool spindles, robotic joints, and precision instruments where fast, accurate positioning matters more than raw power.

Key Differences Between Large and Small Gear Wheels

Performance Characteristics and Mechanical Capabilities

Gear size directly correlates with torque handling and operating speed ranges. Large gears typically transmit torques exceeding 5,000 kNm—essential for heavy machinery like wind turbines and material processing equipment. Their large tooth sizes (modules 30+) distribute loads over larger contact areas, lowering stress levels and extending wear life. Small gears operate in the opposite performance range—torques measured in Newton-meters rather than kNm, speeds of thousands of RPM—ideal for aircraft actuators and automated assembly systems.

Dimensional Constraints and Design Integration

Equipment manufacturers face distinct spatial constraints based on gear selection. Large Gear Wheels require robust mounting brackets, heavy-duty bearing systems, and rigid support structures to prevent bending under load. Many large gears ship in segments (2–4 pieces for diameters over 4 meters), requiring precision bolted joints maintaining tooth pitch across seams. Small gears integrate easily into compact housings, enabling minimized machine dimensions. YIZHI MACHINERY customizes tooth counts, modules (0.5–50 range), and pressure angles to fit specific dimensions.

Material Durability and Service Life Considerations

Durability expectations differ significantly between gear types. Large gears in open-gear setups face abrasive dust, temperature fluctuations, and corrosive gases. Advanced metallurgy selecting materials like 40CrNiMo with surface hardness 260–320 HB or up to 55 HRC provides wear resistance. Planned service life is 20–25 years with proper maintenance. Small gears operate in controlled environments but face high-speed friction heat and cyclic stress fatigue. Fine-grained, through-hardened materials prevent cracking. Ultrasonic testing per ASTM A609 validates internal integrity.

Noise, Vibration, and Maintenance Requirements

Operational characteristics differ by gear scale. Large gears naturally generate noise and vibration due to rotating mass and open gear mesh. High-viscosity open gear lubricants (OGL) sprayed by automatic systems require FZG load stages above 12. Small gears produce lower absolute vibration but need tighter tolerances to minimize noise in confined spaces. Precision grinding to ISO 5-6 ensures smooth tooth contact. Large gears need quarterly tooth flank inspections; small enclosed gears may operate years without service when properly lubricated.

Choosing the Right Gear Wheel for Your Project

Assessing Project-Specific Requirements

Four factors determine gear selection: required torque output, operating speed range, available installation space, and precision level. Heavy industries (mining, construction) need large gears that maintain operation under stress—single gear failure can halt production lines costing thousands per hour. Precision manufacturing (aerospace components, medical devices) values small gears for micron-consistent positioning. YIZHI MACHINERY provides expert consultation analyzing load calculations, duty cycles, and environmental factors before recommending gear specifications, with detailed CAD models ensuring compatibility.

Comparative Evaluation Across Industrial Scenarios

Understanding the benefits that are specific to an application makes choosing vendors and buying things easier. When used in heavy industry, these are the main benefits of big gear wheels:

• Unmatched Torque Transmission: Big gear wheels work best in situations that need a lot of torque but can't fit smaller gear systems. For example, they work great when turning 500-ton kiln shells or powering autogenous mills that process hard rock ore. Their large tooth sizes give them the technical edge they need for these heavy loads.
• Durability Under Harsh Conditions: In mining and cement production, equipment is exposed to rough particles, high temperatures, and constant shaking. These harsh conditions don't affect big gears made from fine alloy steels that have been treated with a special heat. They keep their shape and mesh structure for decades of use.
• Serviceability and Repair Options: When big gear wheels wear out, they have useful ways to fix them. Small pits can be fixed on-site, and in some designs, gears can be turned over to use tooth sides that haven't been worn down yet, which extends their useful life before they need to be replaced.

These benefits make it easier to keep making things in businesses that need a lot of capital and where machine breakdowns have a direct effect on profits and operational goals.

Custom Manufacturing Versus Standard Component Selection

Custom Large Gear Wheel manufacturing accommodates special material requirements, non-standard ratios, and unique dimensions standard parts cannot meet. Production typically requires 35–60 days due to forging complexity, precision machining, and thorough quality inspection. Standard small gears ship more quickly (often weeks), suitable for replacements or standard design machines. Custom small gears enable performance optimization in competitive industries where marginal efficiency gains yield significant advantages. YIZHI MACHINERY accommodates both approaches with low minimum order quantities.

Application Areas and Industry Uses

Heavy Industry Applications for Large Gear Wheels

Mining SAG and ball mills use girth gears exceeding 10 meters diameter to tumble rock, reducing particles through impact and friction—requiring high root fatigue strength. Cement rotary kilns rotating at 1–4 RPM while processing limestone above 1,400°C depend on Large Gear Wheel sets maintaining mesh alignment despite thermal expansion. Materials like 42CrMo and AISI4140 retain strength at elevated temperatures. Construction equipment specifies large gears for crane slewing rings. Offshore applications require protective surface finishes like hard chrome plating.

Precision Equipment Applications for Small Gears

Small gears excel where accuracy, precision, and rapid response are critical. Aerospace flight control actuators, landing gear assemblies, and auxiliary power units use materials like 18CrNiMo7 and 20CrNi2Mo with optimal strength-to-weight ratios. Precision grinding to ISO 5-6 ensures smooth, predictable operation across temperature variations. Robotics joint systems and end-effector drives depend on small gears for precise angular positioning under computer control. Automotive transmissions house numerous small gears managing ratio changes. Medical device surgical robots require both precision and material traceability.

Emerging Technologies Influencing Gear Selection

Material science advances continuously reshape gear selection criteria. Powder metallurgy enables near-net shape manufacturing—reducing machining requirements while ensuring uniform material properties. Surface engineering innovations including plasma nitriding and diamond-like carbon coatings provide superior wear resistance beyond conventional heat treatment, enabling longer service life in demanding conditions. Additive manufacturing shows potential for complex small gear geometries. However, conventional forging and machining remain optimal for large gears due to size constraints and mechanical property requirements.

Installation, Maintenance, and Technical Specifications

Large Gear Installation Procedures and Critical Considerations

To install a Large Gear Wheel correctly, you need to pay close attention to the force, alignment, and fitting instructions. If the big gear and its matching pinion are not lined up correctly, even by 0.1 degrees, the loads are concentrated on the tooth edges instead of being spread out across the whole face width. This speeds up wear and could lead to catastrophic root fractures. Laser alignment systems give installers the accuracy they need by checking that the parts are parallel and that the center distance is within the limits of ±0.5mm for important purposes. The choice of bearings and how they are mounted must take into account both horizontal and vertical loads while still letting the supporting structures expand as they heat up. Large gears are often attached directly to equipment shells (like rotary kilns) or huge ring structures (like ball mills). This means that the holes for the bolts have to be accurate to within 0.2 mm to avoid stress during assembly that could change the shape of the gear. We give our clients thorough installation plans that show how to tighten the bolts, how much shimming is needed, and how to check the alignment. This way, we can make sure that our clients get the best mesh conditions from the very beginning.

Routine Maintenance and Preventative Care Protocols

To make gear last longer, it needs to be maintained in a way that is consistent with its working surroundings. Open-gear uses need to keep an eye on the lubrication to make sure that the film width is right so that there is enough space between the tooth surfaces during each mesh cycle. Automatic spray systems should send lube to the side of the mesh that is disengaging. This will let centrifugal forces spread the material across the tooth edges before the mesh engages again. Inspection times rely on how hard the equipment is being used, but for big gears that are always in use, they are usually checked every three months. Technicians look at the sides of teeth for pitting (surface fatigue) and scoring (lubrication breakdown). They also measure the wear depth and compare it to the case depth specs. By putting dye on the pinion teeth and looking at the transfer patterns on the big gear, blue matching tests make sure that the contact patterns stay the same across face widths by 70% or more, which means the load is being distributed correctly. Small enclosed gears need different repair methods that focus on checking the state of the lubricant and analyzing vibrations. Oil analysis finds pollution and wear particles before they cause more damage. Vibration monitors find imbalances or worn-out bearings before they break. This allows condition-based maintenance, which stops breakdowns before they happen. We offer technical support services for both types of gear, where expert engineers help with problems, planning repairs, and making sure the best performance is achieved throughout the lifecycle of the equipment.

Custom Design Principles and Technical Resources

Creating exact measurements and specifications is the first step in making custom gear. Together with our clients, we choose the best tooth numbers, modules, pressure angles, and material grades for each purpose at hand. Computer-aided design tools make tooth shapes that meet AGMA 6014 standards for open gearing or ISO 6336 standards for load capacity estimates. Finite element analysis checks how stress is distributed under expected working conditions. Manufacturing limits get a lot of attention. Large gear wheels usually meet the standards set by AGMA Quality Class 8-10 or ISO 1328 Grade 8-10. This is done by combining the need to make the wheel with its ability to do its job. Tighter tolerances, which can be reached by precise grinding, lower noise and shaking but make production more difficult and cost more. We help our clients make these trade-off decisions by suggesting tolerance levels that meet performance goals without spending too much money. Detail dimensional drawings, material certificates, heat treatment reports, and records of non-destructive tests are all part of technical paperwork files. These tools help with planning installations, making upkeep plans, and getting compatible parts in the future. Throughout the lifetime of a product, our engineering team is always ready to help, whether the working conditions change or the equipment needs to be changed.

Conclusion

In industrial machinery, mining, and aerospace uses, choosing between large gear wheels and small gears has a big impact on the equipment's abilities, prices, and upkeep needs. Large gear wheels transmit power better than any other part for heavy-duty tasks. They can handle huge loads in difficult conditions thanks to strong materials and special manufacturing methods. Small gears work great in precise tasks that need high speeds, tight integration, and exact placement. To do a good job of buying, you need to carefully look at the torque needs, room limitations, environmental conditions, and precise standards. Custom manufacturing from experienced suppliers like YIZHI MACHINERY guarantees that the best gear specifications, high-quality materials, and tried-and-true manufacturing methods offer reliable performance over long service lives, protecting both output and capital investments.

FAQ

1. How do I determine whether my application requires a large gear wheel or small gear?

Think about three main things: the amount of strength you need, the room you have for installation, and the speed at which you need to work. Large gear wheels work best for systems that need more than 1,000 Nm of torque and rotate slowly (less than 100 RPM), while small gears work best for systems that need a lot of torque but rotate quickly (more than 500 RPM). Talking to experts on gears is the only way to be sure of an accurate assessment based on all the working conditions and job cycles.

2. What materials work best for heavy-load mining applications?

Alloy steels like 42CrMo, AISI4140, and 18CrNiMo7 give mining tools the best mix of strength, hardness, and resistance to wear. These materials can handle surface hardening processes that reach 58–62 HRC and have core tensile strengths of 800-1000 MPa. They can also handle abrasive wear from mineral dust and impact loading from rock pieces.

3. What lead times should I expect for custom large gear wheel orders?

From the time an order is confirmed until it is delivered, the production of a custom Large Gear Wheel usually takes 35 to 60 days. This time includes forging, heat treatment cycles, precise machining sequences, and thorough quality checks. Shorter lead times may be possible for rush orders, but normal lead times make sure that the manufacturing process is thorough enough to guarantee that the parts will work as expected and meet performance standards.

Partner with YIZHI MACHINERY for Precision Gear Solutions

YIZHI MACHINERY is ready to help you buy the gear you need. They have been making specialized products for 15 years, working with industries like mining, aerospace, and industrial machinery around the world. As a reliable Large Gear Wheel supplier, we offer custom gear solutions, ranging from huge girth gears to precise small parts. Our quality systems are in line with ISO standards, and we offer a wide range of expert services. Our engineering team can help you with design, make CAD models, and give you advice on how to get the best results while staying within your budget and time frame. We have flexible production options that let us take orders for anything from a single sample to mass production. Our reliable global operations include systems that track shipments in real time and protect products from damage during shipping. Contact our technical specialists at sales@yizmachinery.com to discuss your specific gear requirements, request quotations, or schedule consultations that transform your mechanical transmission challenges into reliable, efficient solutions.
