Helical Teeth Gear Uses in Modern Machinery

Every part of today's industrial systems needs to be accurate, reliable, and efficient for the systems to work. Most of the time, Helical Teeth Gear with their unique angled tooth design work better than straight-tooth options, which is one of the most important things that makes power transfer smooth in many situations. These angled teeth connect gradually during spinning, making continuous contact that greatly lowers vibration and noise while spreading loads across several teeth at the same time. More and more, industries like mining, aerospace engineering, the auto industry, and precision robotics depend on Helical Teeth Gear technology to meet their tough operational needs, where smooth torque delivery and long component lifespan are key to staying ahead of the competition.

​

Understanding Helical Teeth Gears and Their Design Principles

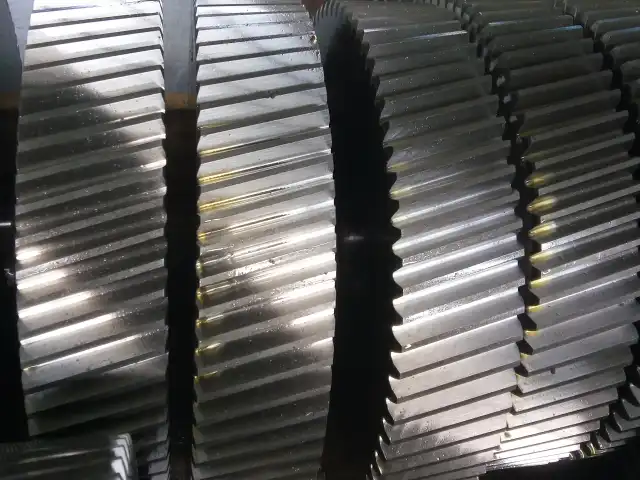

Helical Teeth Gear are built around teeth that are cut at a certain angle, called the helix angle, to the gear's axis of movement. Helical designs are different from spur gear designs because they have a gradual contact pattern that is caused by the angles.

The Critical Role of Helix Angle in Load Distribution

Most of the time, the spiral angle is between 5° and 45°, but angles between 15° and 30° are better for commercial uses. This position controls how slowly the teeth fit together during operation. Smaller angles, like those around 5°, produce little axial thrust but less smoothness. Angles greater than 30°, on the other hand, produce large axial forces that need strong bearing support for quiet operation. This angle creates a progressive contact that makes sure load moves easily from one tooth to the next. This stops the shock loading that wears out straight-tooth designs too quickly. In high-speed situations, we've seen that helix angles that are properly designed can cut transmission error by up to 40% compared to spur gears.

Material Selection and Manufacturing Excellence

To make Helical Teeth Gear, you need to know a lot about metals and be able to machine them precisely. Premium grade steels are the building blocks of making gear that lasts. After the right heat treatment, materials like 20CrMnTi, SAE4340, AISI4140, and 18CrNiMo7 have the right mix of core stiffness and surface hardness. Forging is the first step in the production process. This sets up the best grain flow patterns. Next, cutting processes like hobbing and milling are used to make the helical tooth shape. Precision grinding is the only way to get the finished dimensions that are accurate enough to meet ISO 5-6 Grade standards.Some heat treatment methods, like carburizing, cooling and tempering, and induction hardening, change the structure of the metal so that the surface is between 58 and 62 HRC hard while the core stays flexible. This difference in hardness keeps the tooth surfaces from wearing down or getting pits, and the gear body can handle shock loads without breaking. Module specs running from 0.5 to 50 can be used for a wide range of tasks, from small instruments to huge industrial reducers.

Common Helical Gear Configurations

There are three main designs that meet different technical needs. The most common way for gearboxes and transmissions to set up gears is with parallel Helical Teeth Gear connecting shafts with parallel axes. Crossed Helical Teeth Gear connects shafts that are at different angles, usually 90 degrees, but they slide against each other, which limits the amount of weight they can hold. When there are opposite helix angles in double Helical Teeth Gear, also known as herringbone gears, there is no axial thrust. This means that thrust bearings are not needed in high-load situations. In naval propulsion systems and big industry reducers, this design is often used because axial forces would make other bearing arrangements more difficult.

Common Applications and Performance Benefits of Helical Teeth Gears

Because Helical Teeth Gear technology is so flexible, it can be used in many industries where the needs are greater than what simpler gear types can handle.

Industrial Machinery and Manufacturing Equipment

Machine tool spindles must slow down accurately without wobbling to maintain cutting accuracy. Helical Teeth Gear keeps teeth in contact throughout the mesh cycle, providing this performance. We create gears for CNC machines with spindles above 4,000 RPM and positioning precision within microns. The slow tooth contact pattern prevents oscillating forces from chattering the tool and roughening part surfaces.Helical designs can carry heavy loads, making them ideal for factory compressors. The larger contact ratio—often above 2.0—distributes compressive forces over many teeth. This load sharing extends part life compared to spur gears in similar settings. Our manufacturing experience with compressor manufactures demonstrates that correctly defined Helical Teeth Gear may last over 50,000 hours in continuous-duty applications.

Mining Equipment and Heavy-Duty Reducers

Mechanical components are subjected to shocks and abrasive materials in mining. Large gears for power breakers, elevators, and lifting equipment must be sturdy. The enhanced load-bearing capacity of Helical Teeth Gear is crucial in these settings. The clean contact pattern and surface hardness of 58–62 HRC prevent dust from producing gritty wear and shocks from propagating through gear trains.Customised Helical Teeth Gear with up to 50 modules has been delivered for mine hoists, where a single tooth failure might halt output. Gears made of 42CrMo and 40CrNiMo can withstand long-term high loads and emergency braking peak forces.

Aerospace and Precision Transmission Systems

Aerospace applications must minimise weight, ensure reliability, and perform smoothly. Helical Teeth Gear in aeroplane motors and auxiliary drive systems must perform well in all temperatures while adding minimal weight. The helical mesh form naturally achieves 98% stage efficiency. This reduces energy losses that heat tiny aeronautical systems.Helical Teeth improve robot and autonomous manufacturing precision motion equipment. Gears are ground precisely to reduce backlash. Gear train mechanical play must be eliminated for robotic joints to keep their locations properly. Helical Teeth Gear teeth grind to ISO 5-6 Grade precision. High-precision automation applications need constant placement within arc-seconds.

Here are the main reasons why Helical Teeth Gear are better for tough industry settings in terms of performance:

• Noise Reduction: The slow contact pattern lowers the impact forces between teeth that mesh, which quiets the operation by 15 to 25 decibels compared to spur gears of the same size. This decrease is helpful for manufacturing sites that are trying to meet OSHA standards for noise exposure at work.
• High-Speed Capability: Because the teeth stay in contact with each other throughout the mesh cycle, the machine can run smoothly at high speeds, where spur gears would cause damaging noises. This feature is especially useful for applications that go faster than 3,000 RPM.
• Longer Service Life: Spreading the load across several teeth at once lowers high stress levels, which increases the fatigue life. Field data from our clients shows that these gears have 40–60% longer service lives than spur gears in the same uses.
• Smooth Power Transmission: Since there is no shock loading, the power delivery is always the same, which is good for precise tasks and processes that are sensitive to mechanical changes.

Because of these benefits, Helical Teeth Gear technology is the basis of current power transmission design. It solves important practical problems in many industries. Proper upkeep, such as choosing the right lubricant and keeping an eye on its state, keeps these benefits going for as long as the gear is in use, making the most of the money spent on it.

Comparing Helical Gears with Other Gear Types for Optimal Procurement Decisions

When procurement experts look at different Helical Teeth Gear choices, they need to know how the different ones compare in terms of performance so they can choose parts that meet operational needs and stay within their budget.

Performance Comparison Across Gear Types

Helical Teeth Gear works well for smooth motion and high load capacity, reaching 96–98% efficiency per mesh. Spur gears are simpler and cheaper but noisy and vibrational at 1,500 RPM. Spur gears avoid axial thrust, but smooth operation negates this benefit. Bevel gears distribute power across intersecting shafts but need specialist manufacture, raising cost and lead time. Worm gears are small and have large reduction ratios, but sliding friction lowers their efficiency (50–70%) and causes heat accumulation that requires cooling in continuous operation.

Material Selection Strategies for Demanding Environments

Operating circumstances strongly influence material choice. Industry burners and engine-adjacent systems need alloy steels that can withstand temperatures beyond 200°C. After heat cycles, AISI4140 and SAE4320 remain strong. Marine and chemical operations need stainless steels or coatings. Helical Teeth Gear is made from alloys such 20CrNiMo and AISI8620, but environmental exposure modification extends service life without affecting mechanical performance or durability.

Evaluating Total Cost of Ownership

One aspect in overall cost is initial purchasing price. Project timetables are affected by 35–60-day lead periods, making early procurement planning crucial. Custom specs may delay delivery, emphasizing early supplier interaction. Helical Teeth Gear reduces lifespan costs by lasting longer and requiring fewer replacements. Despite greater upfront costs, helical designs are preferred for purchasing, installation, energy usage, and maintenance frequency. Reliable suppliers maintain quality and avoid unexpected breakdowns that might interrupt operations.

How to Choose and Purchase Helical Teeth Gears for Your Operation

A complete study of the needs is the first step in buying Helical Teeth Gear that works. Other steps include evaluating suppliers, placing orders, and getting help after the sale.

Analyzing Application-Specific Requirements

Accurate load analysis, including peak and sustained torque needs, helps choose the proper Helical Teeth Gear. Material selection and heat treatment depend on speed ranges, and variable or reversing loads necessitate fatigue resistance. Temperature, pollution, and lubrication systems affect material and sealing options. Mining requires dust-resistant designs, whereas maritime settings need corrosion protection. To meet system needs, teeth count, module (0.5–50), and helix angle (5°–45°) are customized, and engineering collaborates to optimize performance and integration.

Evaluating Supplier Credentials and Capabilities

Supplier credentials affect product dependability. ISO-certified systems show organized quality management, whereas ISO 5–6 precision grades show tight tolerances. CNC machining centers and automated grinding systems maintain quality across production volumes. Technical expertise is shown by vendors with mining, aerospace, and industrial equipment experience. Long-term collaborations and excellent client records suggest stability, consistent performance, and complicated application technical assistance.

The Procurement Process from Quotation to Delivery

Early supplier participation boosts procurement. After discussing requirements, quantities, and schedules, collaborative design optimization begins. Sample production validates performance before full-scale manufacture with adjustable minimum order quantities. Production updates provide transparency and schedule control. Dimensional correctness, material characteristics, and surface quality are checked before shipping. Warranties and technical support boost confidence after purchases. Helical Teeth Gear is delivered safely and quickly with protective packaging and several transit choices.

Future Trends and Innovations in Helical Teeth Gear Technology

Improvements in manufacturing technology and materials science keep making Helical Teeth Gear better, which opens the door to better performance and operating economy.

Advanced Manufacturing Techniques

Additive manufacturing is increasingly complementing traditional production of Helical Teeth Gear. While full gear production via additive methods remains limited, hybrid approaches combining additive blank creation with conventional finishing show strong potential. These methods reduce material waste and enable complex geometries. Advances in alloy development focus on improving strength and temperature stability, particularly for aerospace applications where weight reduction is critical. Continuous evaluation of new materials ensures integration of proven innovations into production for enhanced performance and durability.

Condition Monitoring and Predictive Maintenance

Reactive maintenance is becoming predictive with IoT sensors. Vibration monitoring identifies early wear patterns for scheduled downtime repair. Temperature sensors detect lubrication or contact stress before failure. Replacement intervals are optimized using predictive analytics to maximize component longevity and minimize maintenance. Helical Teeth Gear's progressive wear allows early identification and better long-term asset management.

Sustainability and Efficiency Improvements

Optimised tooth geometry and surface treatments minimize friction and energy consumption. Even tiny benefits affect ongoing, large-scale operations. Waste minimization and energy-efficient manufacturing are becoming mainstream. Biodegradable oils make lubricants more environmentally friendly. Helical Teeth Gear's long term and high efficiency reduce replacement frequency and material use, helping firms meet economic and environmental objectives.

Conclusion

Helical Teeth Gear technology is the best way to go for industrial uses that need to run smoothly, carry a lot of weight, and last a long time. The increasing tooth engagement feature of helical designs makes a big difference in how well industrial tools, mining equipment, and aircraft systems work. These benefits are maximized throughout the lifecycles of components by using the right materials, producing them precisely, and making smart choices about where to buy them. You are welcome to use our knowledge and manufacturing skills to solve your toughest power transfer problems.

FAQ

1. Why are helical gears quieter than spur gears?

In Helical Teeth Gear, the teeth are at an angle, so they don't all make contact at once, but rather slowly connect. This progressive engagement spreads loads over several teeth throughout the mesh cycle. This gets rid of the impact forces that make spur gears noisy. The helix angle creates a continuous contact pattern that lowers sound transfer through gear housings. This further lowers noise emissions. This working feature is very helpful for applications that need to work in noisy areas.

2. Can helical gears operate in high-temperature environments?

When Helical Teeth Gear are made from the right grade steels and are heated to get the right metallurgical qualities, they work well at high temperatures. When choosing a material, it's important to think about the temperatures that it will be used at so that it keeps its strength and shape over time. Temperature ranges must also be taken into account by lubrication systems. Synthetic oils are often used for uses that go above 150°C. Based on your unique temperature needs, our research team makes suggestions for materials.

3. What lead times should we expect for custom helical gear orders?

Production times depend on how complicated the job is, how many items need to be made, and how busy the factory is right now. It usually takes 35 to 60 days from the time an order is confirmed until it is shipped for standard configurations with modules and tooth counts that are within widely made ranges. Custom specs that call for unique materials, high levels of precision, or big units may cause timelines to be pushed back. Early involvement in the planning stages of a project allows for accurate schedule predictions and effective buying management, which stops equipment commissioning from being held up by critical path delays.

Partner with YIZHI MACHINERY for Superior Helical Gear Solutions

YIZHI MACHINERY makes Helical Teeth Gear that are precisely designed to meet your specific working needs. Our manufacturing plant is ISO-compliant and has 15 years of experience making specialized products for the mining, aircraft, and industrial machinery industries. It has advanced CNC machining centers. We can handle tasks ranging from a single prototype unit to mass production, and we always keep the ISO 5–6 Grade level of accuracy across all production amounts. Customized packaging keeps items from getting damaged during shipping, and our multi-channel logistics network guarantees on-time arrival around the world in 35 to 60 days. Get in touch with our engineering team at sales@yizmachinery.com to talk about your needs and get accurate quotes from a reputable helical gear maker that cares about your business's success.

References

1. Dudley, D.W. (1994). Handbook of Practical Gear Design and Manufacture. CRC Press, Boca Raton, Florida.

2. Radzevich, S.P. (2012). Dudley's Handbook of Practical Gear Design and Manufacture, Second Edition. CRC Press, Boca Raton, Florida.

3. American Gear Manufacturers Association (2015). AGMA 2015-1-A01: Accuracy Classification System - Tangential Measurements for Cylindrical Gears. Alexandria, Virginia.

4. International Organization for Standardization (2013). ISO 1328-1:2013 Cylindrical Gears - ISO System of Flank Tolerance Classification. Geneva, Switzerland.

5. Budynas, R.G. and Nisbett, J.K. (2015). Shigley's Mechanical Engineering Design, Tenth Edition. McGraw-Hill Education, New York.

6. Gear Technology Magazine (2021). Modern Gear Manufacturing: Processes and Innovations in Industrial Power Transmission. The Gear Technology Foundation, Elk Grove Village, Illinois.
