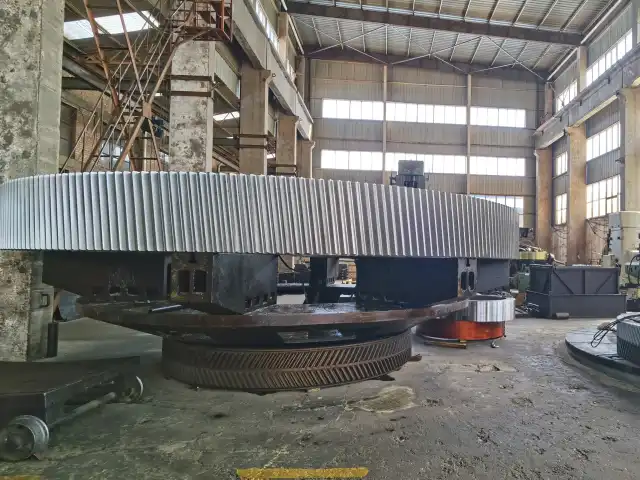

Helical Gear Wheel Uses in Modern Machinery

In industrial gear, mining operations, and aerospace systems, Helical Gear Wheel components play a crucial role in power transfer. The teeth on these precision-engineered gears are cut at an angle to the gear face, usually between 5° and 45°. This creates a slow contact that makes the gears much quieter and less likely to vibrate than traditional spur gears. In heavy-duty situations where shock loading and constant torque transmission can be hard on equipment reliability, Helical Gear Wheels provide smoother performance while supporting higher load capacities per unit volume. This makes them essential for manufacturers who want to prioritize both efficiency and durability in tough production environments.、

​

Understanding Helical Gear Wheels: Design and Functionality

The Mechanics Behind Angled Tooth Engagement

One thing that makes a Helical Gear Wheel unique is its slanted tooth shape. In spur gears, the teeth are lined up straight to the shaft axis. In Helical Gear Wheel designs, the teeth are lined up at an angle, making a spiral path around the gear body. This design lets teeth connect slowly by increasing contact, which starts as a point and turns into a line as the tooth turns. The end result is a much higher contact ratio, which spreads the load forces over several teeth at once instead of putting all the stress on one area of each tooth.

Critical Design Parameters That Influence Performance

Helix angle affects operational smoothness and axial thrust. Angles 5°–15° produce less axial force; angles near 45° provide quietest operation and even load distribution but higher thrust loads needing robust bearings. Material selection uses SAE4340, AISI4140, 20CrMnTi, 40CrNiMo. Heat treatments achieve 45–62 HRC surface hardness. Module specs 0.5–50 accommodate small instruments to mining equipment. Manufacturing includes forging, cutting, hobbing, milling, precision grinding achieving ISO 6 Grade accuracy.

Load Transfer Efficiency in Helical Configurations

When teeth mesh, the angled connection makes a slide part that moves. This is what makes Helical Gear Wheels different from spur designs, which only have rolling contact. Even though this causes a little more contact, the trade-off is big improvements in noise and tremor reduction. Extreme Pressure formulations must be carefully used to lubricate the sliding action to avoid micro-pitting and scuffing. This is especially important in high-load industrial settings where contact loads are higher than 1,500 MPa.

Applications of Helical Gear Wheels in Modern Machinery

Industrial Machinery: Powering Manufacturing Excellence

Helical Gear Wheels power machine tool spindles in CNC machining centers and automated production lines. Spindle rotation accuracy and vibration control directly affect part quality. Smooth power delivery prevents resonance that would compromise surface finish or dimensional tolerances. Compressor systems benefit from continuous power transmission without pulsation, reducing mechanical stress on seals and bearings. Chemical processing plants use helical setups for conveyors, mixers, and extruders handling power above 500 horsepower.

Mining Operations: Surviving Extreme Conditions

Mining represents the most demanding environment for mechanical components. Helical Gear Wheels in crusher drives, ball mill reducers, and excavator swing systems withstand temperature extremes and shock loads. Better load distribution prevents catastrophic tooth fracture that would halt production requiring expensive emergency repairs. Conveyor drives and ventilation systems operate continuously with limited maintenance access. Proper Helical Gear Wheel selection extends service life, distributing contact stress across larger effective tooth surface area.

Aerospace Applications: Meeting Stringent Reliability Standards

Aerospace transmissions require exceptional power-to-weight ratios and absolute reliability. Helical Gear Wheels meeting aerospace standards serve helicopter main rotor gearboxes and control systems where failure has catastrophic consequences. Weight savings from optimized tooth geometry and nickel-chromium-molybdenum alloys meet performance goals without compromising structural margins. Materials like 18CrNiMo7 with case carburizing and precision grinding ensure dimensional stability and contact wear resistance across thermal cycles from -55°C to 125°C.

Comparing Helical Gear Wheels with Other Gear Types for Optimal Selection

Helical Versus Spur: Balancing Complexity and Performance

Spur gears are simpler, produce only radial loads simplifying bearing selection, but cause impact loading with noise often exceeding 85 dB in high-speed applications. Instantaneous load transfer creates vibration harmonics causing resonance in connected structures. Helical designs eliminate these issues through gradual engagement, reducing noise 10–15 dB compared to equivalent spur gears. Higher contact ratio (2.0+ versus 1.2–1.6 for spur) enables greater load capacity. Axial thrust requires thrust bearings or double-helical designs.

Comparing Helical with Bevel and Worm Gear Alternatives

Bevel gears transmit power at angles (typically 90°) when shaft direction changes are required. Straight bevel gears resemble spur; spiral bevel teeth curve like helical designs providing similar smoothness. Worm gears offer high reduction ratios in compact packages with self-locking capability suitable for lifting applications. However, sliding contact causes 50–70% efficiency versus 95–98% for helical sets. Helical designs are preferred for continuous-duty applications requiring efficient power transmission.

Procurement Guide: Sourcing and Purchasing Helical Gear Wheels

Evaluating Supplier Capabilities and Certifications

Getting Helical Gear Wheel components that work well starts with carefully evaluating the suppliers. Quality management certifications like ISO 9001 give you a basic idea of how well the manufacturing process is controlled, but you should look into the specific skills of the gear you're interested in more. Potential providers should show that they have high-precision machining tools, such as CNC gear hobbing machines, gear grinding tools, and coordinate measuring machines to check the shape of the teeth. Another important skill is having heat treatment tools. To get certain case levels without distortion during the carburizing process, controlled atmosphere ovens and set methods are needed. When suppliers don't have their own heat treatment facilities, they often hire someone else to do it. This can cause problems with schedules and quality control that can affect how well the parts work. Our fully automated gear grinding machines, high-precision CNC gear machining centers, and smart heat treatment production lines are all part of YIZHI MACHINERY's vertically integrated manufacturing. This wide range of skills lets us keep a tight grip on the whole process, from the raw materials to the final inspection. This makes sure that the quality is the same from one production run to the next and stops freelancers from blaming each other when quality problems happen.

Standard Versus Custom Gear Solutions

Helical Gear Wheel components that are already made are good for uses with standard specs and low performance needs. Standard gears have faster lead times and lower unit costs because of economies of scale. This makes them a good choice for setups that don't need as much work. When standard products can't meet performance goals, room limits, or interface needs, custom gear design becomes necessary. Custom engineering is needed for situations where the center distance, ratios, or materials are not normal. The customization process should start with a thorough talk of the needs that includes working conditions, load profiles, projected service life, and limitations on integration. We are experts at making custom gear, and we can help with the planning process from the first idea to the production plans. Our research team works with customers to find the best specs by balancing the need for efficiency with the ability to make the product and the cost. With module options ranging from 0.5 to 50 and fully changeable tooth numbers, helix angles, and materials, we can solve transmission problems that standard parts can't. Production numbers can range from a single test unit to a large volume of units. This gets rid of the minimum order requirements that make it hard to find custom components.

Understanding Lead Times and Production Scheduling

Setting realistic production deadlines keeps the plan from getting thrown off by equipment builds or repair turnarounds. Standard Helical Gear Wheels that are in stock usually ship within days, but special gears usually take 35 to 60 days to make from the time the order is confirmed until they are delivered. This schedule includes getting the materials, heat treating them in stages with controlled cooling rates, carefully cutting them out, and following quality checking steps to make sure the dimensions are correct and the material has the right properties. Sometimes, urgent needs can be met by expedited production, but speeding up important steps like heat treatment or finish grinding could lower the quality of the component. Procurement professionals should talk to possible suppliers early on in the project timeline, especially for custom gears that need design changes or sample testing before they can be committed to production. Our clear production progress updates keep clients informed throughout the whole manufacturing process. Milestone alerts cover receiving the materials, finishing the machining, heat treating, and final testing. This level of visibility helps with planning later on and stops shocks that could throw off assembly plans.

Future Trends and Innovation in Helical Gear Wheels

Advanced Materials Enhancing Performance Boundaries

Materials science keeps making Helical Gear Wheels work better and better. Alloys that are vacuum-melted and have finer grain structures and less inclusion content are better at resisting wear. This means that they can handle higher contact loads and last longer. Some surface engineering methods, like shot peening, add good compressive stresses that stop cracks from starting. At the same time, advanced coatings lower friction and wear in situations where there is border lubrication. Rapid development of complex gear shapes could be possible with additive manufacturing. However, current metal printing technologies have not yet reached the level of surface finish and physical accuracy needed for production of Helical Gear Wheels. Eventually, hybrid methods that combine printed near-net shapes with standard finishing steps might cut down on material waste and the time needed to machine big module gears.

Industry 4.0 Integration and Smart Manufacturing

Connected manufacturing systems that keep an eye on process factors in real time are changing the way gears are made thanks to digital change. When CNC machining centers have in-process measurement, they automatically account for tool wear, so tight tolerances are kept even over long production runs. Statistical process control programs find differences that are likely to happen before they make parts that don't meet standards. This cuts down on waste and extra work. Predictive maintenance systems look at vibration patterns and the state of the lubrication to guess how long installed gears will last. This lets you change them based on their condition, which saves money on maintenance costs. Internet-connected sensors send operational data from far away sites. This lets engineering teams connect performance in the field with manufacturing factors and keep improving specifications.

Sustainability and Circular Economy Considerations

As companies try to reach their green goals, environmental concerns are becoming more and more important in their purchasing decisions. Transmission systems that use less energy lose less power, which directly lowers operating carbon footprints. When choosing materials, recyclability is becoming more and more important. Manufacturers are writing down the metal compositions to make later recovery easier. By repairing old gears with steps like weld growth and re-machining, remanufacturing programs make parts last longer. While it doesn't work for all types of damage, remanufacturing can save you a lot of money and help the environment compared to making something from scratch if the core parts are still in good shape. Forward-thinking procurement plans should look at providers that offer services that go beyond just supplying the parts.

Conclusion

Choosing the right Helical Gear Wheel has a big effect on how well machines work, how reliable they are, and how much they cost to run in industries like mining, aircraft, and industrial. Helical Gear Wheel designs have measured benefits over other types of gears in terms of noise reduction, vibration control, and load capacity. This is because the teeth engage gradually. To be good at buying, you need to know how design factors like helix angle and material choice affect each other, look at a supplier's skills beyond price quotes, and weigh the pros and cons of standard vs. custom solutions based on the needs of the application. As digitalization and new materials make production methods better, Helical Gear Wheels will keep changing to meet higher performance standards and support environmental goals. When procurement workers understand these technical and strategic issues, they can help their companies get the most out of their tools in terms of both performance and total cost of ownership.

FAQ

1. What determines the service life of a helical gear wheel?

Contact stress cycles that cause surface staining and twisting stress at the tooth root determine how long the service life will be. ISO 6336 calculation standards guess how long something will last based on its features, how it was heated, how much weight it is under, and how many times it is used. Proper alignment and lubrication greatly increase operating life by stopping wear before it's time.

2. How does helix angle affect operational noise?

When the helix angle is bigger, the contact gap between the teeth is bigger, which greatly reduces noise and vibration. Most of the time, a 30° helix is 10–12 dB quieter than spur gears of the same size. But when slopes get bigger, axial thrust gets bigger too. To handle these forces well, you need stronger bearing setups.

3. Can helical gears replace spur gears directly?

Helical Gear Wheels create axial force that some bearings may not be able to handle, so direct repair isn't always possible. Most of the time, housing changes or bearing upgrades are needed. Before the replacement, the shaft and bearing system must be checked to make sure they can handle more weight.

Partner with YIZHI MACHINERY for Superior Helical Gear Wheel Solutions

YIZHI MACHINERY makes Helical Gear Wheels that are precisely designed to meet the exact needs of industrial machinery, mining operations, and aerospace uses. As a well-known Helical Gear Wheel maker with fifteen years of experience, we offer ISO-certified quality management along with a wide range of customization options to meet your specific transmission needs. Our state-of-the-art production facility has high-precision CNC gear machining centers and automatic grinding equipment. This lets us make gears with helix angles ranging from 5° to 45° and surface hardness levels that meet your exact needs. We know that people who work in buying need partners they can trust to keep their promises. Our 35–60 day production schedules, real-time tracking of progress, and unique packaging make sure that your parts come on time and undamaged. Our minimum order size is flexible enough to fit projects of any size, from a single sample to mass production. Get in touch with our expert team at sales@yizmachinery.com to talk about your needs and find out how our design advice, low prices, and one-year warranty can help you reach your operational goals.

References

1. Budynas, Richard G., and J. Keith Nisbett. Shigley's Mechanical Engineering Design, 11th Edition. McGraw-Hill Education, 2019.

2. Dudley, Darle W. Handbook of Practical Gear Design and Manufacture, 2nd Edition. CRC Press, 2012.

3. International Organization for Standardization. ISO 6336: Calculation of Load Capacity of Spur and Helical Gears. Geneva: ISO, 2019.

4. Radzevich, Stephen P. Dudley's Handbook of Practical Gear Design and Manufacture, 4th Edition. CRC Press, 2021.

5. Stadtfeld, Hermann J. Advanced Bevel Gear Technology: Gear Manufacturing and Gear Inspection. The Gleason Works, 2000.

6. Townsend, Dennis P. Dudley's Gear Handbook: The Design, Manufacture, and Application of Gears, 2nd Edition. McGraw-Hill Professional, 1992.
