Inner Ring Gear

Inner Ring Gear - High-Precision Planetary Gear Solutions

Henan Yizhi Machinery's Inner Ring Gear conveys enterprise-level accuracy for heavy-duty transmission frameworks. With 15 a long time of fabricating ability and ISO certification, our arrangements highlight progressed metallurgy capabilities traversing 12 fabric grades counting 20CrMnTi and SAE4340. Engineered to ISO 6 Grade accuracy with surface hardness coming to 58-62 HRC, our inside ring gears accomplish predominant stack dispersion through specialized carburizing and acceptance solidifying forms. Custom module ranges from 0.5-50 with adaptable helix points guarantee ideal execution in planetary reducers, winches, and machine instrument applications.

What is an Inner Ring Gear?

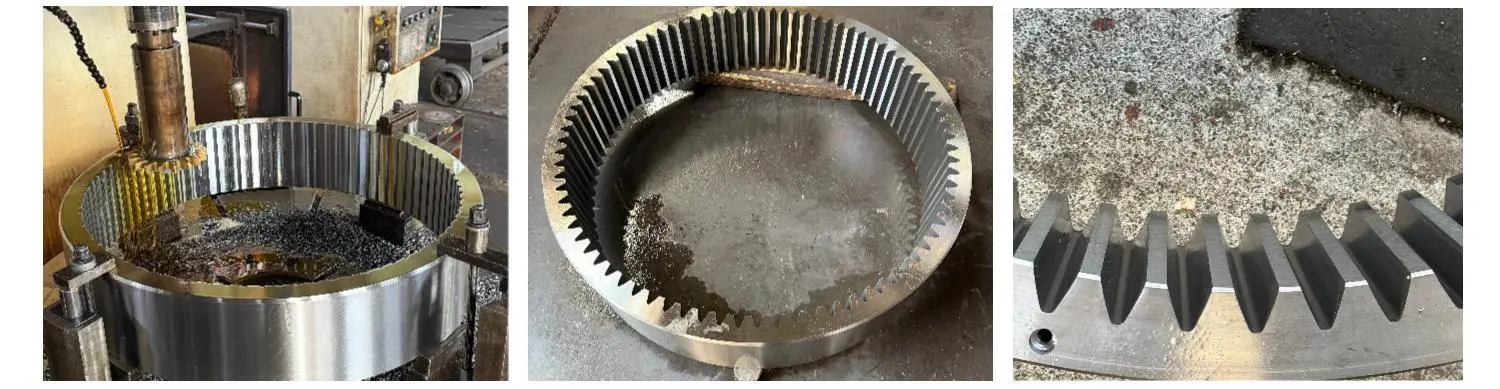

The item speaks to a specialized component where equip teeth are absolutely cut on the inner circumference of a round and hollow ring. Not at all like outside gears, this arrangement permits numerous planet gears to lock in at the same time with the inside teeth.

This interesting plan understands basic mechanical challenges in present day industry. You get critical torque duplication inside compact spaces where conventional parallel-shaft gearboxes would be as well bulky. The stack dissemination over numerous engagement focuses decreases stretch concentrations and expands operational life.

The concave tooth profile makes prevalent contact characteristics compared to outside adapt networks. This comes about in lower contact stretch and improved weariness resistance for your heavy-duty applications.

Technical Specifications

Key Features and Advantages

Superior Material Engineering

Our inner ring gears utilize premium low-carbon amalgam steels with specialized warm treatment forms. The carburizing treatment makes a solidified surface layer whereas keeping up a bendable center for affect absorption.

Compact Design Excellence

The inner work setup gives uncommon control thickness. You accomplish higher torque transmission in littler bundles compared to ordinary outside adapt systems.

Enhanced Load Distribution

Multiple planet equip engagement focuses convey loads equitably over the ​​​​​​​Inner Ring Gear teeth. This decreases person tooth stretch and avoids untimely wear in requesting applications.

Flexible Customization Options

We suit assorted prerequisites through:

• Custom tooth checks and module specifications
• Variable helix points from 5° to 45°
• Multiple fabric grades for diverse environments
• Surface hardness optimization based on your application needs

Low Minimum Order Quantities

Single-item generation capabilities guarantee you get precisely what you require without pointless stock investment.

Industrial Applications

Planetary Gear Reducers

In planetary transmission frameworks, the​​​​​​​ Inner Ring Gear serves as the stationary lodging component. The inner teeth lock in with numerous planet gears at the same time, making tall lessening proportions with extraordinary torque multiplication.

Heavy Construction Equipment

Excavator last drives and bulldozer transmissions depend on inside ring gears for extraordinary stun stack resistance. The secured inner work environment decreases defilement compared to outside equip arrangements.

Machine Tool Feed Mechanisms

Precision machining applications request precise situating and smooth movement exchange. Inside ring equip arrangements give the solidness and backfire control required for high-precision fabricating equipment.

Hoisting Equipment Systems

Crane and winch applications advantage from the tall torque capacity and compact bundling of inside equip courses of action. The​​​​​​​ Inner Ring Gear empowers solid lifting execution in space-constrained installations.

Manufacturing Process

Design and Engineering Phase

Our specialized group works with your determinations to optimize adapt geometry. We give nitty gritty plan drawings and specialized interview to guarantee culminate integration with your systems.

Advanced Production Capabilities

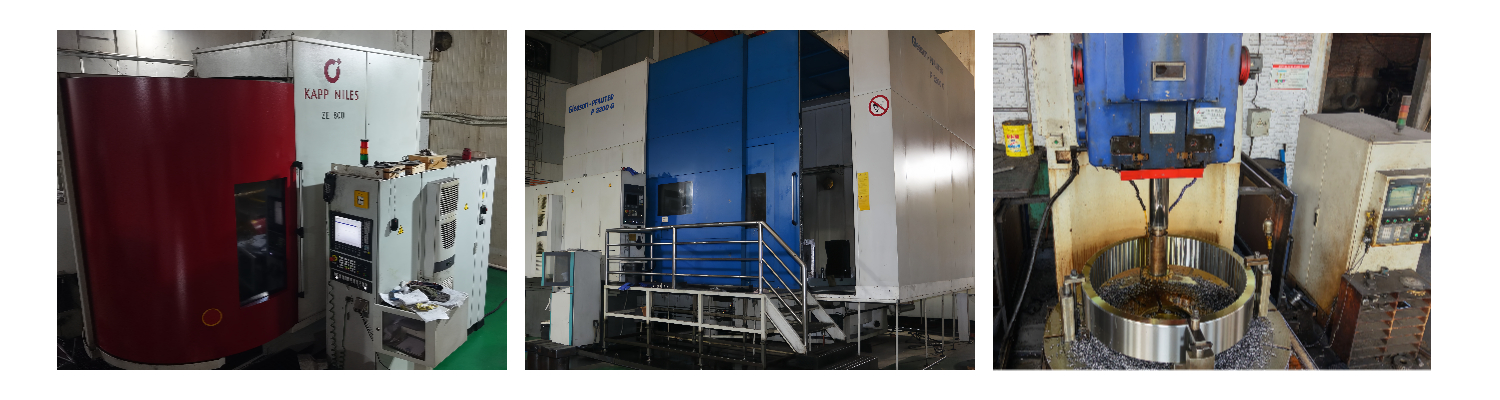

State-of-the-art CNC equip machining centers and robotized crushing hardware guarantee steady accuracy over all generation runs. Our shrewdly warm treatment lines convey uniform fabric properties all through each component.

Quality Assurance

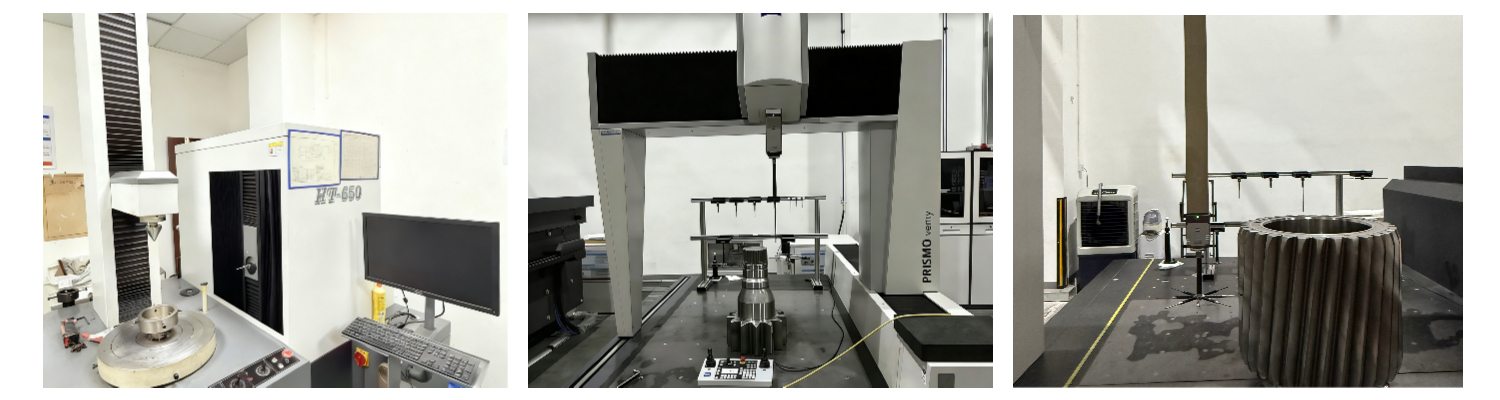

Every product undergoes comprehensive review utilizing high-accuracy estimation rebellious. We confirm dimensional exactness, surface wrap up, and fabric properties some time recently packaging.

Shipping and Logistics Excellence

Protected Packaging System

Specialized padding liners and custom wooden beds secure sensitive adapt teeth amid transport. Our comprehensive bundling approach keeps up cargo harm rates underneath 0.1%.

Flexible Delivery Options

Multi-channel transport arrangements counting ocean cargo, discuss cargo, and rail alternatives guarantee ideal conveyance timing. We coordinate transport strategies to your particular volume and timeline requirements.

Real-Time Tracking

Complete shipment perceivability from plant stacking through client conveyance. You get live upgrades at each organize for total peace of mind.

Frequently Asked Questions

Q: What materials do you recommend for high-load applications?

A: For demanding applications, we recommend 20CrMnTi or SAE4340 with carburizing treatment. These materials provide excellent surface hardness (58-62 HRC) while maintaining core toughness for impact resistance.

Q: Can you accommodate non-standard module requirements?

A: Yes, our custom manufacturing capabilities handle module specifications from 0.5 to 50. We work with your exact requirements to ensure optimal performance in your specific application.

Q: What delivery times should I expect?

A: Standard delivery ranges from 35-60 days depending on complexity and quantity. We provide detailed production schedules and progress updates throughout manufacturing.

Q: Do you offer technical support during installation?

A: Absolutely. Our technical team provides comprehensive support including installation guidance, troubleshooting assistance, and optimization recommendations. We maintain ongoing support throughout your equipment's operational life.

Q: What quality certifications do your products meet?

A: All products are manufactured under ISO certification standards. We maintain strict quality control processes and provide detailed inspection reports with each shipment.

Q: Can you handle prototype or single-piece orders?

A: Yes, we accept single-item production orders. Our flexible manufacturing approach accommodates both prototype development and full production requirements.

Contact Us

Ready to use the Inner Ring Gear to optimize your transmission systems? Contact our technical team at sales@yizmachinery.com for expert consultation and custom solutions.
