Internal Planetary Gear
2.Material:45#steel，20CrMnTi，40CrNiMo，SAE4340，42CrMo，AISI4140，18CrNiMo7，17CrNiMo6，20CrNiMo，AISI8620，20CrNi2Mo，SAE4320
3.Heat Treatment:Carburising，quenching and tempering，induction hardening
4.Precision Grade:ISO 5-6 Grade
5.Tooth Grinding:Yes
6.Processing Techniques:Cutting，hobbing，milling，grinding
7.Load Capacity:High
8.Applications:Planetary gear reducers，winches，machine tool feed mechanisms，transmission systems for lifting equipment
- Product Description
Internal Planetary Gear - Precision Engineered for Maximum Performance
When you need superior torque transmission in a compact design, our Internal Planetary Gear delivers exceptional performance with enterprise-level precision. Henan Yizhi Machinery's product systems achieve ISO 5-6 Grade precision with surface hardness extending 58-62 HRC, advertising modules from 0.5-50 and customizable helix points between 5°-45°. With 15 a long time of fabricating ability and conveyance inside 35-60 days, our comprehensive customization capabilities address specialized boundaries in accuracy pounding whereas assembly multi-industry acquirement requests over planetary equip reducers, winches, and transmission systems.
What Is Internal Planetary Gear?

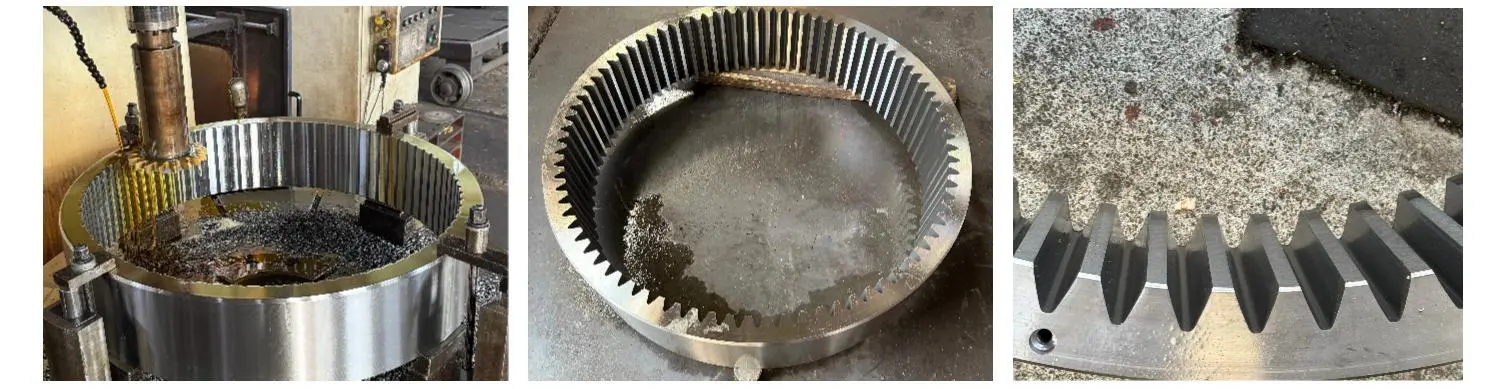

The item moreover known as the ring equip or annulus, highlights teeth cut into the inward circumference of a round and hollow ring. This specialized component networks with outside planet gears that circle around a central sun adapt, making an epicyclic equip prepare system.
Unlike conventional outside gears, the inside plan permits numerous planet gears to share outspread loads, essentially diminishing push on person teeth. This arrangement gives higher contact proportions, coming about in smoother operation with decreased vibration and commotion levels.
The concentric course of action empowers tall lessening proportions and gigantic torque transmission inside a much littler impression than ordinary parallel shaft gearboxes. This makes our item perfect for applications requiring tall control thickness and spatial efficiency.
Key Advantages of Our Internal Planetary Gear Systems
Extremely Compact Structure
Our inside equip plan maximizes torque yield whereas minimizing space prerequisites. You can accomplish the same control transmission in altogether less space compared to conventional adapt systems.
High Transmission Stability
The multi-point contact plan guarantees smooth control exchange with negligible backfire. This solidness is pivotal for accuracy applications requiring reliable performance.
Excellent Load-Bearing Capacity
Multiple planet gears convey loads equally over the ring equip, permitting our frameworks to handle considerable torque loads without compromising durability.
Flexible Gear Ratio Design
We customize adapt proportions to meet your particular application necessities, giving the correct speed decrease and torque increase you need.
Custom Manufacturing Services
Our 15-year generation encounter empowers us to make custom-made arrangements for special applications. We acknowledge moo least arrange amounts and indeed single-item generation runs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Teeth | Customized to requirements |
| Module | 0.5–50 |
| Helix Angle | 5°–45° |
| Surface Hardness | 45-50 HRC, 58–62 HRC |
| Material Options | 45# steel, 20CrMnTi, 40CrNiMo, SAE4340, 42CrMo, AISI4140, 18CrNiMo7, 17CrNiMo6, 20CrNiMo, AISI8620, 20CrNi2Mo, SAE4320 |
| Heat Treatment | Carburizing, quenching and tempering, induction hardening |
| Precision Grade | ISO 5-6 Grade |
| Processing Techniques | Cutting, hobbing, milling, grinding |
Applications Across Industries
Our Internal Planetary Gear frameworks serve differing applications where unwavering quality and exactness are paramount:
- Planetary Adapt Reducers: Giving compact speed diminishment solutions
- Winches: Conveying tall torque for lifting applications
- Machine Device Nourish Instruments: Guaranteeing exact situating and movement
- Transmission Frameworks for Lifting Hardware: Supporting heavy-duty operations
- Robotics and Robotization: Empowering exact joint actuators and servo systems
- Construction and Mining Apparatus: Controlling last drives and swing mechanisms
- Wind Vitality Frameworks: Overseeing pitch and yaw drive operations
Manufacturing Excellence

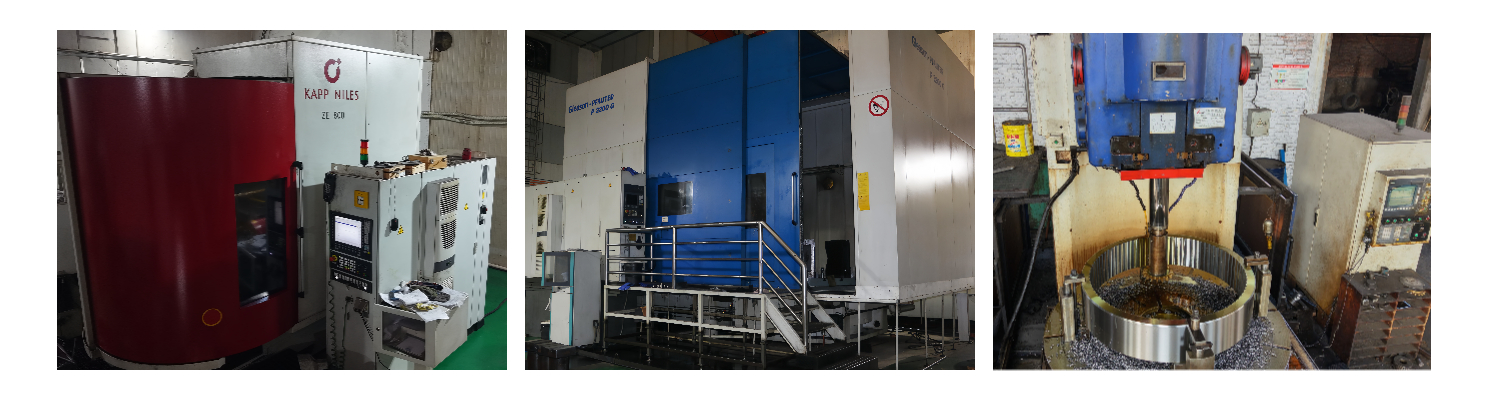

Our state-of-the-art generation office highlights all inclusive driving accuracy fabricating gear. High-precision CNC equip machining centers, completely mechanized equip pounding machines, and brilliantly warm treatment generation lines guarantee reliable quality.
We keep up long-term associations with eminent mechanical designing undertakings, confirmation to our dependable fabricating measures and collaborative approach.
Quality Assurance Process
Our standardized workflow guarantees productive arrange fulfillment:
- Requirement Communication - Understanding your particular needs
- Design Drawings - Making point by point specialized specifications
- Production Preparing - Fabricating with exactness equipment
- Quality Assessment - Thorough testing to meet ISO standards
- Packaging - Custom assurance with harm anticipation guarantee
- Transportation - Multi-channel coordinations with visual tracking
Comprehensive Service Support
Pre-sales Bolster: Plan drawings and specialized discussion offer assistance you select the ideal adapt setup for your application.
During Generation: We give tests, synchronized generation advance overhauls, quality review reports, and total coordinations tracking.
After-sales Benefit: One-year guarantee scope with fast reaction and issue determination guarantees your proceeded satisfaction.
FAQ
Q: What materials do you use for Internal Planetary Gear manufacturing?
A: We use high-grade alloy steels including 45# steel, 20CrMnTi, 40CrNiMo, SAE4340, 42CrMo, AISI4140, 18CrNiMo7, 17CrNiMo6, 20CrNiMo, AISI8620, 20CrNi2Mo, and SAE4320, selected based on your specific load and environmental requirements.
Q: Can you manufacture small quantities or custom designs?
A: Yes, we accept low minimum order quantities and even single-item production. Our comprehensive customization capabilities allow us to create tailored solutions for unique applications.
Q: What precision grades can you achieve?
A: We manufacture to ISO 5-6 Grade precision standards, ensuring minimal runout and pitch deviations for optimal performance in demanding applications.
Q: How do you ensure product quality during transportation?
A: We employ shock-absorbing cushioning liners with custom wooden pallets, reducing transport damage rates to below 0.1%. Real-time tracking provides complete visibility throughout delivery.
Q: What is your typical delivery timeframe?
A: Standard delivery is 35-60 days, depending on customization requirements and order complexity. We provide regular progress updates throughout production.
Contact Us
Ready to discuss your Internal Planetary Gear requirements? Email us at sales@yizmachinery.com for expert technical consultation and competitive quotations.
