Precision Bevel Gear
2.Material:45#steel，20CrMnTi，40CrNiMo，SAE4340，42CrMo，AISI4140，18CrNiMo7，17CrNiMo6，20CrNiMo，AISI8620，20CrNi2Mo，SAE4320
3.Processing Techniques:Cutting，hobbing，milling，grinding
4.Gear Profile Type:Gleason
5.Heat Treatment:Carburising，quenching and tempering，induction hardening
6.Precision Grade:ISO 8-9 Grade
7.Load Capacity:High
8.Applications:Steering systems，machine tool spindle drives，compact mechanical transmission systems，agricultural machinery，light industrial equipment
9.Production Time:35–60 days
- Product Description

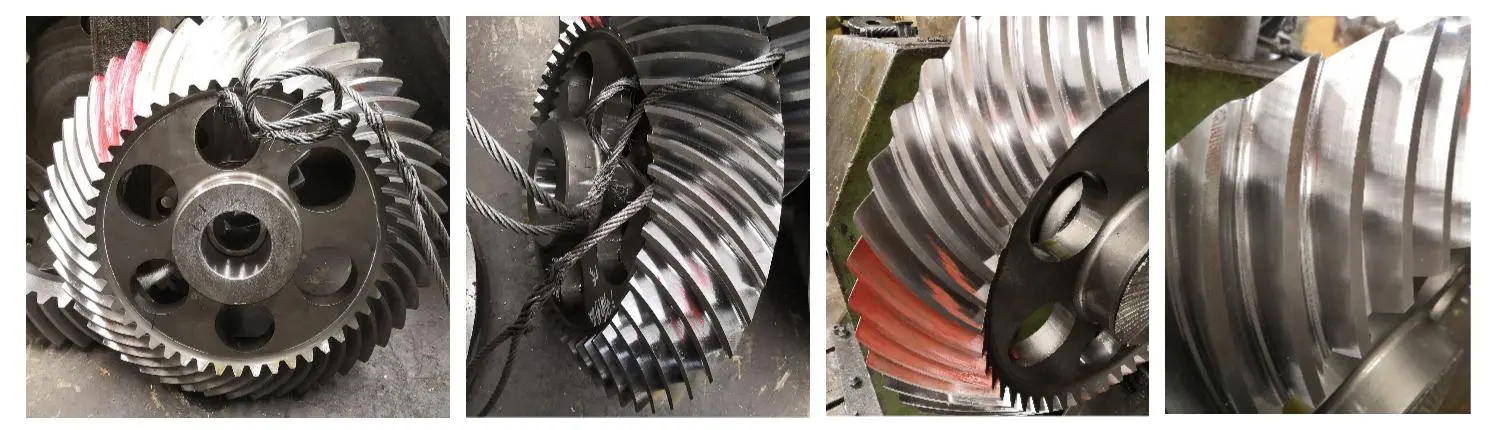

Precision Bevel Gear - Advanced Angular Transmission Solutions
Henan Yizhi Machinery's Precision Bevel Gear conveys enterprise-grade precise transmission arrangements with ISO 8-9 exactness review fabricating. Our 15 a long time of generation involvement empowers us to accomplish surface hardness of 58-62 HRC whereas keeping up transport harm rates underneath 0.1%. With conveyance times of 35-60 days and module ranges from 0.5-50, our gears serve basic applications from aviation incitation frameworks to 5-axis CNC processing heads. Progressed warm treatment forms counting carburizing and acceptance solidifying guarantee ideal stack capacity for your most requesting mechanical applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Number of teeth | Customized |
| Module | 0.5–50 |
| Pressure angle | 14.5°, 20° |
| Surface hardness | 45-50 HRC, 58–62 HRC |
| Material | 45#steel, 20CrMnTi, 40CrNiMo, SAE4340, 42CrMo, AISI4140, 18CrNiMo7, 17CrNiMo6, 20CrNiMo, AISI8620, 20CrNi2Mo, SAE4320 |
| Processing Techniques | Cutting, hobbing, milling, grinding |
| Heat Treatment | Carburizing, quenching and tempering, induction hardening |
| Precision Grade | ISO 8-9 Grade |
| Production Time | 35–60 days |

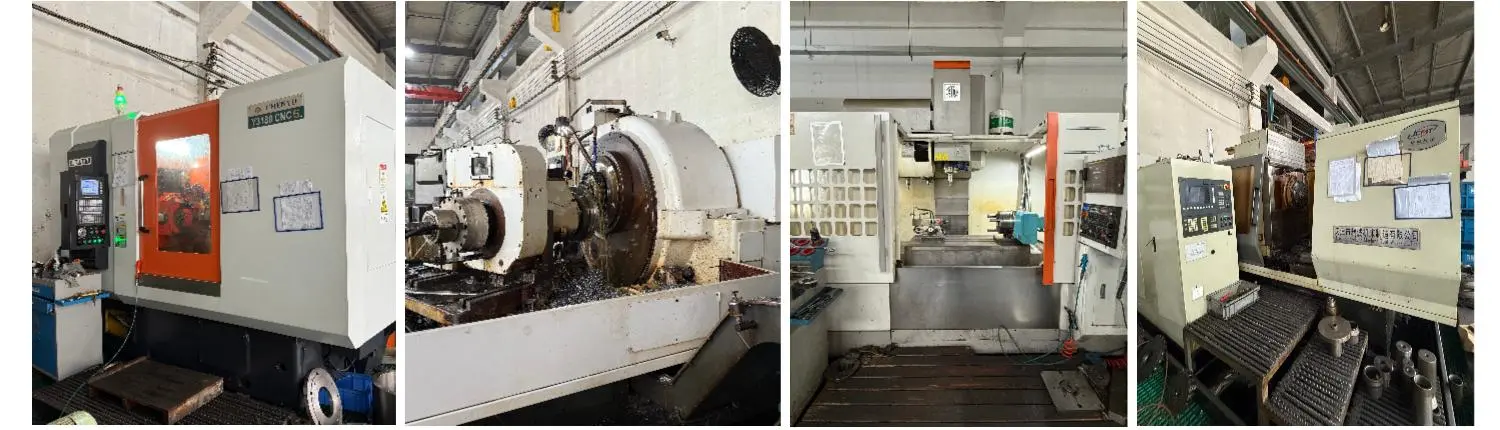

Advanced Manufacturing Excellence
State-of-the-Art Production Capabilities
Our office highlights all inclusive driving exactness fabricating hardware. High-precision CNC adapt machining centers work nearby completely mechanized equip pounding machines. Brilliantly warm treatment generation lines guarantee reliable quality. High-accuracy assessment disobedient confirm each component meets your specifications.
Superior Material Engineering
We utilize premium amalgam steels counting SAE4340 and AISI4140. Progressed warm treatment forms make ideal surface-to-core hardness proportions. Carburizing treatment accomplishes the idealize adjust between surface toughness and center sturdiness. This combination conveys remarkable execution beneath high-load conditions.
Quality Assurance Process
Every Precision Bevel Gear experiences thorough assessment conventions. Facilitate Measuring Machines confirm dimensional exactness. Tooth contact examination guarantees appropriate bearing designs. Single flank roll testing measures transmission mistake to anticipate execution characteristics. Metallurgical confirmation affirms warm treatment effectiveness.
Key Advantages for Your Applications
Adaptable Spatial Design
Our gears handle complex precise transmissions with ease. You can divert control stream at different points whereas keeping up proficiency. Compact plans fit into tight spaces without relinquishing execution. Adaptable establishment choices oblige different mounting requirements.
Precision-Balanced Performance
Balanced transmission proficiency comes to ideal levels through progressed crushing methods. Our product components minimize kinematic transmission mistake. Surface wrap up quality of Ra 0.4μm diminishes grinding and working temperatures. Optimized tooth geometry avoids edge stacking beneath deflection.
Robust Load Management
Strong load-bearing capabilities handle requesting mechanical situations. Tall control thickness empowers littler gearbox plans. Reversible drive capability gives operational adaptability. Stun stack retention ensures associated gear from damage.
Custom Manufacturing Solutions
Low least arrange amounts oblige specialized needs. Single-item generation capabilities serve model necessities. Comprehensive customization addresses special application requests. Multi-industry involvement guarantees we get it your particular challenges.
Industrial Applications
Steering Systems Integration
Automotive and mechanical controlling frameworks depend on our Precision Bevel Gear arrangements. Right-angle control exchange empowers compact directing column plans. Tall halting exactness guarantees responsive vehicle control. Toughness withstands nonstop operation beneath changing loads.
Machine Tool Spindle Drives
CNC machining centers request zero-backlash execution for surface wrap up quality. Our gears handle tall RPM operation with destructive coolant introduction. Exact precise situating keeps up cutting exactness. Vigorous development guarantees long benefit life in generation environments.
Agricultural Machinery Power
Farm hardware faces extraordinary working conditions requiring solid control transmission. Compact structures fit into tight gear spaces. Tall torque capacity handles overwhelming execute loads. Weather-resistant materials withstand open air environments.
Manufacturing Process Excellence
Streamlined Production Workflow
Our standardized handle guarantees proficient arrange fulfillment. Prerequisites discourse clarifies your determinations. Plan drawings capture specialized necessities absolutely. Generation machining utilizes progressed CNC innovation. Quality review confirms compliance some time recently shipment.
Comprehensive Service Support
Pre-sales back incorporates plan drawings and specialized interview. Amid generation, we give test confirmation and advance upgrades. Quality assessment reports record execution characteristics. Real-time coordinations following keeps you educated all through delivery.
Advanced Logistics Solutions
Multi-channel transport choices coordinate your conveyance prerequisites. Ocean cargo handles huge volume orders cost-effectively. Discuss cargo assists critical shipments. China-Europe cargo trains give dependable middle of the road choices. Custom bundling ensures fragile adapt surfaces amid transport.
Frequently Asked Questions
Q: What precision grades can you achieve for bevel gears?
A: We manufacture to ISO 8-9 grade precision standards, suitable for demanding industrial applications requiring high accuracy and smooth operation.
Q: What materials do you recommend for high-load applications?
A: For heavy-duty service, we recommend SAE4340 or AISI4140 with carburizing heat treatment to achieve 58-62 HRC surface hardness while maintaining core toughness.
Q: Can you handle small quantity custom orders?
A: Yes, we accept low minimum order quantities and even single-item production for prototypes or specialized applications.
Q: What is your typical delivery time for custom gears?
A: Standard delivery time ranges from 35-60 days depending on complexity and quantity. We provide regular progress updates throughout production.
Q: How do you ensure quality during manufacturing?
A: We employ comprehensive quality control including CMM inspection, tooth contact analysis, and metallurgical verification to ensure every gear meets specifications.
Contact Us
Ready to use the Precision Bevel Gear to enhance your machinery with precision-engineered bevel gears? Contact our technical team at sales@yizmachinery.com for expert consultation and custom solutions.
