Machining Spline on Shaft
2.Material:45#steel，20CrMnTi，40CrNiMo，SAE4340，42CrMo，AISI4140，18CrNiMo7，17CrNiMo6，20CrNiMo，AISI8620，20CrNi2Mo，SAE4320
3.Load Capacity:Strong
4.Precision Grade:ISO 6 Grade
5.Manufacturing Processes:Forging，cutting，hobbing，milling，grinding
6.Heat Treatment:Carburising，quenching and tempering，induction hardening
7.Applications:Machine tool spindles，precision instrument transmission systems，robotic joints，and other equipment demanding high precision and compactness
8.Production Time:35–60 days
- Product Description

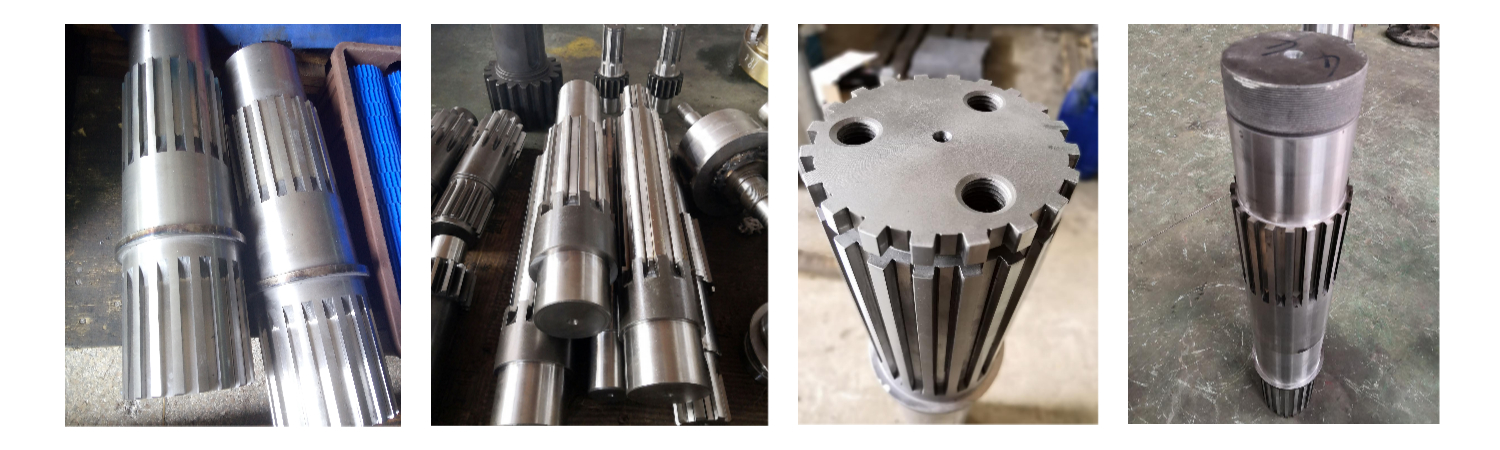

Machining Spline on Shaft - Precision Transmission Solutions
At Henan Yizhi Machinery Co., Ltd., our Machining Spline on Shaft services deliver enterprise-grade precision transmission components with ISO 6 Grade accuracy. With 15 a long time of generation involvement, we make high-torque thickness spline shafts including zero association backfire and remarkable transmission inflexibility. Our progressed fabricating forms incorporate fashioning, hobbing, processing, and exactness crushing, empowering us to handle modules from 0.5 to 50 with customizable tooth arrangements. Conveyance timeframes extend from 35-60 days, backed by comprehensive quality confirmation and harm anticipation bundling that keeps up transport harm rates underneath 0.1%.
What is Machining Spline on Shaft?
The item is a accuracy fabricating handle that makes longitudinal edges or teeth on control transmission shafts. Not at all like basic keyed associations, this progressed machining procedure guarantees fundamentally fitting with mating components like gears, pulleys, or couplings.
Professional spline machining strategies incorporate hobbing, forming, broaching, and rolling. Each strategy addresses particular industry challenges:
- Torque Disappointment Relief: Conveys loads over different teeth, avoiding shearing beneath tall stress
- Vibration Lessening: Involute spline geometries accomplish self-centering impacts that minimize outspread runout
- Fretting Weakness Anticipation: Accuracy machining diminishes infinitesimal developments between mating parts
The handle includes modern hardware counting high-precision CNC adapt machining centers, computerized crushing machines, and cleverly warm treatment generation lines. This guarantees steady quality over differing applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Teeth | Customized |
| Module Range | 0.5 – 50 |
| Helix Angle | 5° – 45° |
| Surface Hardness | 45-50 HRC, 58-62 HRC |
| Precision Grade | ISO 6 Grade |
| Load Capacity | Strong |
| Production Time | 35 – 60 days |
Materials & Heat Treatment
We work with premium materials including 45# steel, 20CrMnTi, 40CrNiMo, SAE4340, 42CrMo, AISI4140, 18CrNiMo7, 17CrNiMo6, 20CrNiMo, AISI8620, 20CrNi2Mo, and SAE4320. Our warm treatment forms include carburizing, extinguishing and hardening, and acceptance solidifying to accomplish ideal mechanical properties.
Manufacturing Process Excellence
Our standardized workflow guarantees steady quality:
- Requirements Communication - Specialized interview and plan optimization
- Design Drawings - Point by point designing documentation
- Production Handling - Progressed machining utilizing producing, cutting, hobbing, processing, and grinding
- Quality Assessment - Thorough testing utilizing high-accuracy review instruments
- Packaging - Custom wooden beds with shock-absorbing padding liners
- Transportation - Multi-channel transport with visual following capabilities
Key Advantages
Our Machining Spline on Shaft solutions offer exceptional benefits:
- High Transmission Unbending nature: Zero association backfire guarantees exact control transfer
- Compact Plan: Decreased establishment impression for space-constrained applications
- Cost-Effective: Moo get together and upkeep costs all through operational lifecycle
- High Productivity: Negligible control misfortune amid transmission
- Flexible Orders: Moo least amounts with single-item generation capabilities
- Custom Arrangements: Custom-made determinations for special application requirements
Industry Applications
Automotive Powertrain & EV Transmissions: Our spline shafts handle moment torque conveyance in electric vehicles working up to 20,000 RPM whereas minimizing clamor, vibration, and harshness.
Aerospace Incitation Frameworks: Fold actuators and turbine motor embellishment drives require Lesson 5 fit resistances to avoid backfire in extraordinary temperature situations (-50°C to 150°C).
Heavy-Duty Water powered Pumps: PTO drive shafts for agrarian and mining hardware withstand extreme stun loads and grating situations through specialized surface solidifying treatments.
Machine Device Axles: High-precision transmission frameworks requesting remarkable precision and compact installation.
Robotic Joints: Accuracy instrument transmission frameworks requiring zero backfire for precise positioning.
Quality Assurance

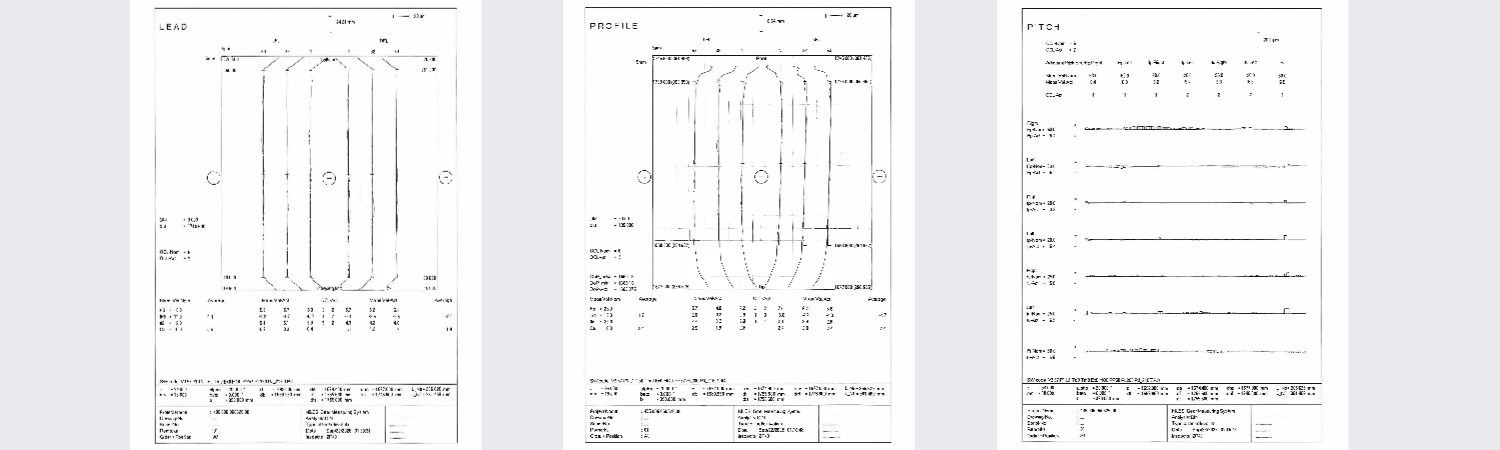

Our ISO-certified facility maintains strict adherence to international standards including ISO 4156, ANSI B92.1, and DIN 5480. Every component experiences comprehensive assessment utilizing high-accuracy rebellious some time recently shipment.
We give one-year guarantee scope with fast reaction and issue determination. Our real-time following framework offers live upgrades from plant stacking to client conveyance, guaranteeing total straightforwardness all through the supply chain.
Frequently Asked Questions
Q: What's the difference between rolled and hobbed spline machining?
A: Spline rolling creates teeth through cold forming, resulting in stronger grain structure and faster cycle times - ideal for high-volume automotive applications. Spline hobbing cuts material away, offering higher flexibility for prototyping and complex profiles where rolling dies are cost-prohibitive.
Q: How do you control distortion after heat treatment?
A: We use press quenching to constrain shafts during cooling or leave 0.1-0.2mm material allowance for hard spline grinding or skiving as final finishing operations to restore dimensional tolerance.
Q: Which standard should I specify for hydraulic applications?
A: Most hydraulic interfaces follow ANSI B92.1 (12/24 or 16/32 pitch) in US markets, or DIN 5480 in European markets. Always match your mating coupler's standard.
Q: Can you machine splines on hardened shafts?
A: For shafts above HRC 45, conventional hobbing isn't suitable. We use hard hobbing with carbide skiving tools or spline grinding for hardened shafts (HRC 50+), delivering highest precision despite increased complexity.
Q: What causes premature spline wear?
A: Fretting corrosion from misalignment or inadequate lubrication is most common. We solve this by machining crowning on spline teeth or applying specialized coatings like manganese phosphate.
Contact Us
Ready to use the Machining Spline on Shaft to optimize your transmission systems? Contact our technical team at sales@yizmachinery.com for custom spline shaft solutions.
