Helical Gear Grinding: Precision Manufacturing for High-Performance Transmission Systems

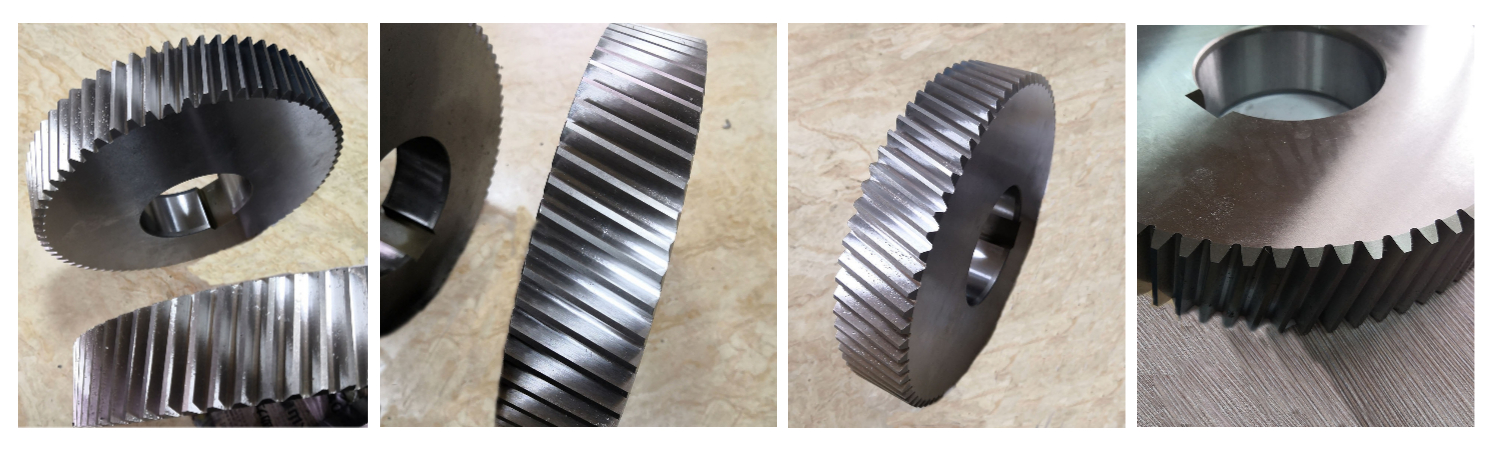

Henan Yizhi Machinery delivers enterprise-grade Helical Gear Grinding arrangements with 15 a long time of fabricating skill. Our exactness crushing accomplishes ISO 5-6 review exactness with surface hardness extending from 45-50 HRC to 58-62 HRC. We prepare modules from 0.5-50 with customizable helix points of 5°-45°. Our progressed fabricating office highlights high-precision CNC machining centers and robotized crushing hardware, guaranteeing conveyance inside 35-60 days. With transport harm rates underneath 0.1% and comprehensive quality following, we serve machine apparatus axles, compressors, and exactness transmission applications over numerous industries.

Technical Specifications

Why Choose Our Grinding Solutions?

Superior Manufacturing Capabilities

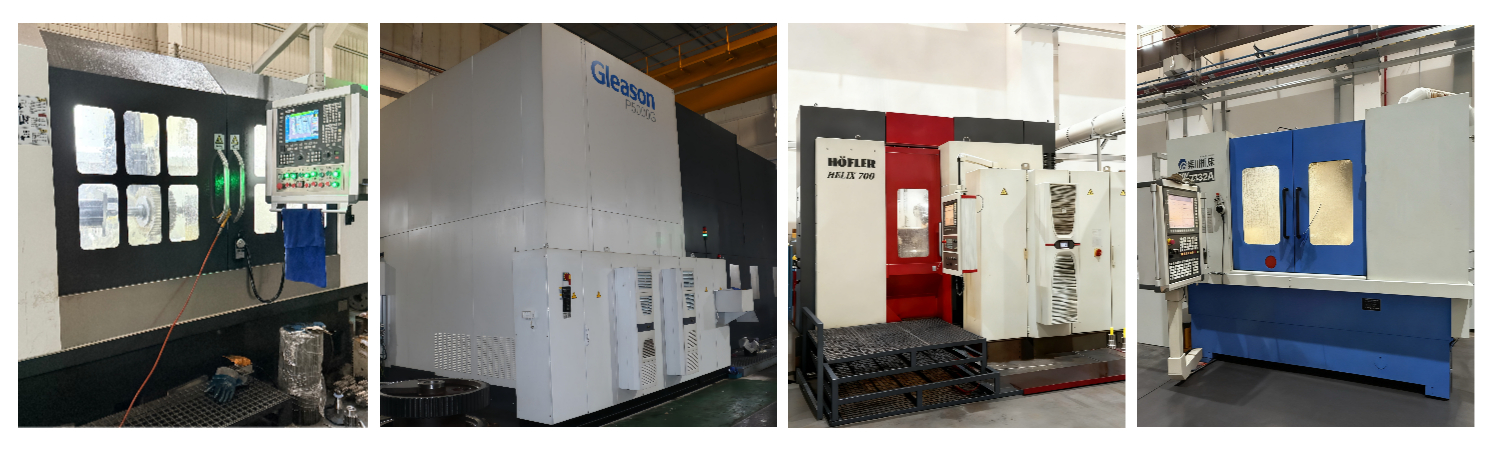

Our office houses universally driving accuracy gear. High-precision CNC adapt machining centers work nearby completely computerized crushing machines. Cleverly warm treatment generation lines guarantee steady quality. High-accuracy assessment disobedient approve each specification.

Enhanced Performance Features

Helical Gear Grinding conveys smooth transmission with essentially decreased commotion levels. The upgraded load-bearing capacity makes these gears culminate for high-speed applications. You advantage from custom administrations custom-made to your correct prerequisites. We acknowledge moo least arrange amounts, counting single-item production.

Quality Assurance Process

Every equip takes after our standardized workflow. Necessities discourse leads to point by point plan drawings. Generation machining keeps up strict resistances. Quality assessment confirms all details. Proficient bundling ensures your venture. Dependable transportation guarantees secure delivery.

Applications Across Industries

Electric Vehicle Powertrains

EV engines work at extraordinary speeds up to 20,000 RPM. Indeed minuscule equip mistakes make capable of being heard crying. Our accuracy pounding creates noiseless gears with specialized flank adjustments. This guarantees noise-free operation whereas taking care of moment torque conveyance from electric motors.

Wind Energy Systems

Massive planetary gearboxes confront variable wind loads in cruel seaward situations. Upkeep get to is about incomprehensible. Our large-module profile pounding maximizes load-carrying capacity. The handle makes compressive remaining stresses that stand up to breaking for 20+ year benefit life.

Industrial Automation

Robotic arms require zero-backlash and tall positional exactness. Idealize tooth coinciding minimizes transmission mistake. This permits exact movement control in mechanized get together lines. Your generation productivity increments significantly.

Advanced Manufacturing Process

Precision Control

Our Helical Gear Grinding achieves DIN 3962 Quality Class 4 or way better. We control profile blunders, lead mistakes, and aggregate pitch deviations. Surface harshness values regularly reach underneath 0.4 μm. Super-finishing choices can accomplish Ra < 0.2 μm when required.

Custom Modifications

The prepare permits think micro-geometry adjustments. Tip help, root help, and delegated compensate for framework avoidances beneath stack. Progressed kinematics adjust predisposition blunders characteristic to helical geometries. This guarantees ideal execution beneath real-world conditions.

Material Expertise

We work with assorted steel grades to coordinate your application prerequisites. Warm treatment forms incorporate carburizing for surface hardness and center sturdiness. Acceptance solidifying gives exact hardness zones. Extinguishing and treating adjust toughness with machinability.

Service Excellence

Comprehensive Support

Pre-sales benefit incorporates plan drawings and specialized interview. Amid generation, you get tests and synchronized advance overhauls. Quality assessment reports archive each detail. Real-time coordinations following gives total visibility.

Damage Prevention

Custom bundling addresses the sensitive nature of accuracy gears. Shock-absorbing padding liners avoid scratches and tooth surface harm. Custom wooden beds guarantee cargo astuteness. Our transport harm rate remains underneath 0.1%.

Flexible Logistics

Multi-channel transport combines ocean cargo, discuss cargo, and China-Europe cargo trains. We coordinate arrangements to your arrange volume and conveyance necessities. Exact and controllable travel times meet your generation schedules.

Frequently Asked Questions

Q: What's the difference between Profile Grinding and Continuous Generating Grinding?

A: Continuous Generating Grinding using a worm wheel offers faster production for high-volume automotive applications. Profile Grinding provides higher flexibility and accuracy for large-module gears like those in wind turbines.

Q: How do you prevent grinding burn during processing?

A: We optimize the Specific Material Removal Rate through controlled feed rates and increased dress frequency. High-pressure coolant directs into the grinding contact zone. Porous vitrified bond wheels maintain consistent cutting action.

Q: Can you correct bias twist without special software?

A: Bias twist correction requires specific CNC software capable of diagonal grinding. This shifts the wheel axially during the stroke to alter the contact line and neutralize the twist effectively.

Q: What's the typical stock removal allowance?

A: We maintain 0.10mm to 0.15mm per flank to optimize cycle time and wheel life. This minimizes thermal damage risk while ensuring efficient material removal.

Q: Do you grind the gear root?

A: For high-stress applications in aerospace or racing, we recommend grinding root fillets. This removes heat-treat imperfections and improves bending fatigue strength using specialized wheel dressing techniques.

Contact Us

Ready to enhance your transmission systems? Contact us at sales@yizmachinery.com for custom Helical Gear Grinding solutions today.
